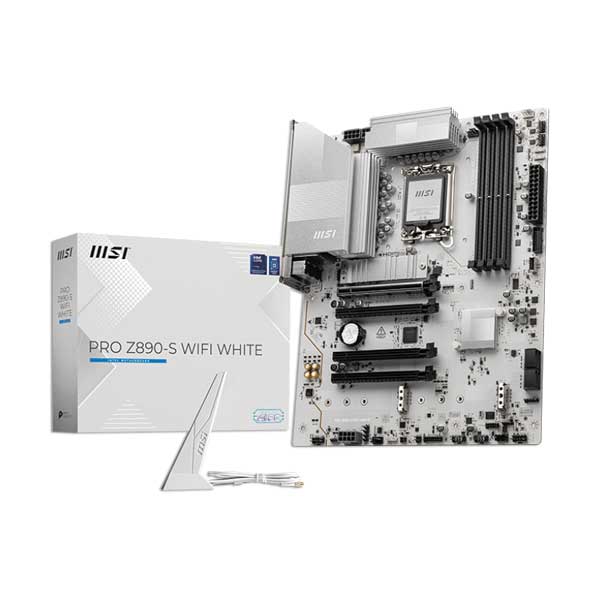

MSI Z890-S WIFI WHITE Intel LGA 1851 ATX Gaming Desktop Motherboard

SKU: Z890-S WIFI WHITE
MFR#:
Z890-S WIFI WHITE

Regular price $239.99
Regular price Sale price $239.99


Regular price $239.99
Regular price Sale price $239.99

Overview


Description

The MSI Z890-S WIFI WHITE Intel LGA 1851 ATX Gaming Desktop Motherboard boasts advanced features such as support for Intel Core Ultra Processors, DDR5 Memory, Wi-Fi 7, and Thunderbolt 4. It also includes PCIe 5.0 and Lightning Gen 5 for lightning-fast storage, as well as EZ DIY features and Audio Boost for a professional and efficient experience. With its sleek silver-white design, this motherboard is the perfect addition to any white PC build and is packed with exclusive MSI technologies for enhanced multitasking and productivity.

Features:
• Supports Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
• Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC).
• Features Wi-Fi 7 with EZ Antenna and 2.5G LAN.
• Includes Thunderbolt 4 support.
• Equipped with PCIe 5.0 slot and Lightning Gen 5 x4 M.2 for fast storage.
• Enhanced Power Design with a 12+1+1+1 Duet Rail Power System.
• Incorporates Frozr Guard thermal solution with Extended Heatsink and M.2 Shield Frozr.
• Offers EZ DIY features like EZ M.2 Clip II and EZ PCIe Clip II.
• Provides Audio Boost for high-quality sound.

Specifications:
• Socket Type: LGA 1851
• Chipset: Intel Z890
• Memory Support: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Supports Memory Overclocking and Intel XMP 3.0. Supports Dual-Controller Dual-Channel mode. Supports Non-ECC, Un-buffered memory. Supports CUDIMM.
• Expansion Slots: 4x PCI-E x16 slot (PCI_E1 Gen PCIe 5.0 supports up to x16, PCI_E2 Gen PCIe 3.0 supports up to x1, PCI_E3 Gen PCIe 4.0 supports up to x4, PCI_E4 Gen PCIe 4.0 supports up to x4).
• Storage: 3x M.2 slots (M.2_1 supports up to PCIe 5.0 x4, M.2_2 and M.2_3 support up to PCIe 4.0 x4; M.2_3 also supports SATA mode), 4x SATA 6G ports.
• RAID Support: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA and M.2 NVMe storage devices.
• Onboard Thunderbolt: 1x Thunderbolt4 port (Rear) supporting up to 40Gbps transfer rate, 8K display support, and daisy-chaining.
• USB Ports: Multiple USB 2.0, USB 5Gbps Type-A, and USB 20Gbps Type-C ports (both front and rear).
• LAN: Realtek 8125D 2.5Gbps LAN.
• Wireless & Bluetooth: Intel Wi-Fi 7 (Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz up to 5.8Gbps, 802.11 a/ b/ g/ n/ ac/ ax/ be) and Bluetooth 5.4.
• Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio.
• Internal I/O: Various connectors including Thunderbolt5 card connector, power connectors (ATX_PWR, CPU_PWR, PCIE_PWR), fan connectors, front panel connectors, tuning controller connector, RGB LED connectors, TPM pin header, and USB headers.

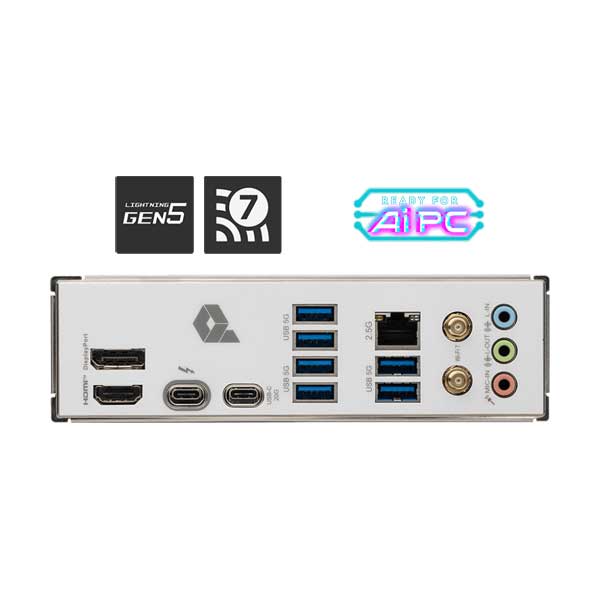

• Back Panel Ports: DisplayPort, USB 5Gbps Type-A, 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors, HDMI, Thunderbolt 4 40Gbps (Type-C), USB 20Gbps Type-C.
• Operating System: Support for Windows 11 64-bit.
• PCB Info: ATX Form Factor, 243.84mmx304.8mm.
