MSI X870 GAMING PLUS WIFI 7 AMD AM5 ATX Motherboard

The MSI X870 GAMING PLUS WIFI 7 AMD AM5 ATX Motherboard is equipped with advanced features designed by industry experts to provide the ultimate gaming experience. With support for AMD Ryzen 9000 series processors and up to 256GB of DDR5 memory, this motherboard offers top-of-the-line performance. It also boasts a robust 14+2+1 Duet Rail Power System and an extended heatsink with EZ M.2 Shield Frozr II for efficient cooling. With Wi-Fi 7, high-speed USB4, and multiple PCIe M.2 slots, this motherboard offers a range of connectivity options. Additionally, it features AI PC functions, easy overclocking and performance tuning, and EZ DIY features for seamless installation and control. Plus, it is compatible with Windows 11 64-bit.

Features:
• Chipset: AMD X870
• CPU: Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors, Socket AM5
• Memory: Supports DDR5, up to 256GB. Overclocking frequencies vary based on DIMM configuration.
• Onboard Graphics: HDMI 2.1 and Type-C DisplayPort, both supporting up to 4K 60Hz (available only on processors with integrated graphics).
• Slot: 4x PCI-E x16 slots with varying PCIe generations and speeds depending on the CPU.
• Audio: Realtek ALC897 7.1-Channel High Definition Audio.
• Storage: Multiple M.2 slots with PCIe support and 4x SATA 6G. Supports RAID 0, 1, and 5 for M.2 NVMe devices.
• LAN: Realtek 8126VB 5G LAN.
• USB: Multiple USB ports including 2.0, 5Gbps, 10Gbps, 20Gbps and 40Gbps Type-A and Type-C ports.
• Wireless LAN & Bluetooth: Wi-Fi 7 and Bluetooth 5.4.
• LED Feature: 4x EZ Debug LED.

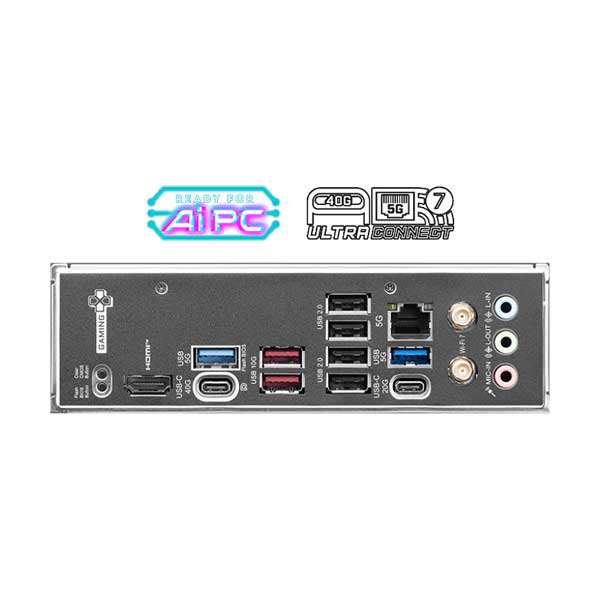

• Back Panel Ports: Includes Clear CMOS Button, USB ports, LAN, Wi-Fi/Bluetooth, Audio connectors, Flash BIOS Button, HDMI, and USB Type-C ports.
• Operating System: Supports Windows 11 64-bit.
• PCB Info: ATX form factor.

Specifications:
• Chipset: AMD X870
• CPU Support: Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors with Socket AM5
• Memory: 4x DDR5 UDIMM, Max. 256GB, Supports DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Graphics: 1x HDMI (supports HDMI 2.1, max. 4K 60Hz), 1x Type-C DisplayPort (USB4, supports DisplayPort 1.4 with HBR3 over USB Type-C, max. 4K 60Hz)
• Slots: 4x PCI-E x16 slots
• Audio: Realtek ALC897 7.1-Channel High Definition Audio
• Storage: 3x M.2, 4x SATA 6G, RAID 0/1/5 support for M.2 NVMe
• USB Ports: Multiple USB 2.0, USB 5Gbps Type A, USB 10Gbps Type A, USB 10Gbps Type C, USB 20Gbps Type C, and USB 40Gbps Type C ports
• LAN: Realtek 8126VB 5G LAN
• Wireless / Bluetooth: Wi-Fi 7, Bluetooth 5.4
• Internal I/O: Various connectors for power, fans, audio, RGB LEDs, TPM, and USB
• Back Panel I/O: Clear CMOS Button, USB ports, LAN, Wi-Fi/Bluetooth, Audio connectors, Flash BIOS Button, HDMI, USB Type-C ports
• Operating System: Support for Windows 11 64-bit
• Form Factor: ATX (243.84mmx304.8mm)
