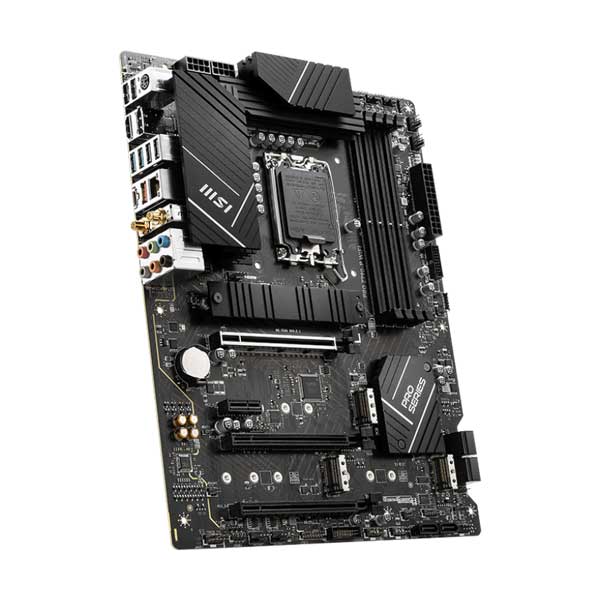

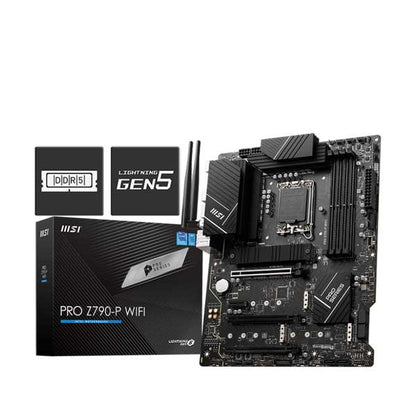

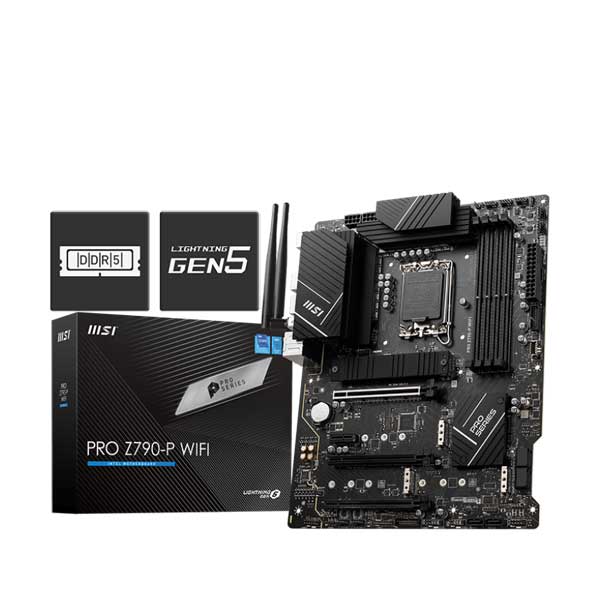

MSI PRO Z790-P WIFI Motherboard | Intel Z790, DDR5, LGA 1700, PCIe 5.0, 2.5G LAN

The MSI PRO Z790-P WIFI delivers professional-grade performance through its Intel Z790 chipset foundation, accommodating 14th, 13th, and 12th Gen Core processors with DDR5 memory scaling to 7000+MHz. Its 14+1+1 power architecture with 55A DrMOS and comprehensive thermal management—including extended heatsinks and 7W/mK pads—maintains stability during intensive workloads. PCIe 5.0 connectivity future-proofs your system for next-generation components, while Wi-Fi 6E and 2.5G LAN ensure responsive networking. The board integrates four M.2 slots and six SATA ports for flexible storage expansion, complemented by user-friendly features like the Flash BIOS Button and EZ M.2 Clip for straightforward assembly and updates.

Features:
CPU Support: Supports Intel Core 14th/13th/12th Gen Processors for LGA 1700 socket.
Enhanced Power Design: 14+1+1 Duet Rail Power System with 55A DrMOS for superior stability and overclocking.
Premium Thermal Solution: Extended Heatsink, M.2 Shield Frozr, and 7W/mK thermal pads maintain peak performance.
Lightning Gen 5: Features a dedicated PCIe 5.0 slot for next-generation graphics cards.
High-Speed Network: Integrated 2.5G LAN and Wi-Fi 6E for high-bandwidth, low-latency connectivity.
Fast Storage: Includes 4x M.2 slots (Lightning Gen 4 x4) and 6x SATA 6G ports.
DIY Friendly: Features EZ M.2 Clip, XL PCI-E clip, and Flash BIOS Button for easy assembly and maintenance.
DDR5 Memory: Supports Dual Channel DDR5 Memory up to 7000+MHz (OC).

Specifications:
Chipset: Intel Z790
CPU Socket: LGA 1700
Form Factor: ATX
Memory Support (Max): DDR5 up to 128GB (Max OC 7000+ MHz)
PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 3.0 x16 (x1 mode), 1x PCIe 3.0 x1
Storage Interfaces: 4x M.2 (Gen4 x4), 6x SATA 6Gb/s

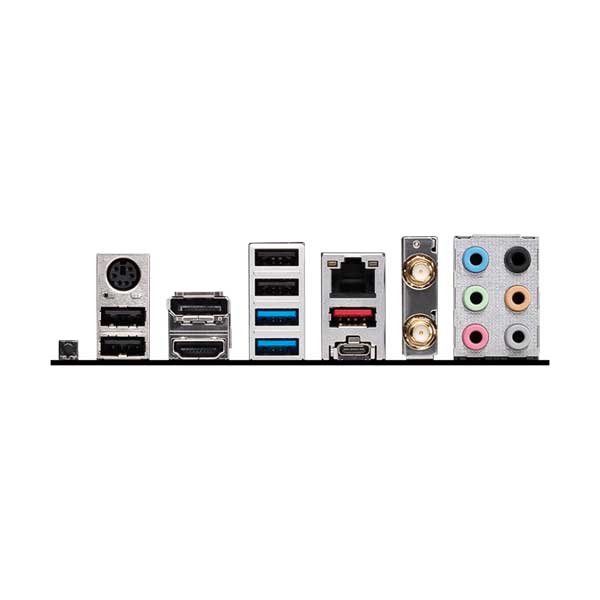

USB: Lightning USB 3.2 Gen 2x2 (20G) Type-C, front USB Type-C support.
LAN: 2.5G LAN
Wireless: Wi-Fi 6E, Bluetooth 5.3
Weight (lbs): 3.63 lbs
