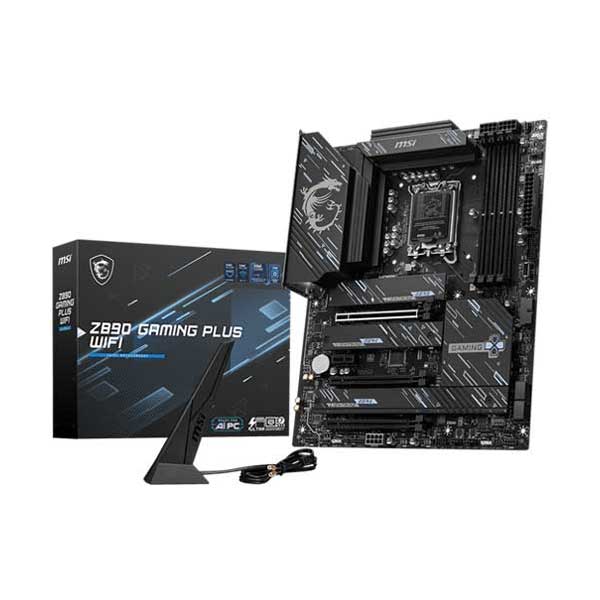

MSI MSI Z890 GAMING PLUS WIFI Intel LGA 1851 ATX Gaming Desktop Motherboard

The MSI Z890 GAMING PLUS WIFI Intel LGA 1851 ATX Gaming Desktop Motherboard offers robust features for optimal performance. It supports Intel Core Ultra Processors (Series 2) and DDR5 Memory with Dual Channel technology for speeds up to 9200+ MT/s (OC). With a 14+1+1+1 Duet Rail Power System and 55A DrMOS, it delivers stable and reliable power. Additionally, it comes equipped with advanced thermal solutions and user-friendly EZ DIY features such as EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna. The motherboard also includes a PCIe 5.0 slot, supports Lightning Gen 5, and has built-in Killer Wi-Fi 7 and 5G LAN for high-speed networking. It is designed to handle 24/7 non-stop gaming with Intel Core Ultra processors and features Thunderbolt 4 connectivity for fast data transfer.

Features:
• Supports Intel Core Ultra Processors (Series 2) for the LGA 1851 socket.
• Supports DDR5 Memory with Dual Channel technology, supporting speeds up to 9200+ MT/s (OC).
• Features a robust 14+1+1+1 Duet Rail Power System with 55A DrMOS.
• Equipped with dual 8-pin CPU power connectors, Core Boost, and Memory Boost for enhanced performance.
• Constructed with a 6-layer PCB made from 2oz thickened copper and server-grade level material for durability and stability.
• Advanced thermal solution including Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and EZ M.2 Shield Frozr II.
• User-friendly EZ DIY features such as EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna.
• Includes a PCIe 5.0 slot and supports Lightning Gen 5.
• Designed with Killer Wi-Fi 7 and 5G LAN for high-speed networking.
• Features Thunderbolt 4 connectivity.
• Ready for 24/7 non-stop gaming with Intel Core Ultra processors.

Specifications:
• Chipset: INTEL Z890
• CPU Support: Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket.
• Memory Support: 4x DDR5 UDIMM slots, with a maximum memory capacity of 256GB. Supports memory speeds of 9200 - 6400 (OC) MT/s and 6400 - 4800 (JEDEC) MT/s.
• Expansion Slots: 3x PCI-E x16 slots and 1x PCI-E x1 slot. PCI_E1 supports PCIe 5.0 up to x16 (from CPU), PCI_E2 supports PCIe 4.0 up to x1 (from Chipset), and PCI_E3 supports PCIe 4.0 up to x4 (from Chipset).
• Storage: 4x M.2 slots and 4x SATA 6G ports. Supports RAID 0, RAID 1, RAID 5, and RAID 10 for both SATA and M.2 NVMe storage devices.

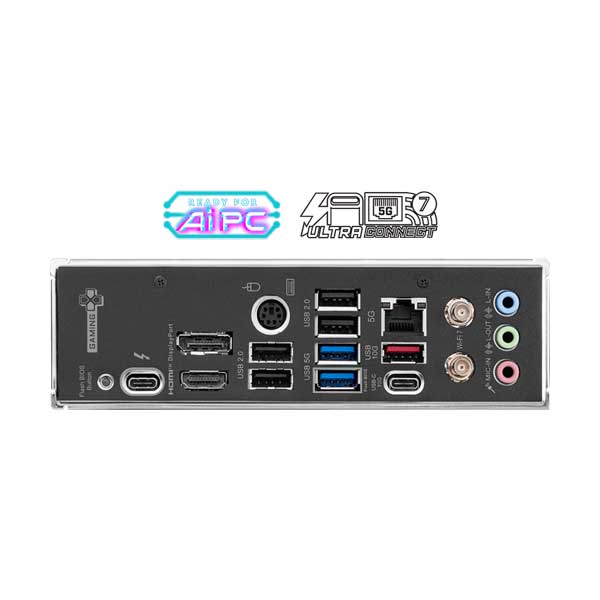

• USB: Includes 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), and 1x USB 20Gbps Type C (Front).
• LAN: Intel Killer E5000 5Gbps LAN.
• Wireless LAN: Intel Killer BE1750x Wi-Fi 7, supporting 802.11 a/b/g/n/ac/ax/be standards.
• Bluetooth: Supports Bluetooth 5.4.
• Audio: Realtek ALC897 Codec providing 7.1-Channel High Definition Audio.
