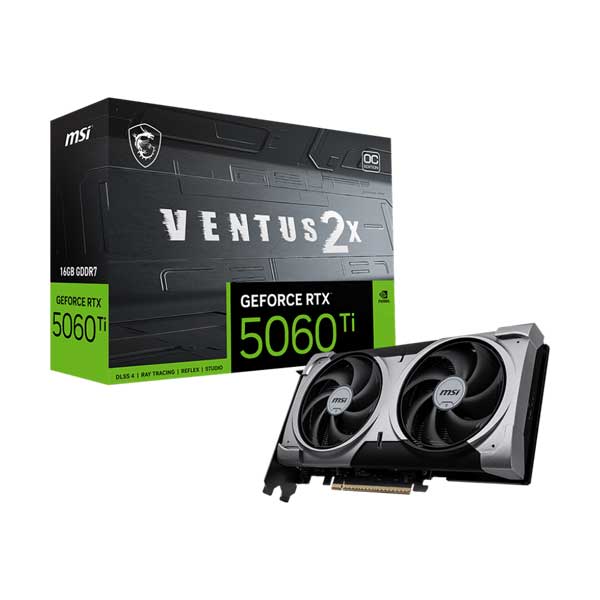

MSI GeForce RTX 5060 Ti 16GB VENTUS 2X OC PLUS Graphics Card (G506T-16V2CP)

Introducing the MSI G506T-16V2CP, also known as the GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS, a top-performing graphics card designed for advanced gaming. With the powerful NVIDIA GeForce RTX 5060 Ti GPU, advanced features like NVIDIA DLSS 4, Ray Tracing, and NVIDIA Reflex provide enhanced frame rates, improved image quality, and reduced latency for a seamless gaming experience. The card also boasts 16GB of GDDR7 memory and supports a PCI Express Gen 5 x16 interface. Its software suite, including MSI Center and Afterburner, allows for easy monitoring, tweaking, and overclocking. With three DisplayPort 2.1b and one HDMI 2.1b outputs, the MSI G506T-16V2CP ensures smooth and tear-free gameplay on compatible monitors.

Features:
NVIDIA DLSS 4: Boosts frame rates and image quality using AI.
Ray Tracing: Provides realistic lighting and shadows in supported games.
NVIDIA Reflex: Reduces latency for a more responsive gaming experience.
NVIDIA G-SYNC: Ensures smooth, tear-free gameplay on compatible monitors.
MSI Center: Software suite to monitor, tweak, and optimize the graphics card.
Afterburner: Overclocking utility.

Specifications:
GPU: NVIDIA GeForce RTX 5060 Ti, based on the Blackwell architecture.
CUDA Cores: 4608.
Boost Clock: 2602 MHz.
Extreme Performance Clock: 2617 MHz (when using MSI Center software).
Memory: 16GB GDDR7.
Memory Speed: 28 Gbps.
Memory Bus: 128-bit.
Interface: PCIe Gen 5 x16 (uses x8 lanes).
Power Consumption: 180W.
Recommended PSU: 600W.
Power Connector: 1x 8-pin.
Cooling:
STORMFORCE Fan: Dual-fan system with seven blades and claw texture for enhanced airflow and reduced noise.
Heat Pipes: Efficiently transfer heat away from the GPU.
Metal Backplate: Provides structural rigidity and includes an airflow vent to further improve cooling.

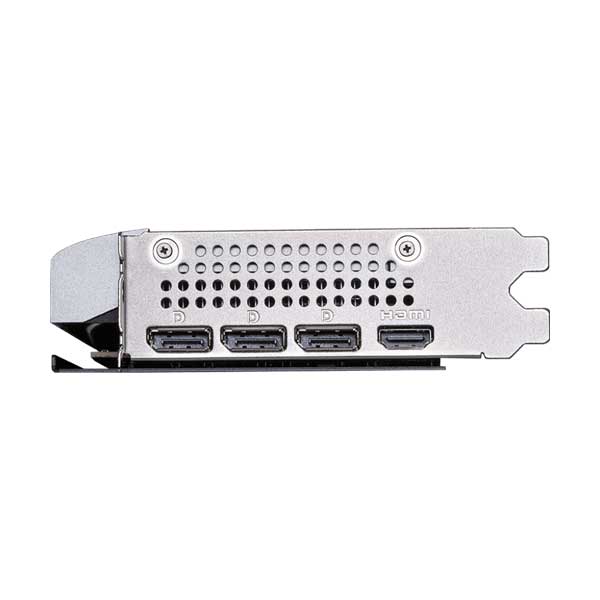

Outputs:
3x DisplayPort v2.1b
1x HDMI 2.1b (supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, and HDR)
Physical Dimensions:
Dimensions: 227 x 127 x 41 mm.
Weight (Card/Package): 600 g / 862 g.
