MSI G5090-32SLS GeForce RTX 5090 32G Suprim Liquid OC Graphics Card

Discover the pinnacle of graphics performance and cooling innovation with the MSI GeForce RTX™ 5090 SUPRIM LIQUID SOC. This flagship model combines NVIDIA’s powerful GeForce RTX™ 5090 GPU, built on the advanced Blackwell architecture, with a sophisticated hybrid liquid cooling system tailored for enthusiasts. Featuring 21,760 CUDA cores, next-gen Ray Tracing and AI Tensor Cores, plus 32GB of ultra-fast 28 Gbps GDDR7 memory on a 512-bit bus, it delivers stunning visuals, realistic lighting, and exceptional frame rates for demanding games and intensive creative workloads. The SUPRIM LIQUID cooling solution integrates a high-performance pump, patented water block cooling GPU and VRAM, and a 360mm radiator with STORMFORCE fans, ensuring efficient heat dissipation, higher boost clocks up to 2580 MHz, and quiet operation. Built with premium materials, customizable RGB lighting, dual BIOS modes, and a reinforced frame, this card is engineered for ultimate gaming and professional use.

General:
Product Name: GeForce RTX 5090 32G SUPRIM LIQUID SOC
Model Name: G5090-32SLS
Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5090 (Blackwell Architecture)
Interface: PCI Express Gen 5 x16

Core Clocks:
Gaming Mode (Extreme Performance via MSI Center): 2580 MHz Boost
Gaming Mode (Default Boost): 2565 MHz
Silent Mode (Extreme Performance via MSI Center): 2527 MHz Boost
Silent Mode (Default Boost): 2512 MHz
CUDA Cores: 21760

Memory:
Memory Size: 32GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 512-bit
Output:

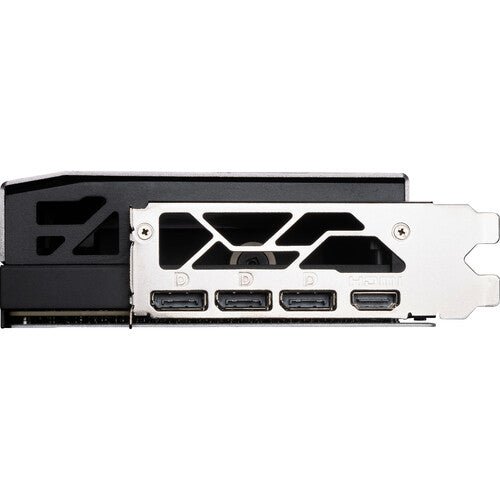

DisplayPort x 3 (Version 2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support: Yes
Maximum Displays: 4
Digital Maximum Resolution: 7680 x 4320

Power:
Power Consumption:
Gaming Mode: 600 W
Silent Mode: 575 W
Power Connectors: 1x 16-pin
Recommended PSU: 1000 W
Cooling System:

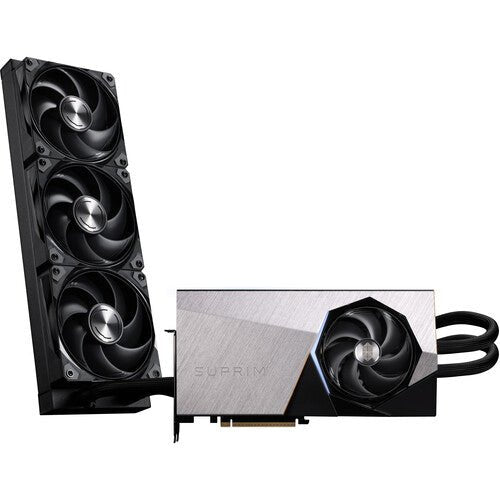

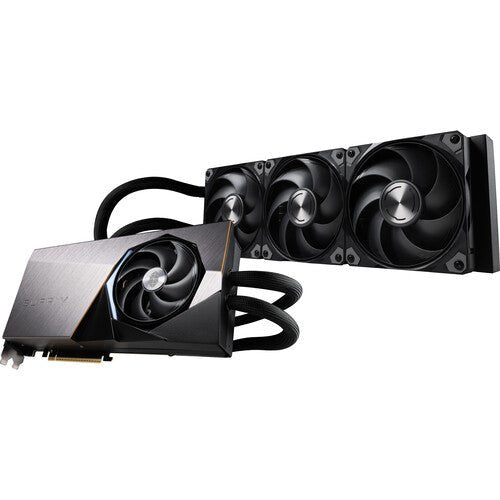

Type: Hybrid Cooling (Air cooling with STORMFORCE fan and liquid cooling with a patented water block and 360mm radiator)
Radiator Dimensions: 394 x 121 x 55 mm
Tube Length: 450 mm (some sources say 280mm)
Features: Micro-fin copper base, durable tubing with scratch-proof cover, metal backplate with airflow vents and thermal pads

Physical Dimensions:
Card Dimensions: 280 x 148 x 51 mm (11.02 x 5.83 x 2.01 inches)
Weight (Card): 2969 g (6.54 lbs)
Weight (Package): 4273 g (9.42 lbs)

Features:
NVIDIA DLSS 4 (with Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution)
NVIDIA Reflex 2 (with Frame Warp)
Full Ray Tracing with Neural Rendering
NVIDIA G-SYNC Technology
NVIDIA Broadcast
NVIDIA Studio Drivers
NVIDIA App
NVIDIA Ansel
NVIDIA FreeStyle
NVIDIA ShadowPlay
NVIDIA Highlights
Resizable BAR
Dual BIOS (Gaming Mode and Silent Mode)
MSI Center Software Support
Afterburner Overclocking Utility
API Support:
DirectX 12 Ultimate
OpenGL 4.6
Warranty:
3 Years
