Description
- USB-A Male with Attachable USB-C Male Adapter
- Three USB-A Females
- RJ45 Female Gigabit Ethernet (10/100/1000) Port
- 5 Gbps SuperSpeed USB (USB 3.2 Gen 1)
- Bus Powered
- Black

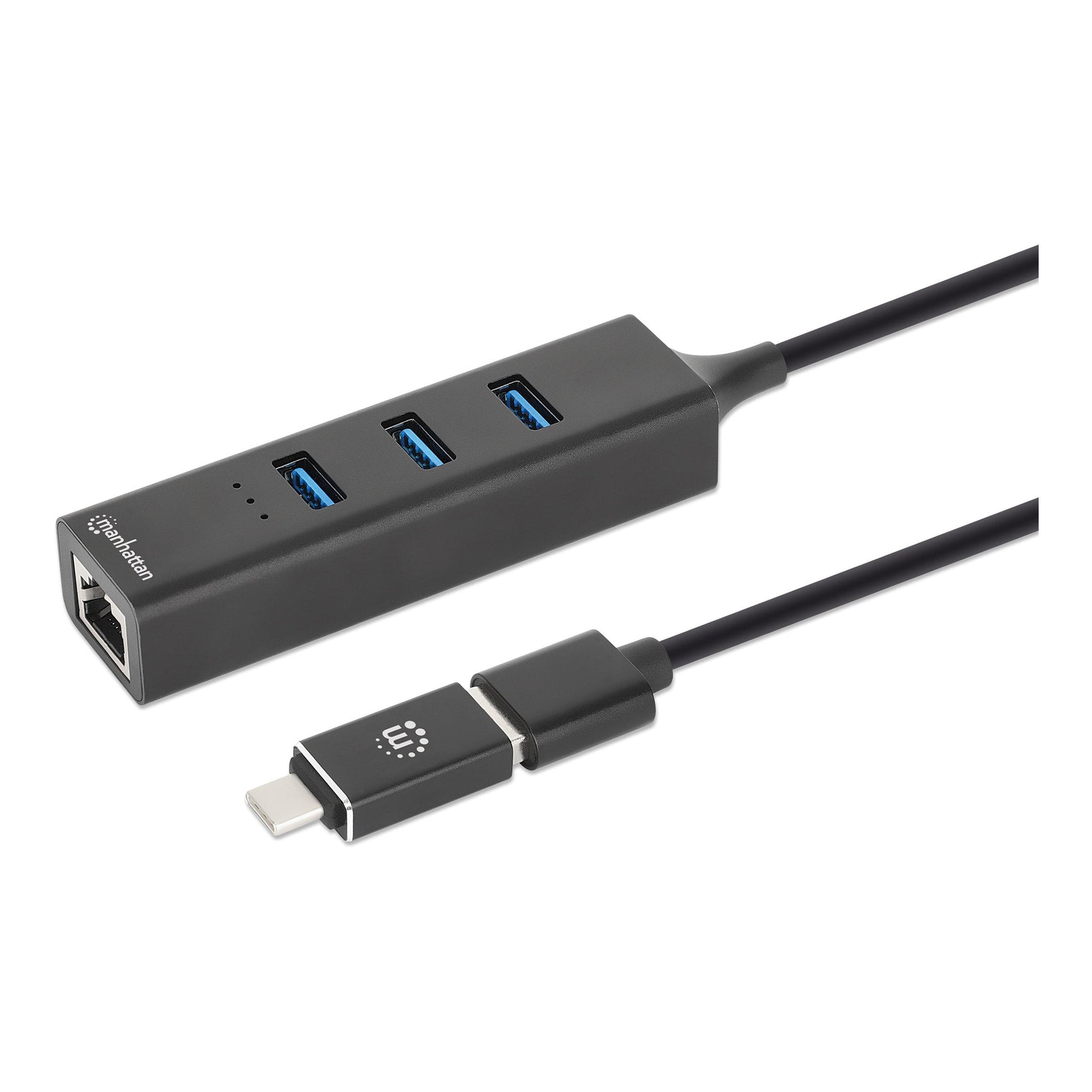

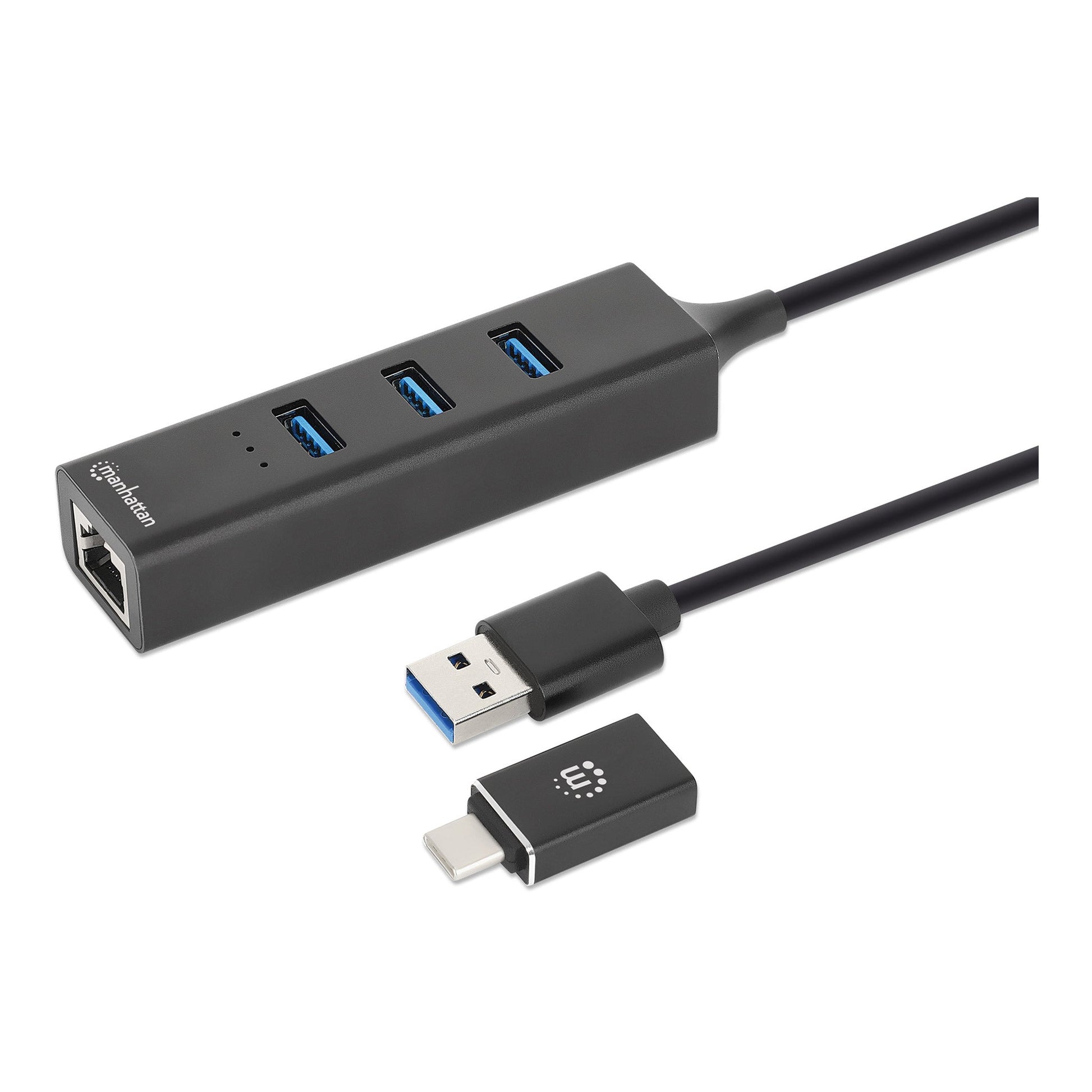

The Manhattan 180894 Hub provides reliable and secure wired connection with its Gigabit Ethernet port and three 5Gbps USB-A ports. Easily expand your device's connection capabilities in crowded areas or where Wi-Fi is unreliable. Enjoy the freedom of synchronizing or charging your mobile devices with the USB-A ports and the convenience of a single USB-C Male adapter to RJ45 Female connection.
Standards and Certifications
- USB 3.2 Gen 1 (USB 3.0)
- CE
- FCC
- RoHS
- REACH
- UKCA
- IEEE 802.1p (Traffic Prioritization)
- IEEE 802.1q (VLAN Tagging)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3az (Energy Efficient Ethernet EEE)
- IEEE 802.3u (100Base-TX Fast Ethernet)
General
- USB data transfer speeds: 5 Gbps
- USB-A charging power output: 4.5 W (5.0 V at 0.9 A) max.
- Withstanding voltage: 300.0 V DC
- Insulation resistance: 10 MΩ
- Conductive resistance: 5 Ω
- Auto MDIX
- Full Duplex Support
- Jumbo frames: up to 9 kBytes
Connections
- One USB-C 24-Pin, Male (Separate Attachable Plug)
- One USB-A 9-Pin, Male
- Three USB-A 9-Pin, Female
- One 10/100/1000 Mbps RJ45, Female
Physical
- Dimensions (L x W x H): 90 x 25 x 19 mm (3.54 x 0.98 x 0.75 in.)
- Net Weight: 57 g (2.01 oz.)
- Gross Weight: 90 g (3.17 oz.)
- Cable Length: 65 cm (25 in.)
- Cable Diameter: 24 AWG
- Housing: Aluminum
Operating Environment
- Operation Temperature: 0 - 40°C (32 - 104°F)
- Storage Temperature: -40 - 80°C (-40 - 176°F)
- Humidity (noncondensing): 5 - 90%
System Requirements
- Windows XP/Vista/7/8.1/10/11, Linux, Chrome OS or macOS
Package Contents
- 3-Port USB 3.0 Type-C/A Combo Hub with Gigabit Ethernet Network Adapter
- Instructions
