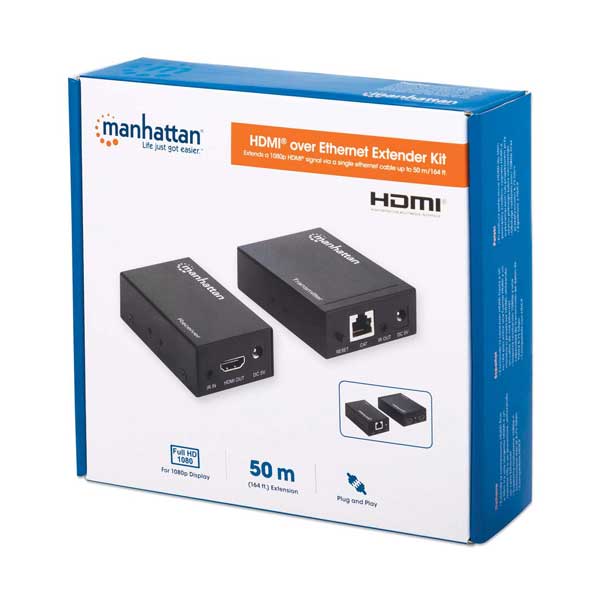

Manhattan 1080p HDMI over Ethernet Extender Kit | 50m | 207584

The Manhattan 1080p HDMI over Ethernet Extender Kit extends high-definition video and audio up to 50 meters over a single Cat6 cable, making it ideal for commercial, corporate, and residential installations. This plug-and-play solution features a local HDMI loop-out port for dual display monitoring, wideband IR remote control pass-through, and support for 5.1-channel surround sound. With 6.75 Gbps bandwidth, HDCP 1.2 compliance, and a rugged metal chassis, it delivers professional-grade AV signal integrity without software configuration. Simply connect and stream crisp 1080p video with complete hardware independence.

Features:
Extended Range Capabilities: Cost-effectively stretches high-definition signals up to 50 meters (164 feet) over an easily routeable Cat6 Ethernet infrastructure.
Local Monitoring/Dual Display: Features an integrated two-port loop-out transmitter that allows you to feed a local monitoring display while concurrently streaming over the long-distance run.
IR Pass-Through Support: Includes wideband infrared transmitter and receiver components, allowing seamless remote control of the source equipment directly from the display location.
Lossless Multi-Channel Audio: Supports premium digital audio protocols, including 5.1-channel surround sound configurations, for deep, immersive soundscapes.
Hardware-Free Deployment: True plug-and-play engineering means zero software setups, minimal downtime, and complete hardware independence.

Specifications:
Video Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, and full crisp 1080p
Data Throughput & Bandwidth: Supports total speeds up to 6.75 Gbps and 225 MHz video amplifier bandwidth
Standards Compliance: Fully HDCP 1.2 and DVI 1.0 compliant to protect data streams and ensure source-to-screen communication

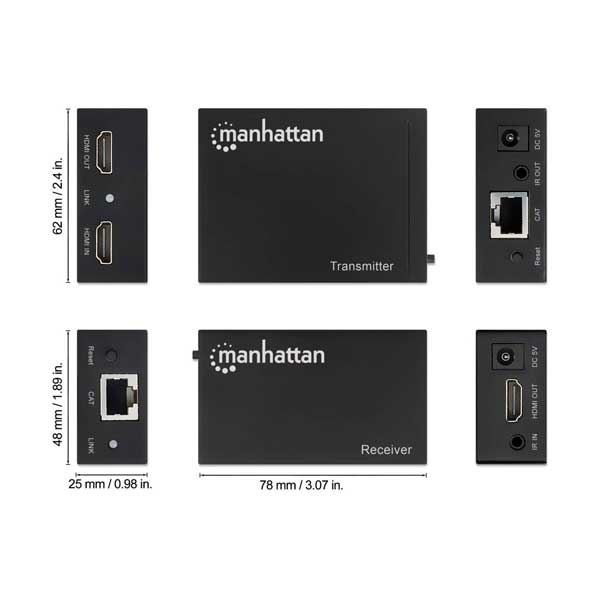

Connectors (Transmitter): 2 x HDMI female ports (1 in / 1 out local loop), 1 x RJ45 female network port, 1 x 5 VDC power jack, 1 x 3.5 mm IR jack
Connectors (Receiver): 1 x HDMI female port, 1 x RJ45 female network port, 1 x 5 VDC power jack, 1 x 3.5 mm IR jack
Chassis Construction: Premium, heavy-duty industrial metal housing
Dimensions (L x W x H) (inches): 3.19 x 2.44 x 1.02 in
Weight (lbs): 1.35 lbs
