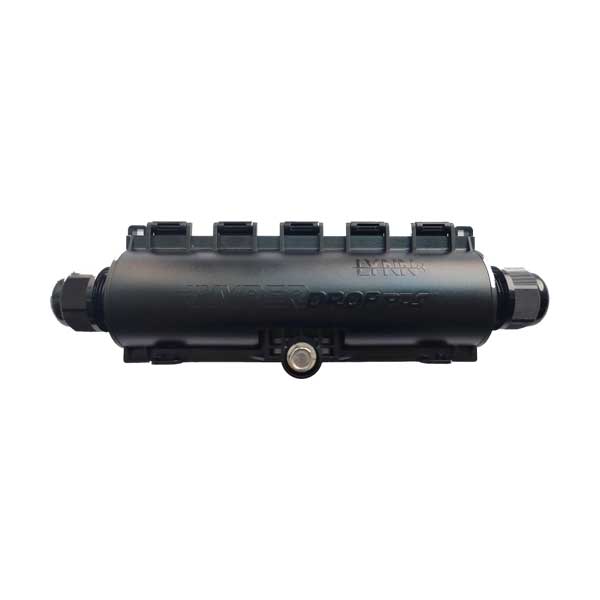

LYNN HyperDrop PAS Mini – Patch and Splice Fiber Terminal Enclosure – IP68 (HDPAS-M-KIT)

The LYNN HyperDrop PAS Mini IP68-rated enclosure is designed for splicing and coupling fiber, twisted pair, and other low-voltage cables. It is ideal for outdoor installations, offering an easy-to-open design with a water-tight latching mechanism. The enclosure includes a highly visible fiber splicing tray and grommets that can accommodate various cable sizes and constructions. It is compatible with a range of fiber couplers, splice connections, keystones, and other barrel-style couplers. The all-plastic housing is constructed from a durable blend of ABS and polycarbonate with UV inhibitors, ensuring a long service life in different environments.

Features:
• Ideal for splicing & coupling fiber, twisted pair & other low-voltage cables
• IP68-rated for outdoor installation
• Easy-to-open design with water-tight latching
• Includes easy-to-see fiber splicing tray
• Included grommets accommodate a variety of cable sizes & constructions
• Compatible with fiber couplers, fiber splice connections, keystones & other barrel-style couplers

Specifications:
• Universal mounting brackets with hardware (M4x6mm screws with red threadlocker (2 ea)
• Drywall anchors with M4x25mm self-tapping wood screws (2 ea)
• M4 x 12mm screws with blue threadlocker (2 ea)
• M4 wingnuts (2 ea)
• Internal splice tray (installed in enclosure)
• Type A fusion splicing tubes (2 ea)
• Large zip ties: 4.5x192mm (4 ea)
• Small zip ties: 2.5x100mm (2 ea)
• Cable grommets: 3mm round (installed in enclosure) (2 ea), 5mm round (2 ea), 8mm round (2 ea). 11mm round (2 ea)
• Simplex SC/APC coupler
• Duplex LC/UPC coupler
• Coax barrel-style coupler
• CAT6 keystone coupler
