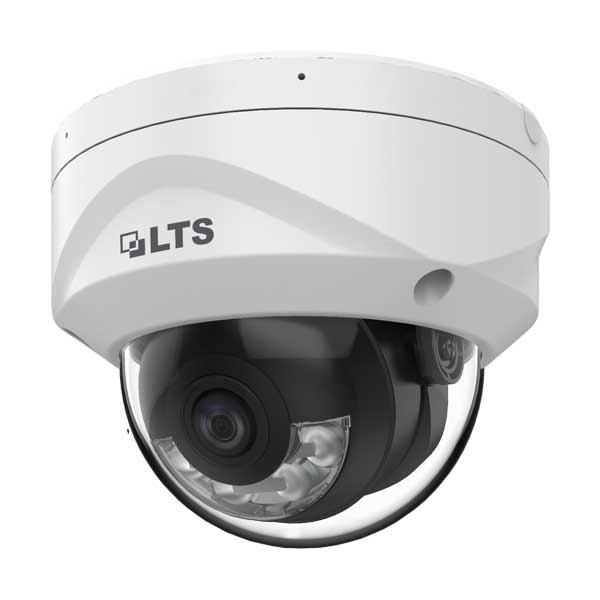

LTS Platinum 4MP Dome Network Camera (LTCMIP7342WI-28MDA)

Engineered for demanding surveillance environments, this 4MP dome camera delivers intelligent threat detection through advanced deep learning algorithms that distinguish between human and vehicle activity. The integrated hybrid lighting system—combining infrared and white LED illumination across four distinct modes—ensures reliable visibility in complete darkness and challenging lighting conditions. True 120dB wide dynamic range technology captures detail in high-contrast scenes, while H.265+ compression optimizes bandwidth and storage efficiency. Dual-array microphone technology provides synchronized audio capture for comprehensive situational awareness. Built to withstand harsh conditions with IP67 weatherproofing and IK10 vandal resistance, this camera features a fixed 2.8mm lens delivering a 103° horizontal field of view. PoE and 12VDC power options, combined with microSD card support up to 256GB, provide flexible deployment across diverse network infrastructures.

Features
High-quality imaging with 4 MP resolution.
Focuses on human and vehicle classification using deep learning.
Smart Hybrid Light: Integrates IR and White lights with 4 supplemental lighting modes.
Built-in dual-array microphone for real-time, high-quality audio security.
Provides clear imaging even under strong backlight conditions with 120 dB true WDR technology.
Efficient H.265+ compression technology.
Water and dust resistant (IP67) and vandal-resistant (IK10).

Specifications
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Lens: 2.8 mm Fixed Lens
Field of View (2.8mm): Horizontal 103°, Vertical 55°, Diagonal 122°
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC on), 0 Lux with IR
IR Range: Up to 98 ft (30 m)
Video Compression: H.265+, H.265, H.264+, H.264
Audio: Built-in dual-array microphone
On-Board Storage: Built-in MicroSD card slot, up to 256 GB
Power: 12 VDC / PoE (802.3af)
Protection: IP67 (Weatherproof), IK10 (Vandal-Proof)
Dimensions: Ø 4.8″ × 3.7″ (Ø 121.4 × 92.2 mm)
Weight: 1.3 lbs (570 g)
