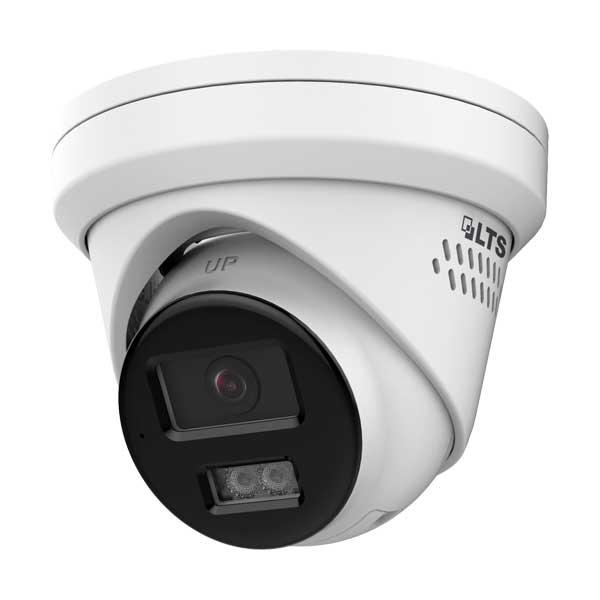

LT Security 5MP 2.8mm TVI Turret Camera With Dual Light Active Deterrence | CMHT1752-28LS

The LTS LTCMHT1752-28LS is a 5MP TVI turret camera engineered for active property protection. It combines high-definition imaging with intelligent deterrence—featuring Smart-Hybrid dual lighting that automatically switches between infrared and white light, a strobe warning system, built-in siren, and two-way audio over coax. With 40-meter night vision coverage, 112° wide viewing angle, and IP67 weather resistance, this camera detects threats and enables real-time communication across any lighting condition. Ideal for residential and commercial perimeter security.

Features
Active Intruder Deterrence: Stops perimeter breaches in their tracks with a built-in strobe light and audible alarm siren.
Smart-Hybrid Illumination: Automatically switches between covert infrared and full-color white light illumination when activity is detected.
Integrated Two-Way Audio over Coax: Transmits clear two-way communication over existing coaxial cable using a built-in microphone and speaker.
Extended Night Coverage: Illuminates outdoor areas up to 40 meters (131 feet) via supplemental white light and infrared LEDs.
All-Weather Reliability: Rated IP67 to withstand heavy dust, driving rain, and outdoor environmental conditions.

Specifications
Image Sensor: 5 MP CMOS
Maximum Resolution: 2960 x 1665
Lens Type: 2.8 mm fixed focal lens (M12 mount)
Angle of View: Horizontal FOV: 112°, Vertical FOV: 62°, Diagonal FOV: 131°
Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s
Angle Adjustment (3-Axis): Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Illumination Range: Smart IR up to 40 m (131 ft); White Light up to 40 m (131 ft)
Wide Dynamic Range (WDR): Digital WDR (DWDR) with BLC, HLC, and HLS support
Noise Reduction: 2D DNR
Frame Rates: TVI: 5MP @ 10/12.5/20/25 fps; 4MP @ 25/30 fps; 1080p @ 25/30 fps
Video Output: 1 HD analog output
Microphone: Built-in omnidirectional mic (5 m radius pickup)
Speaker: Built-in 2W rated speaker (5 m audible radius)
Visual Deterrence: Red and blue flashing strobe light
Power Supply: 12 VDC ± 25%, max. 9.6 W (15 VDC recommended when using high-impedance extension cables)
Housing Material: Metal main body with plastic enclosure
Operating Temperature: -40°C to 60°C (-40°F to 140°F), humidity ≤ 90% (non-condensing)
Ingress Protection: IP67
Dimensions (L x W x H): 4.33" x 4.33" x 4.04"
Weight: 0.85 lbs
