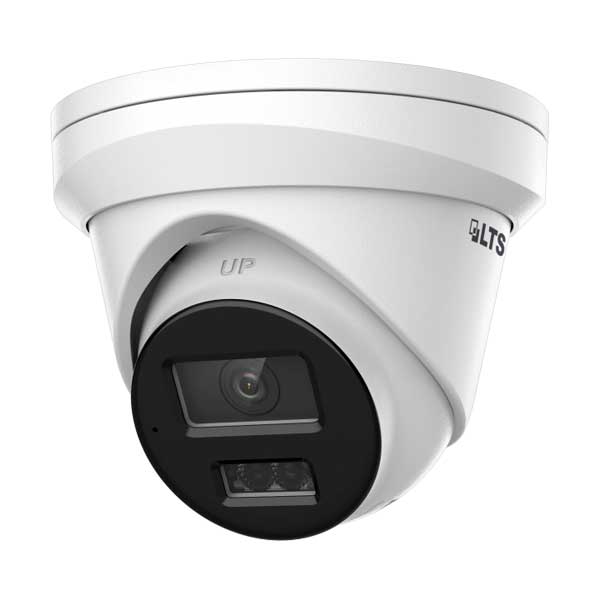

LT Security 4MP Dual-Light Fixed Turret Network Security Camera | 2.8mm | PoE | LTCMIP1T42E-28A

The LTS LTCMIP1T42E-28A is a professional-grade 4MP turret network camera designed for 24/7 surveillance of commercial and residential properties. Featuring a 1/3" Progressive Scan CMOS sensor, it delivers crystal-clear 2560 x 1440 resolution with 120 dB True WDR to handle challenging lighting conditions and capture fine details like facial features and license plates.

The camera's standout Smart Hybrid Light system intelligently switches between covert 850 nm infrared and vibrant white illumination up to 30 meters, activating only when human or vehicular motion is detected to reduce false alarms and enhance security presence. Motion Detection 2.0 uses deep-learning algorithms to distinguish between people, vehicles, and environmental movement, minimizing nuisance triggers from rain, foliage, or animals.

Built-in audio capture with noise filtering provides synchronized video and sound verification. H.265+ video compression cuts bandwidth and storage needs by up to 75%, while the onboard microSD slot supports up to 512 GB for independent recording or network backup. Rated IP67 weatherproof and operating from -22°F to 140°F, the durable metal and plastic construction withstands harsh outdoor conditions.

Installation is straightforward with plug-and-play Power over Ethernet (PoE) or standard 12 VDC power options. The 2.8mm fixed lens offers a 98° horizontal field of view with full 3-axis pan, tilt, and rotate adjustment. Supports up to 32 simultaneous users across 6 live view channels with granular permission controls.

Features
Target Classification (Motion Detection 2.0): Employs deep-learning algorithms to accurately classify humans and vehicles, eliminating nuisance triggers caused by foliage, rain, or small animals.
Smart Hybrid Light Illumination: Seamlessly alternates between discreet 850 nm IR mode and vibrant supplemental white light across a 30-meter range when an event is detected.
120 dB True Wide Dynamic Range (WDR): Balances high-contrast, backlit, and shadowed scenes to capture distinct facial features and license plate details.
Real-Time Audio Capture: Features an integrated microphone with environmental noise filtering for synchronized audio-visual verification.
Efficient H.265+ Video Compression: Reduces bandwidth consumption and storage overhead by up to 75% compared to legacy H.264 without compromising video fidelity.
High-Capacity Edge Storage: Houses an onboard microSD/microSDHC/microSDXC card slot supporting up to 512 GB for standalone recording or network-failover redundancy.
Industrial Weather Resistance: Enclosed in a rugged IP67-rated metal and plastic chassis designed to withstand rain, dust, and temperature extremes from -22°F to 140°F.
Versatile Power Options: Simplifies installation through standard Power over Ethernet (PoE 802.3af) or standard 12 VDC coaxial power.

Specifications
Image Sensor: 1/3" Progressive Scan CMOS
Max Resolution: 2560 x 1440 (4 MP)
Frame Rates:
Main Stream: 20 fps (2560 x 1440); 24/25 fps (1920 x 1080, 1280 x 720)
Sub-Stream: 24/25 fps (1280 x 720, 640 x 480, 640 x 360)
Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); 0 Lux with supplemental light
Lens Type & Focal Length: Fixed 2.8 mm @ F1.6 (M12 mount)
Field of View (FOV): Horizontal: 98°, Vertical: 54°, Diagonal: 114°
DORI Rating: Detect: 63 m (206 ft), Observe: 25 m (82 ft), Recognize: 12 m (39 ft), Identify: 6 m (20 ft)
Supplemental Light Range: Up to 30 m (IR wavelength: 850 nm / White Light)
Angle Adjustment (3-Axis): Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Image Enhancement: BLC, HLC, 3D DNR, SNR ≥ 52 dB, 1 ROI region
Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Network Protocols: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View: Up to 6 channels (supports up to 32 users / 3 permission tiers)
Operating Temperature: -30°C to 60°C (-22°F to 140°F), humidity ≤ 95% (non-condensing)
Power Requirements: 12 VDC ± 25%, 0.4 A, max. 5 W; PoE (IEEE 802.3af, Class 3), max. 6.5 W
Product Dimensions (L x W x H): 4.3" x 4.3" x 3.5"
Shipping Dimensions (L x W x H): 5.9" x 5.9" x 5.6"
Product Weight: Approx. 0.72 lb
Shipping Weight: Approx. 1.23 lb
