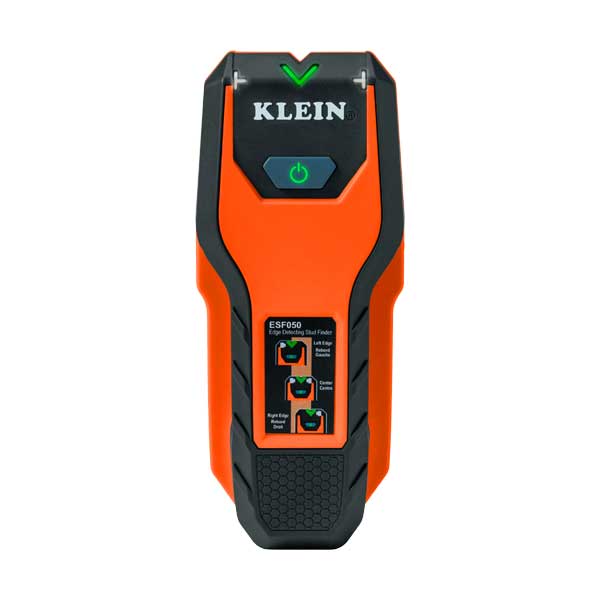

Klein Tools Edge-to-Edge Stud Finder | ESF050

The Klein Tools ESF050 is a professional-grade stud finder that locates wood and metal studs up to 3/4-inch deep behind drywall in a single continuous pass. It automatically detects the leading edge, center, and trailing edge of studs without manual calibration, making layout and anchor placement faster and more accurate. The device features intuitive LED indicators, mutable audible alerts, protective wall pads, and ergonomic finger guards to safeguard finished surfaces while you work. Designed for both commercial contractors and homeowners, this compact scanner delivers reliable, repeatable results in any environment with instant auto-calibration, hands-free one-touch operation, and operating temperatures from 32°F to 122°F. Powered by two included AAA batteries.

Features
Continuous Single-Pass Scanning: Detects the first edge, center, and second edge in one fluid pass to reveal the complete width of single or gang-mounted studs.
Instant Automatic Calibration: Calibrates instantly upon surface contact to provide reliable, repeatable detection without manual sensitivity dials.
Multi-Sensory Tracking: Illuminates intuitive LED indicators and triggers audible alerts (with mute capability) to provide positive confirmation in busy or noise-sensitive environments.
One-Touch Hands-Free Power: Operates via a backlit green push button that stays illuminated and active without continuous finger depression.
Surface-Protecting Pads: Integrated felt pads on the back safeguard painted drywall and finished wall coverings from marring during repeated scanning.
Protective Finger Guards: Ergonomic side wings shield hands and keep fingers from rubbing against rough walls during side-to-side passes.

Specifications
Tester / Tool Type: Stud Finder
Application: Detects Wood and Metal Studs Behind Walls; Center and Edge Finding
Scan Depth: Up to 3/4 in (19 mm)
Scanned Materials: Wood and Metal Studs
Special Features: Auto-Calibration, Wall-Protecting Pads, Finger Guards, Easy Grip, Mutable Audible Alerts
Display Type: High-Visibility LEDs
Audible Alert: Yes (Mutable)
Voltage Detection: No
Live Wire Detection: No
Magnetic Tip: No
Level Included: No
Drop Protection: 6.5 ft (2 m)
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Housing Material: Durable PC-ABS Enclosure with Precision Electrical Components
Power Supply: 2 x AAA Alkaline Batteries (Included)
Product Dimensions (L x W x H): 5.69 x 2.41 x 1.10 inches
Weight: 0.27 lbs
