JBL 8" Commercial Series Ceiling Speaker | 15 Watt | 100V/70V/25V (CSS8008)

The JBL CSS8008 delivers professional-grade audio performance in a compact 8-inch ceiling-mounted design. Built for commercial installations, this 15-watt speaker features a 96 dB sensitivity rating that maintains clarity and intelligibility across distributed audio systems. The pre-attached multi-tap transformer accommodates 100V, 70V, and 25V line configurations, providing flexible integration into existing infrastructure. Its 120° conical coverage pattern ensures consistent sound distribution throughout medium-sized spaces. UL1480 and UL2043 certifications qualify this unit for fire alarm and air-handling applications, while the durable zinc-plated steel grille and pre-assembled driver simplify installation. Ideal for paging, background music, and emergency notification systems in commercial environments.

Features
High Sensitivity: 96 dB sensitivity provides maximum sound level at low tap settings.
Multi-tap Transformer: Pre-attached 5-Watt transformer for use on 25V, 70V, and 100V distributed lines.
Wide Coverage: Features a 120° conical coverage pattern for excellent clarity and intelligibility.

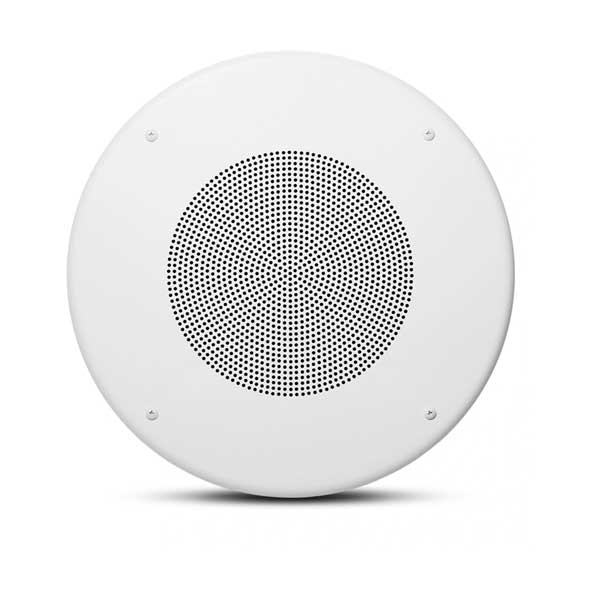

Durable Construction: Grilles are made of painted, zinc-plated, cold-rolled steel.

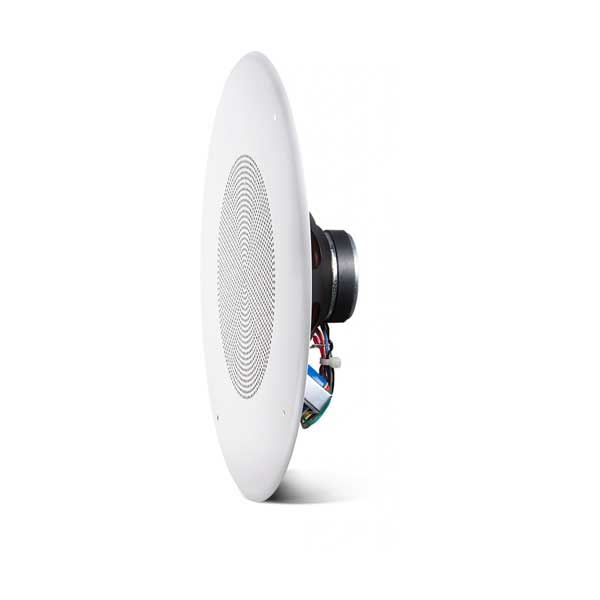

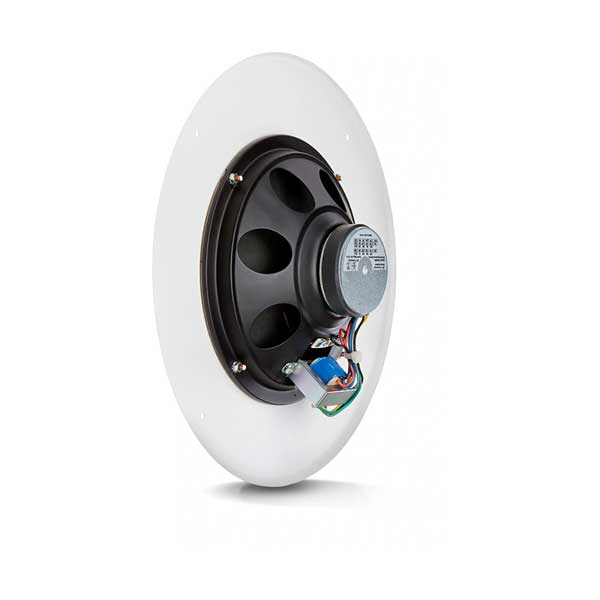

Easy Installation: Speaker grille and transformer come pre-attached to the driver.
Certifications: UL listed (UL1480, UL2043, etc.) for safety and fire signaling applications.

Specifications
Driver Size: 200 mm (8 in) full-range, dual-cone driver
Power Handling: 15 Watts continuous power handling
Frequency Range: 55 Hz – 16 kHz (-10 dB, driver/grille assembly)
Sensitivity: 96 dB (2 kHz - 6 kHz, 1W, 1m)
Transformer Taps: 100V: 5W, 2.5W, 1.3W; 70V: 5W, 2.5W, 1.3W, 0.7W; 25V: 5W, 2.5W, 1.3W, 0.7W
Coverage Angle: 120° conical
Input Connection: Bare wire
Backcan Options: Compatible with optional CSS-BB back-cans (CSS-BB8X6, MTC-81BB8, etc.)
Weight: 2.8 lb (1.27 kg)
