Features
8K UltraHD Support: Enables resolutions up to 7680x4320 @60Hz (4:2:0 color) or 7680x4320 @30Hz (4:4:4 color).
Gaming-ready: Supports 4K resolution at 120Hz, which is ideal for next-gen gaming consoles.
High Dynamic Range (HDR+): Delivers a wider range of colors and detail on compatible displays.
Premium Audio: Supports advanced audio formats, including DSD, Dolby TrueHD, and DTS-HD.

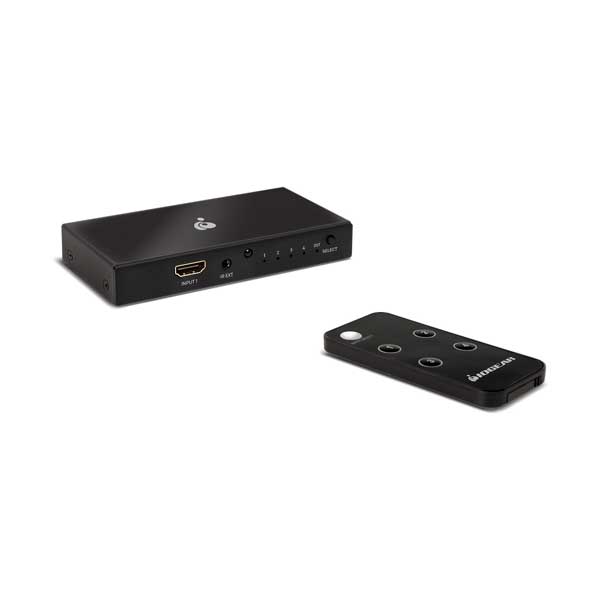

Easy Switching: Allows you to switch between the four HDMI sources via a front-panel pushbutton or the included IR remote control.
Flexible Inputs: Features one HDMI port on the front for easy access for temporary devices and three on the rear for permanent connections.
Hidden Placement: Includes a built-in IR extension port for placing the switch out of sight (IR extension cable sold separately).
Metal Casing: Ensures durability and efficient heat dissipation.
HDMI 2.1 and HDCP 2.2 compliant: Ensures compatibility with the latest standards.
Plug-n-Play: No additional software is required for setup.
Front-panel LEDs: Provides clear indicators for power and input port status.
Specifications

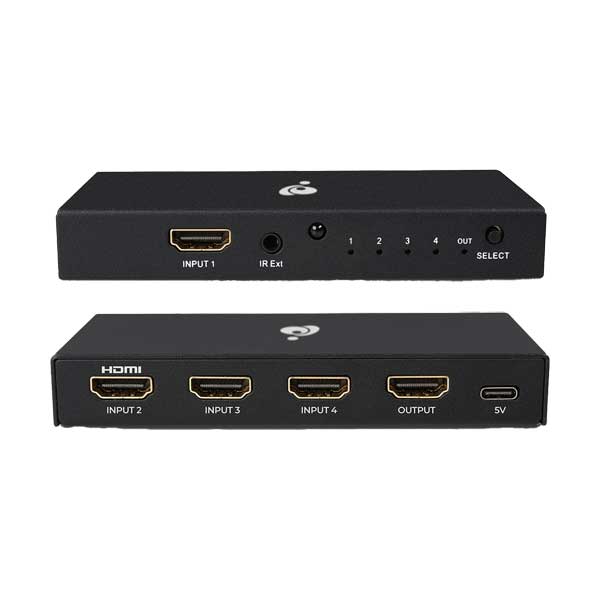

Ports: 4x HDMI 2.1 In, 1x HDMI 2.1 Out
Input/Output Connectors: 4x Female HDMI Type A (19-Pin) Input, 1x Female HDMI Type A (19-Pin) Output
Other I/O: 1x 3.5mm IR Input, 1x USB-C for power
Max Resolution: 8K (7680x4320) @60Hz
Data Rate: Up to 48 Gbps
Video Compliance: HDMI 2.1, HDCP 2.2
Audio Compatibility: DSD, Dolby TrueHD, DTS-HD
Power: 5V DC at 1A via USB-C
Color Depth: 8-bit, 10-bit, and 12-bit
Operating Temp: 14° to 131°F / -10° to 55°C
Storage Temp: -4° to 158°F / -20° to 70°C
Dimensions (L x W x H): 4.7 x 2.6 x 0.7 inches
Housing: Metal
Weight (lbs): 0.44 lbs (7.05 oz)
