Description
- 10 x 100Mbps network ports (RJ45), including 8 PoE ports
- Multiple working modes to address your business needs:Normal, Secure and Surveillance
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 820 ft transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
- NDAA Compliant

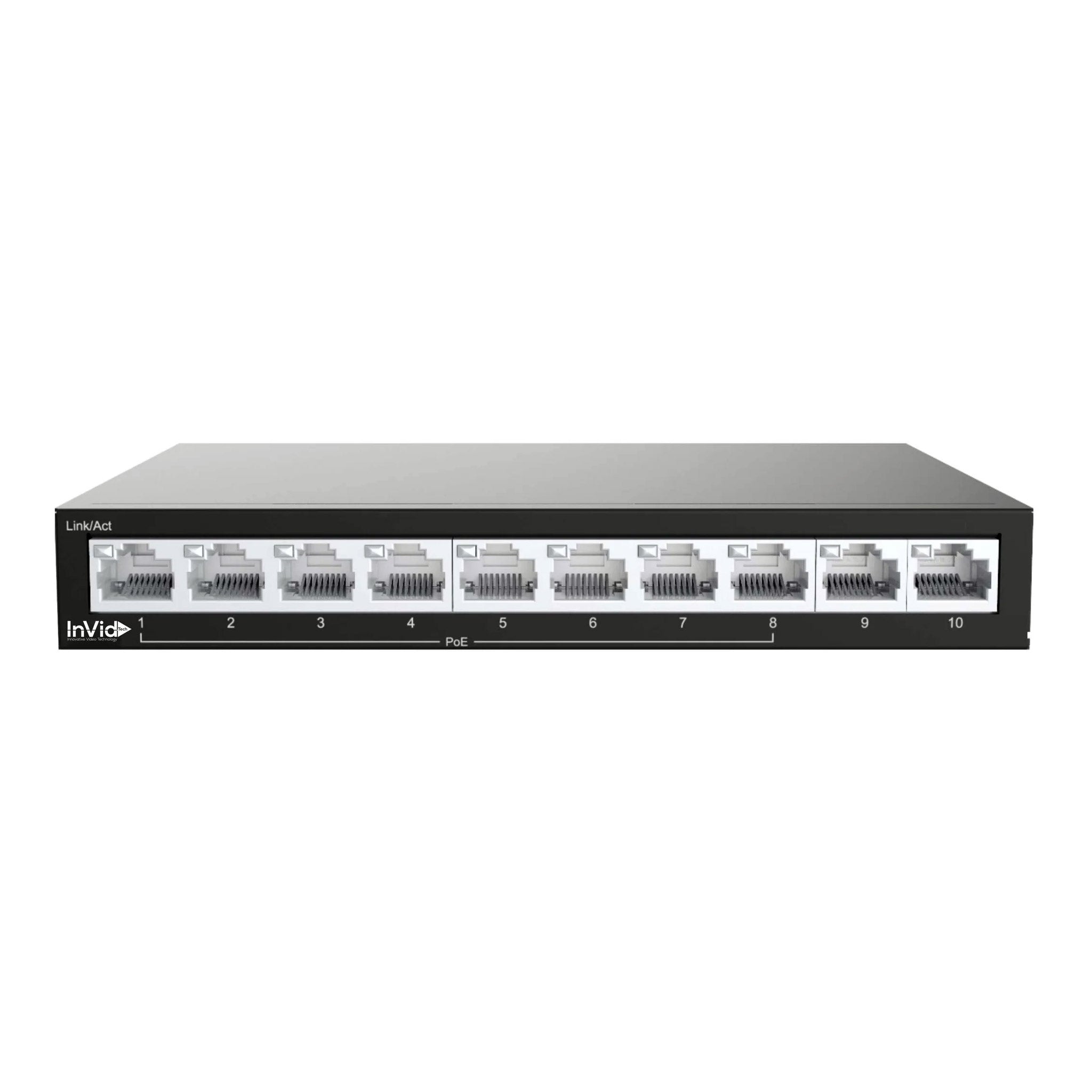

The InVidTech VIS-LRPOE8-2AN 8-Port PoE Switch packs 10 x 100Mbps network ports with 8 PoE ports and multiple working modes to address your business needs. The switch offers up to 820 ft transmission distance on surveillance mode, supports port traffic control, secure mode, buffer optimization, and is NDAA Compliant. With its all metal housing, you can be sure that your network is always safe and reliable.
- Ports: 10×100Mbps network ports (RJ45), including 8 PoE ports
- Standards: IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at
- Switching capacity: 2Gbps
- Forwarding performance: 1.49Mpps
- Packet Buffer: 448Kbit
- MAC: 1K
- Dimensions (W×D×H): 6.7 x 4 x 1 in (171*101*25.5mm)
- Weight: 0.64 lb (0.29KG)
- Power supply: DC: 48/51V
- PoE: 802.3at/af (4/5+, 7/8-)
- Max. PoE Power: Max capacity: 88W / Max capacity for single port: 30W
- Prior Ports: 1 ~ 2
- Cooling Fans: 0
- Operating temperature: 32°F ~ 104°F (0°C-40°C)
- Operating humidity: 10% ~ 90% (noncondensing)
- Storage humidity: 5% ~ 90% (noncondensing)
- Max. PoE Power: Max capacity: 225W / Max capacity for single port: 30W
- Indicator
- POWER:
- Steady on: AC input is normal
- Off: No AC input
- PoE:
- Off: No PoE power supply
- Steady on: PoE power supply is normal
- PoE-MAX:
- Off: The POE power supply power of the whole machine is less than 80% of the specification
- Steady on: The POE power supply power of the whole machine is greater than 85% of the specification
- LINK/ACT:
- Off: No link
- Steady on: Linked
- Flashing: Transmitting data
- Working Mode
- Defaul t(Normal mode) : All ports can communicate with each other
- VLAN (Secure mode): Downlink ports can communicate only with uplink ports.
- Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time.
- Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
- Certification UL: A6158, E496771
