Features

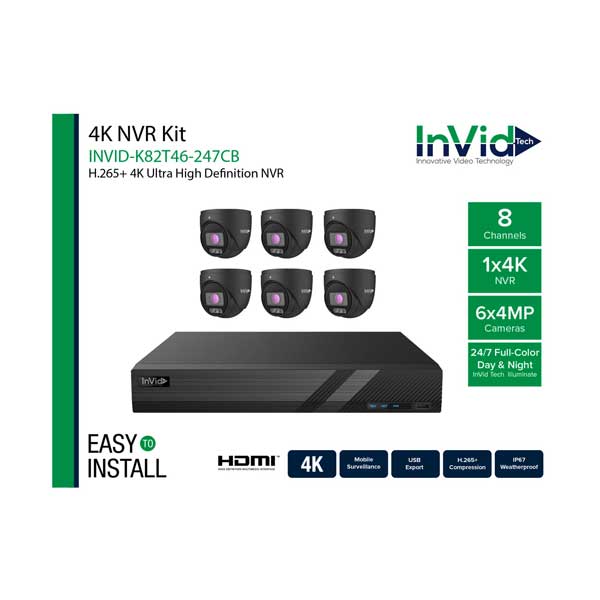

Complete High-Definition Bundle: Includes one commercial-grade 8-channel NVR and six high-performance 4MP color night vision turret cameras for expansive coverage.
InVid Tech Illuminate 24/7 Full Color: Captures rich, vivid color video day and night in ultra-low light levels down to 0.0003 Lux without relying on harsh external spotlights.
True AI Event Classification: Maximizes perimeter defense accuracy with built-in human and vehicle distinction algorithms that filter false alarms during line crossing and intrusion detection.
Instant Plug-and-Play Setup: Built-in 8-port PoE switch passes power and high-speed network communication over a single Ethernet cable per camera.
True P2P Connectivity: Simplifies off-site configuration with immediate QR code remote viewing capabilities over smartphones, tablets, and desktop software.
Smart Thumbnail Search: Accelerates post-incident investigation with intelligent visual search options for rapid video retrieval.
Specifications
Camera Specifications (PAR-P4TXIRL28BNH-AIJB)
Image Sensor & Size: 1/1.79" CMOS; 4 Megapixel (2688 × 1520) @ 30 FPS
Lens Parameters: 2.8mm fixed lens (Horizontal FoV: 112°, Vertical FoV: 61°, Diagonal FoV: 133°)
Minimum Illumination: 0.0003 lux @ F1.0 (AGC ON); 0 lux with illumination active
Wide Dynamic Range: Digital WDR
Image Enhancement Features: BLC, HLC, Defog, 3D DNR, Image Flip & Mirror
Video Compression Standards: Main/Sub/Third Stream: H.265+, H.265, H.264+, H.264; MJPEG supported on sub-streams
Audio Interfacing: 1-channel input, 1-channel output, and 1-channel built-in microphone (G.711A / U compression)
Intelligent Edge Analytics: Line crossing, region intrusion/entrance/exiting (with human/vehicle classification), abandoned/missing object detection, crowd density detection, face detection, face capture, and video metadata extraction (13 human, 5 motor vehicle, and 1 non-motor vehicle features)
Local Storage Option: Built-in micro SD card slot supporting up to 1TB
Ingress Protection Rating: IP67 weatherproof housing
Power Supply: DC12V or standard PoE (IEEE802.3af) | Consumption: < 5.5W
- NVR Specifications (PN1B-8X8NH2)
Operating System: Embedded Linux
Network Input & Resolution: 8-Channel IPC input supporting up to 8MP recording resolution
Bandwidth Capacity: 80 Mbps Incoming / 80 Mbps Outgoing
Local Video Output: 1 x HDMI (up to 3840 × 2160), 1 x VGA (up to 1920 × 1080)
Audio Interfaces: 8-channel IPC network audio input; 1 x RCA Local Input, 1 x RCA Local Output
Playback & Decoding Capability: Simultaneous 8-channel playback; local performance of 1-ch 8MP @ 30fps or 6-ch 1080P @ 30fps
Storage Interface: 1 x SATA 3.0 port supporting up to an 18TB hard drive
Local Backup Support: USB 2.0 ports (supports local USB storage or USB to HDD up to 1TB max)
AI Device Performance: 2-channel 2MP Face Detection by device; 2-channel Human/Vehicle Classification by device (Does NOT support face matching recognition)
PoE Interface Standards: 8 x 100M RJ45 ports complying with IEEE802.3af/at standards | Output Power: ≤ 72W
Power Demand & Efficiency: DC 48V / 1.8A | Consumption: ≤ 10W (without hard drive installed)
NVR Dimensions: 11.8" x 9.8" x 1.7"
Camera Dimensions: Ø 4.4" x 3.9"
Camera Net Weight: Approx. 1.53 lbs
