Features

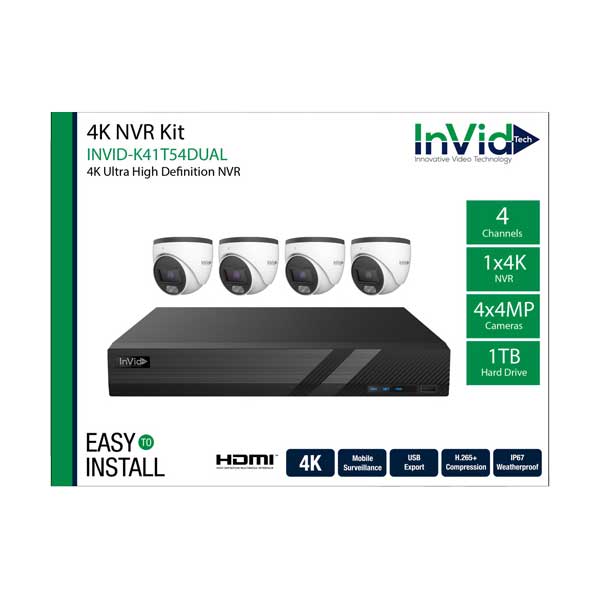

All-in-One Security Kit: Streamlines installation by pairing four high-definition 4MP turret cameras with a dedicated 4-channel NVR framework.
Instant Plug-and-Play Setup: Built-in 4-port PoE (Power over Ethernet) switch delivers power and data directly to all cameras over a single cable without manual network mapping.
Adaptive Light Options: Turret cameras feature smart supplemental light flexibility, switching dynamically between IR, white light, or white light triggers to deter intruders.
Advanced Edge Analytics: Supported by ONVIF to deliver precise first-level human and vehicle classification, line crossing, and region intrusion detection.
Efficient Storage Customization: Supplied without an internal HDD so you can tailor your capacity up to 18TB, using H.265S/H.265+ compression to save critical bandwidth.
Secure True P2P Remoting: Generates instant remote access setups via a simple QR code scan for cross-platform control using free iOS, Android, and Mac/PC CMS apps.
Specifications
Camera Specifications (PAR-P4TXIR28-LC3)
Image Sensor & Resolution: 1/3" CMOS; 4 Megapixel (2560 × 1440) @ 30 FPS
Lens Parameters: 2.8mm fixed lens (Horizontal FoV: 94°, Vertical FoV: 50°, Diagonal FoV: 115°)
Wide Dynamic Range: True WDR 120dB
Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
Audio Interfacing: Built-in microphone with G.711A/U compression
Local Storage Option: Built-in micro SD card slot supporting up to 256GB
Ingress Protection: IP67 weatherproof housing
Illumination Range: IR and White Light ranges up to 98 feet (30m)
Power Demand: 12VDC or standard PoE (IEEE802.3af) | Consumption: < 6W
NVR Specifications (PN1B-4X4NH2)
Operating System: Embedded Linux
Network Input & Bandwidth: 4-Channel IPC input | 80 Mbps incoming and 80 Mbps outgoing bitrate
Recording Resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280×1024, 960P, 720P, 960H, D1, CIF
Local Video Output: 1 x HDMI (up to 3840×2160), 1 x VGA (up to 1920×1080)
Audio Connections: 1 x RCA local input (for two-way audio), 1 x RCA local output
Decoding Performance: 1-channel 8MP @ 30fps or 6-channel 1080P @ 30fps local playback
Storage Interfacing: 1 x SATA 3.0 slot supporting up to an 18TB hard drive (HDD not included)
Local Backup Support: USB 2.0 ports (Supports USB to HDD up to 1TB max) or Network backup
AI Processing Capacities: 2-Channel 2MP Face Detection by device; 4-Channel Human/Vehicle Classification (Does not support facial recognition matching)
PoE Interface & Budget: 4 x 100M RJ45 ports obeying IEEE802.3AF/AT standards | Max Output: ≤ 48W
Power Input & Efficiency: DC 48V / 1.25A | NVR Consumption: ≤ 10W (without drive)
NVR Dimensions: 11.8" x 9.8" x 1.7" (300mm × 249mm × 45mm)
Camera Dimensions: 3.7" x 3.3" (Φ 94.6mm × 82.8mm)
Camera Net Weight: Approx. 0.99 lbs (0.45 kg)
