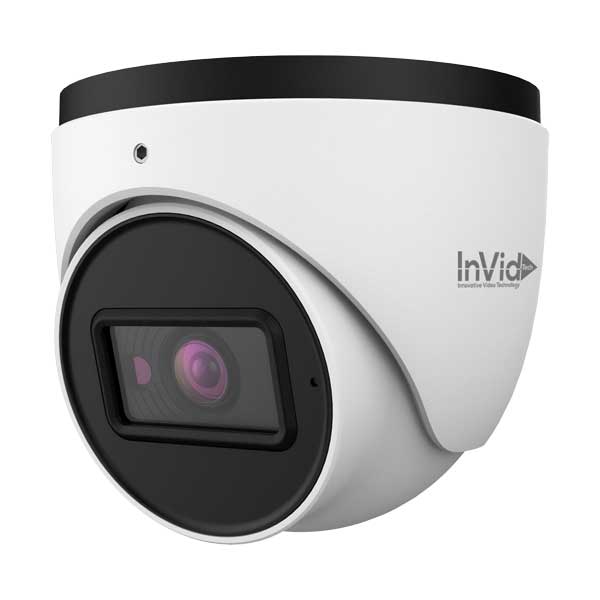

InvidTech 2MP 2.8mm D-WDR 4-in-1 TVI Turret Camera | IP67 | White | PAR-ALLTXIRA28

SKU: PAR-ALLTXIRA28
MFR#:
PAR-ALLTXIRA28

Regular price $44.99
Regular price Sale price $44.99


Regular price $44.99
Regular price Sale price $44.99

Overview


Description

Professional 2MP hybrid turret camera built for legacy coax systems. The InVid PAR-ALLTXIRA28 delivers 1080p HD video with integrated Audio over Coax, eliminating the need for separate audio cables. Its 4-in-1 compatibility works with TVI, AHD, CVI, and analog formats, making it ideal for mixed-signal installations. IP67 weatherproofing handles extreme conditions from -22°F to 122°F, while 98 feet of smart infrared night vision ensures round-the-clock surveillance. Advanced features include Digital Wide Dynamic Range, dual noise reduction, and UTC coaxial control for easy DVR configuration. NDAA-compliant and engineered for both commercial installers and residential security needs.

Specifications

Features
Versatile 4-in-1 Hybrid Output: Integrates seamlessly with existing multi-format systems, supporting TVI, AHD, CVI, and traditional Analog 960h signals.
Integrated Audio over Coax (AoC): Features a built-in microphone that streams high-quality audio and HD video over a single coaxial run, eliminating separate audio cables.
Heavy-Duty Weatherproofing: IP67-certified housing provides superior protection against severe dust, driving rain, and sub-zero elements.
Long-Range Night Vision: Engineered with smart True Day/Night functionality and an adaptive infrared array providing up to 98 feet of nocturnal visibility.
Digital Noise Reduction (DNR): Utilizes dual 2D and 3D DNR filters to remove graininess and sharpen low-light surveillance playback.
Streamlined Control (UTC): Leverages Up The Cable functionality to let users configure the camera's OSD menu settings straight from the DVR interface.

Specifications
Image Sensor: 1/2.8” CMOS
Max Resolution: 2MP (1920 x 1080) @ 30 FPS
Video Output Formats: AHD, TVI, CVI, CVBS
Lens Parameters: 2.8mm fixed lens (M12 lens mount)
Minimum Illumination: 0.005 lux @ F1.2 (AGC ON); 0 lux with IR active
S/N Ratio: ≥52dB (AGC OFF)
Audio Capabilities: Built-in microphone with Audio over Coax (AoC) support (TVI format only; requires Paramont v1.3.8+ or Vision DVRs)
Audio Sensitivity: -36dB
Image Enhancement Features: Digital Wide Dynamic Range (D-WDR), Smart IR, 2D DNR, Auto White Balance, Backlight Compensation (BLC), Highlight Compensation (HLC), Auto Defect Correction
Camera Adjustment Angles: Pan: 0° to 360°; Tilt: 0° to 75°; Rotation: 0° to 360°
Operating Controls: OSD Menu control via coaxial communication (COC Control)
Power Supply Requirement: DC12V (± 15%)
Power Consumption: IR Off: < 1W; IR On: < 4W
Working Environment: -22°F to 122°F (-30°C to 50°C) | 10% to 90% Relative Humidity
Ingress Protection Rating: IP67 Weatherproof
Compatible Accessories: IPM-JB6 (Junction Box #6), IPM-TXWM1A (Wall Mount #1)
Compliance: NDAA Compliant
Dimensions (L x W x H) (inches): Ф 3.7" x 3.3" (Ф 94.6mm x 82.8mm)
Net Weight: Approx. 0.93 lbs
