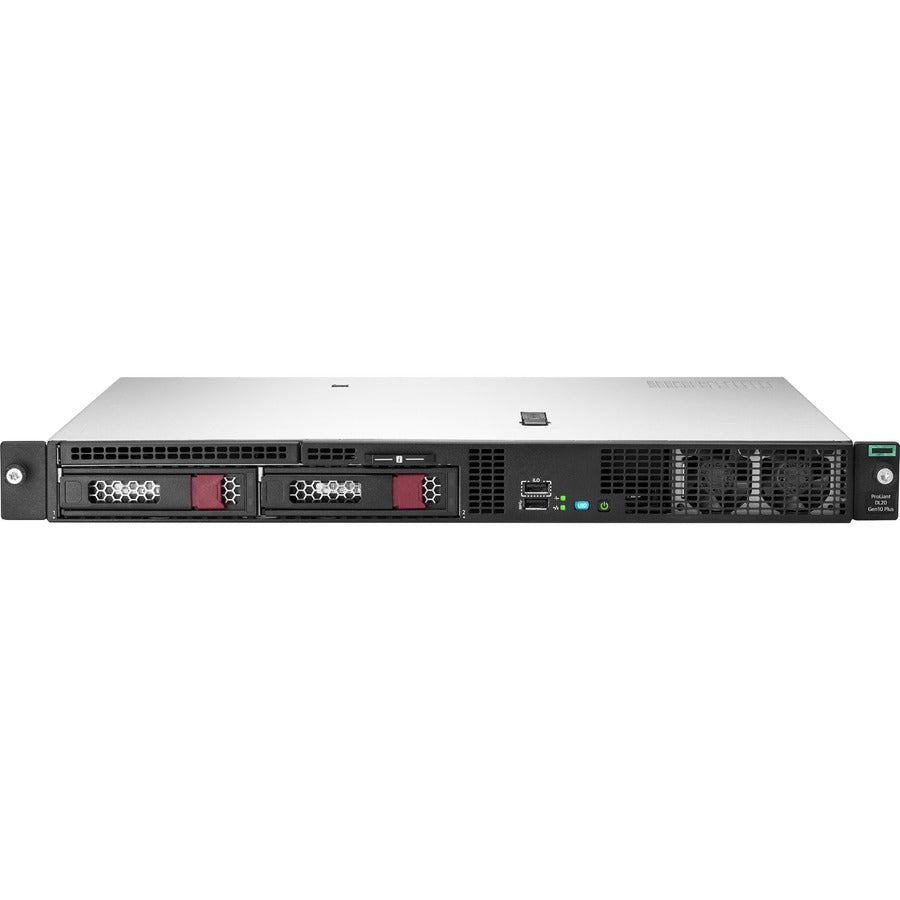

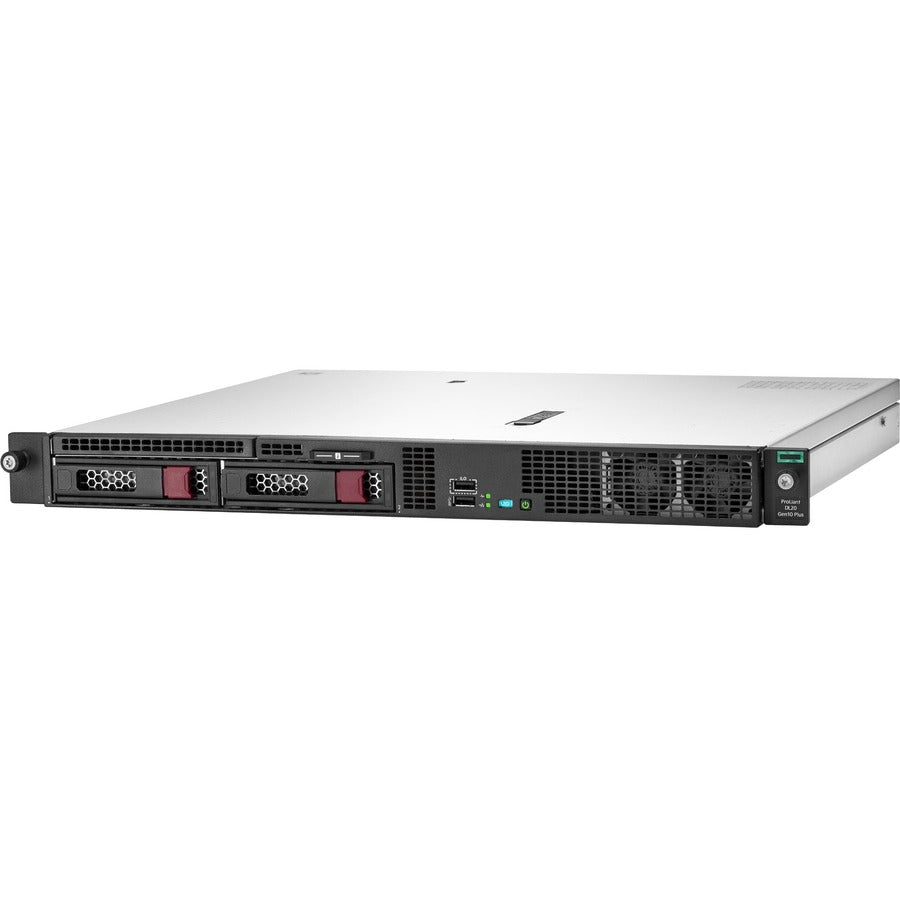

HPE P44112-B21 ProLiant DL20 G10 Plus 1U Intel Xeon Rack Server

HPE P44112-B21 ProLiant DL20 G10 Plus 1U Rack Server - 1 x Intel Xeon E-2314 2.80 GHz - 8GB RAM - Serial ATA Controller
The HPE P44112-B21 ProLiant DL20 G10 Plus is a 1U rack server designed for small to medium-sized businesses. It features a single Intel Xeon E-2314 processor running at 2.80 GHz and 8 GB of RAM.

The server comes equipped with a Serial ATA controller, which is used to connect and manage SATA hard drives. It also includes several other features such as hot-swappable drive bays, dual Gigabit Ethernet ports, and an integrated iLO (Integrated Lights Out) remote management interface.

Overall, the HPE P44112-B21 ProLiant DL20 G10 Plus is a reliable and efficient server that is well-suited for a variety of business applications. Its compact form factor makes it ideal for organizations with limited rack space, while its powerful hardware specifications allow it to handle demanding workloads with ease. However, the 8 GB of RAM may be limiting for some applications, so it may be necessary to upgrade the RAM for optimal performance.

Processor

Number of Processors Supported:   1
Number of Processors Installed:   1
Processor Manufacturer:   Intel
Processor Type:   Xeon
Processor Model:   E-2314
Processor Core:   Quad-core (4 Core)
Processor Speed:   2.80 GHz
Cache:   8 MB


Chipset

Chipset Manufacturer:   Intel
Chipset Model:   C256


Memory

Standard Memory:   8 GB
Maximum Memory Supported:   128 GB
Memory Technology:   DDR4 SDRAM
Error Checking:   ECC
Number of Total Memory Slots:   4
Number of Occupied Memory Slots:   1
Signal Processing:   Unregistered (Unbuffered)


Storage

Optical Drive Type:   No


Controllers

Controller Type:   Serial ATA


I/O Expansions

Number of Total Expansion Bays:   3
Number of External 5.25" Bays:   1
Number of 3.5" Bays:   2
Number of LFF Bays:   2
Hot Swappable Bays:   No
Number of Total Expansion Slots:   2
PCI Express Details:   2 PCIe 4.0 slots


Display & Graphics

Graphics Controller Manufacturer:   Matrox
Graphics Controller Model:   G200
Graphics Memory Capacity:   16 MB
Network & Communication
Ethernet Technology:   Gigabit Ethernet


Interfaces/Ports

Total Number of USB Ports:   5
Network (RJ-45):   Yes
Number of Network (RJ-45) Ports:   2
VGA:   Yes
Number of VGA Ports:   1
Remote Management:   Yes
Remote Management Controller:   iLO Management (standard), Intelligent Provisioning (standard)


Operating System

Operating System Supported:   Hyper-V
Operating System Supported:   SUSE Linux Enterprise Server 12
Operating System Supported:   SUSE Linux Enterprise Server 12 SP5
Operating System Supported:   SuSE Linux Enterprise Server 15
Operating System Supported:   SUSE Linux Enterprise Server 15 SP3
Operating System Supported:   Windows Server 2019 Datacenter
Operating System Supported:   Red Hat Enterprise Linux 8.4
Operating System Supported:   Windows Server 2019
Operating System Supported:   Windows Server 2019 Essentials
Operating System Supported:   Windows Server 2019 Standard
Operating System Supported:   Windows Server 2022
Operating System Supported:   Windows Server 2022 Datacenter
Operating System Supported:   Windows Server 2022 Essentials
Operating System Supported:   Windows Server 2022 Standard
Operating System:   No


Power Description

Input Voltage:   120 V AC
Input Voltage:   230 V AC
Number of Power Supplies Supported:   1
Number of Power Supplies Installed:   1
Plug/Connector Type:   C13/C14
Maximum Power Supply Wattage:   290 W
Redundant Power Supply:   No
Hot Swappable Power Supply:   No


Physical Characteristics

Form Factor:   Rack
Rack Height:   1U
Height:   1.7"
Width:   17.1"
Depth:   15"
Weight (Approximate):   20.86 lb


Miscellaneous

Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   WEEE
Environmental Certification:   EU WEEE


Warranty

Limited Warranty:   3 Year




Package Contents


ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 8GB-U 2LFF-NHP 290W PS Server
Short Friction Rail Kit
6-foot IEC C-13/C-14 Jumper Cord


Security Features


UEFI Secure Boot and Secure Start support
Immutable Silicon Root of Trust
FIPS 140-2 validation
Common Criteria certification
Configurable for PCI DSS compliance
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
Support for Commercial National Security Algorithms (CNSA)
iLO Security Modes including a New iLO Advanced Premium Security License
Granular control over iLO interfaces
Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
Tamper-free updates - components digitally signed and verified
Secure Recovery - recover critical firmware to known good state on detection of compromised FW
Ability to rollback firmware
Secure erase of NAND
TPM (Trusted Platform Module) 2.0 Gen10
Bezel Locking Kit
Intel® Software Guard Extensions (Intel® SGX)
