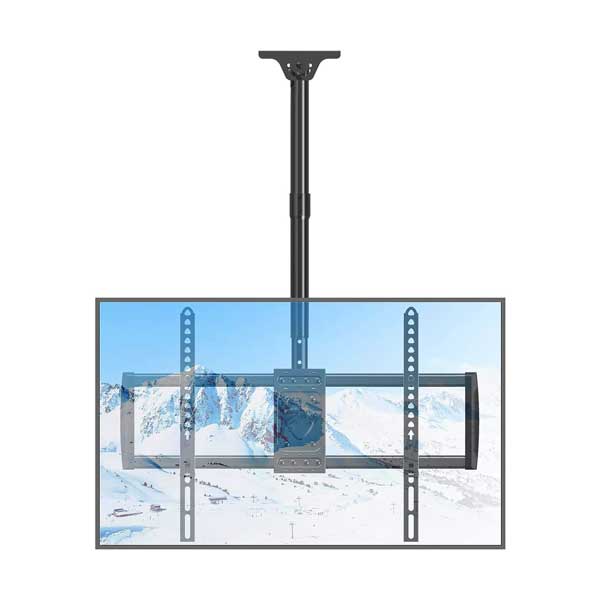

Heavy Duty Ceiling TV Mount for 40-75 Inch TV's | 360° Rotation | MU0040

The MU0040 is a heavy-duty ceiling mount engineered for 40–75 inch flat and curved displays, supporting up to 99 lbs. It features full 360° swivel rotation, anti-glare tilt adjustment (±5° to −15°), and a telescoping pole with 12 locking positions ranging from 26.1 to 56.9 inches. The 120° joist adjustment plate accommodates flat, pitched, and vaulted ceilings up to 30° slope, making it ideal for restaurants, offices, fitness centers, and residential spaces. Built from heavy-duty alloy steel with integrated cable management through the hollow center pole, it delivers secure, flexible viewing angles with minimal installation clutter.

Features
Full-Motion 360° Swivel: Rotate your display effortlessly in any direction to serve open-concept layouts and multi-angle viewing zones.
Anti-Glare Angle Tilt: Adjust screen angles between +5° upward and -15° downward to reduce reflections in sunlit rooms or commercial lighting setups.
Telescoping Height Adjustment: Customize screen drop with 12 pre-drilled locking height positions spanning 26.1 inches to 56.9 inches.
Sloped Ceiling Compatibility: Features a 120° joist adjustment plate to secure onto flat, pitched, or vaulted ceilings (up to 30° slope).
Integrated Cable Management: Route power and video cables directly through the hollow center pole for a clutter-free installation.

Specifications
Supported Screen Sizes: 40" – 75" (Flat and Curved screens)
Maximum Weight Capacity: 99 lbs (45 kg)
VESA Compatibility: 100x100 mm to 600x400 mm
Swivel Range: 360° continuous rotation
Tilt Range: +5° / -15°
Ceiling Plate Adjustment: 120° total pivot (accommodates up to 30° ceiling slope)
Vertical Extension Range: 26.1" to 56.9" (Max overall pole height: 60.6")
Mounting Pattern Type: Flat, vaulted, and slanted ceiling joists (single stud/concrete; do not mount on drywall alone)
Material & Finish: Heavy-duty alloy steel, matte black
Dimensions (L x W x H): Max pole height: 60.6 inches (Adjustable extension: 26.1" – 56.9" H)
Weight: Rated capacity: 99 lbs
