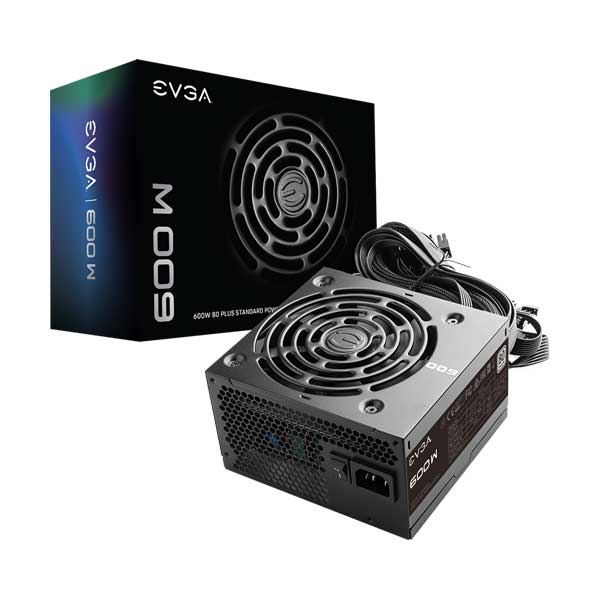

EVGA 600W 80Plus Power Supply (100-W1-0600-K1)

The EVGA 600W 80Plus Power Supply (100-W1-0600-K1) offers a 3-year warranty and is 80 PLUS certified with up to 80% efficiency under typical loads. It also provides heavy-duty protections, including OVP, UVP, OCP, OPP, SCP, and OTP. Featuring a quiet and intelligent auto fan, this power supply is perfect for 8th generation Intel Core processors and supports up to 49A on a single +12V rail. With a compact design and fully sleeved cables, it saves space and improves cable management. This power supply is ideal for basic system builds and comes backed with a 3-year warranty and ultra-quiet fan for a low cost.

Features:
• 600W Power Supply
• 3 Year Warranty
• 80 PLUS Certified
• Up to 80% efficiency under typical loads
• Heavy-duty protections, including:
• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OCP (Over Current Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)
• OTP (Over Temperature Protection)
• Quiet and Intelligent Auto Fan for near-silent operation
• Ready for 8th Generation Intel Core Processors (C6/C7 Idle Mode)
• Single +12V rail providing up to 49A

Specifications:
• AC Input: 100-240 VAC, 10/5A, 50-60 Hz
• DC Output:
• - +5V: 20A
• - +3.3V: 24A
• - +12V: 49A
• - -12V: 0.3A
• - +5Vsb: 3A
• Max Output:
• - +5V & +3.3V Combined: 130W
• - +12V: 588W
• - +5Vsb & -12V Combined: 15W
• Total Power: 600W
• Efficiency: 80% Typical
• MTBF: 100,000 Hours
• Operating Temperature: 0° to 40° C
• Fan Size / Bearing: 120mm Sleeve Bearing
• Connectors:
• - 1x 24-pin ATX
• - 1x 8-pin EPS12V (4+4 pin)
• - 2x 8-pin PCI-E (6+2 pin)
• - 3x 4-pin Peripheral
• - 6x SATA
• - 1x Floppy
• Noise Level: 24-26dBA Typical
• Weight: 4.07 lbs
