Eaton Tripp Lite 600W 12V Pure Sine Wave Power Inverter | PINV600SW-120

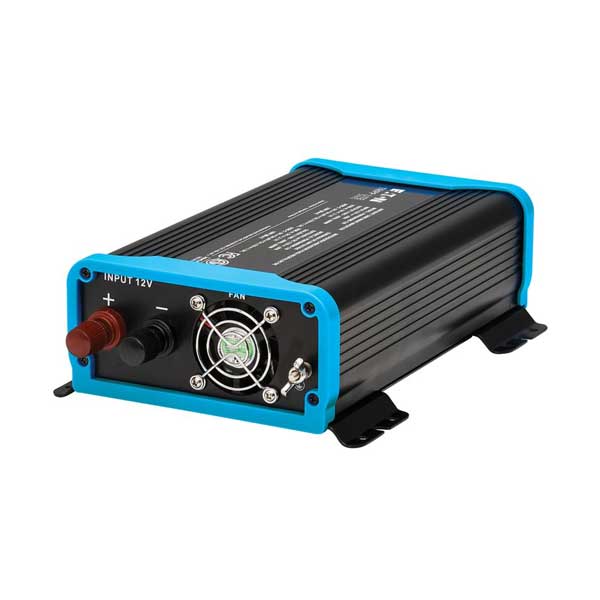

The Eaton Tripp Lite PINV600SW-120 delivers 600W continuous (1200W peak) of pure sine wave power, converting 12V DC battery power into clean, utility-grade AC electricity. Ideal for fleet vehicles, work trucks, RVs, and remote job sites, this rugged inverter safely powers sensitive electronics, laptops, power tools, and mobile devices without interference or distortion. Dual NEMA 5-15R AC outlets combine with USB-A (2.1A) and USB-C (18W) ports for versatile simultaneous charging. Built with aluminum housing and protective end caps, it features integrated side mounting brackets for secure vehicle installation. Comprehensive safety protections include automatic shutdown, low/high voltage alerts, thermal overload detection, and short-circuit protection. Ships complete with heavy-duty DC terminal battery cables, ring terminals, and grounding hardware for straightforward setup. UL Listed, CSA certified, and backed by a 2-Year Limited Worldwide Warranty.

Features:
Pure Sine Wave Output: Produces smooth, utility-grade AC power to safely operate sensitive electronics, laptops, power tool battery chargers, and delicate equipment without line noise or overheating.

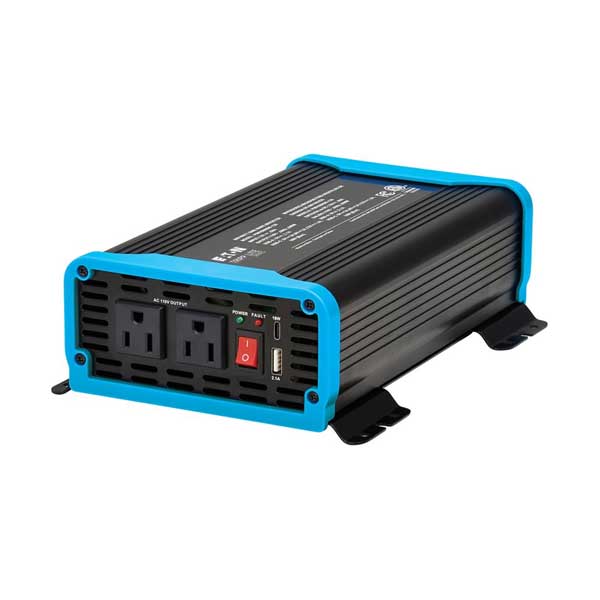

Versatile Multi-Port Charging: Features two NEMA 5-15R AC receptacles alongside built-in USB-A (2.1A) and USB-C (18W) ports for simultaneous equipment operation and rapid mobile device charging.
Rugged Heavy-Duty Housing: Built with an aluminum enclosure and blue protective end caps to withstand demanding field conditions, vehicle vibrations, and outdoor use.
Permanent Mounting Support: Built-in side mounting flanges allow secure, permanent horizontal installation inside service vehicles, work trucks, or mobile workstations.
Multi-Stage Protection System: Includes automatic shutdown and active visual/audible alerts for low/high input voltage, thermal overload, and short circuits to protect both inverter and battery.

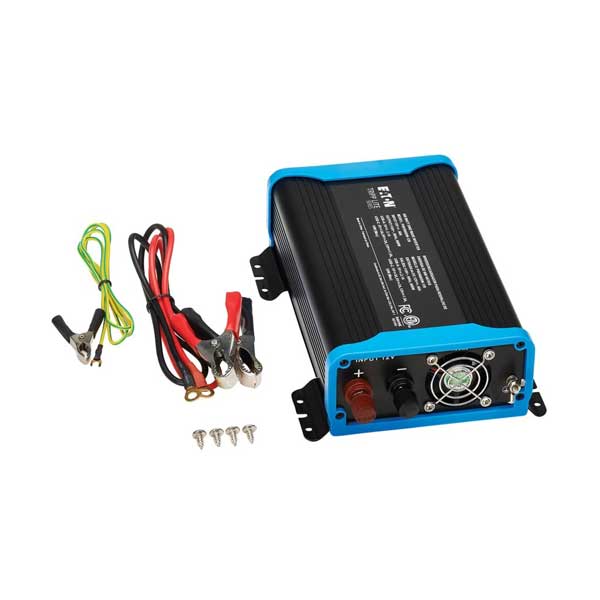

Complete Wiring Kit Included: Ships with heavy-duty DC terminal battery cables (1.5 ft) with ring terminals and dedicated grounding hardware for straightforward installation.

Specifications:
Continuous Power Capacity: 600 Watts
Peak Surge Capacity: 1200 Watts
Output AC Waveform: Pure Sine Wave
Input DC Voltage: 11V–15V DC
AC Outlets: 2 x NEMA 5-15R
USB Charging Outlets: 1 x USB-A (2.1A), 1 x USB-C (18W)
Cooling Method: Temperature-Controlled Cooling Fan
Front Panel LED Indicators: Green (Normal Operation), Red (Fault / Protection Mode)
Audible Alarms: Low battery voltage, high voltage, overload, low voltage shutdown, over-temperature
Certifications: UL Listed, CSA Std. C22.2, FCC Compliant
Warranty: 2-Year Limited Worldwide Warranty
Dimensions (L x W x H) (inches): 6.72 in x 10.37 in x 3.02 in
Weight (lbs): 4.32 lbs
