Eaton Tripp Lite 300W 12V Pure Sine Wave Power Inverter | PINV300SW-120

The Eaton Tripp Lite PINV300SW-120 is a 300W pure sine wave power inverter that converts 12V DC vehicle battery power into clean, utility-grade AC electricity. Ideal for service trucks, fleet vehicles, RVs, and remote job sites, this inverter delivers 600W peak surge power to safely operate laptops, power tools, smartphones, and sensitive electronics without harmonic distortion. Equipped with dual NEMA 5-15R AC outlets, USB-A (2.1A), and 18W USB-C charging ports, it supports simultaneous device charging. The rugged aluminum construction withstands harsh field environments, while built-in mounting flanges enable secure permanent installation. Advanced protection features include automatic shutdown, low/high voltage alarms, thermal overload detection, and short-circuit protection. Includes heavy-duty DC battery cables and grounding hardware for immediate setup. UL Listed, CSA certified, and backed by a 2-year limited worldwide warranty. Compact at 3.33 lbs, it's engineered for reliable mobile power wherever work demands.

Features:
Utility-Grade Pure Sine Wave Output: Delivers clean AC power to safely operate sensitive electronics, smartphones, laptops, and medical equipment without interference or electrical stress.
Multi-Port Power Capabilities: Provides two NEMA 5-15R AC outlets alongside dedicated USB-A (2.1A) and USB-C (18W) ports for simultaneous equipment and mobile device charging.

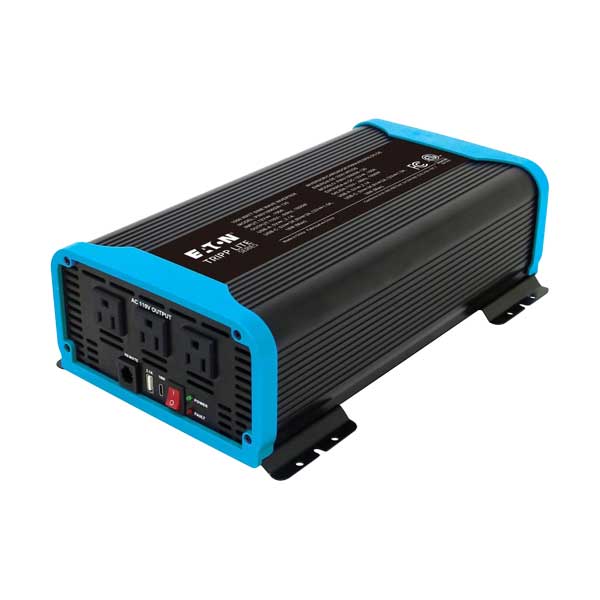

Rugged Aluminum Construction: Housed in a black aluminum enclosure designed to endure harsh environments, field use, and mobile mounting.
Permanent Mounting Support: Built-in side mounting flanges enable secure, permanent horizontal installation inside fleet vehicles, work trucks, or mobile offices.
Advanced Equipment Protection: Features integrated automatic shutdown and warning alarms for low/high input voltage, thermal overload, and short-circuit protection.

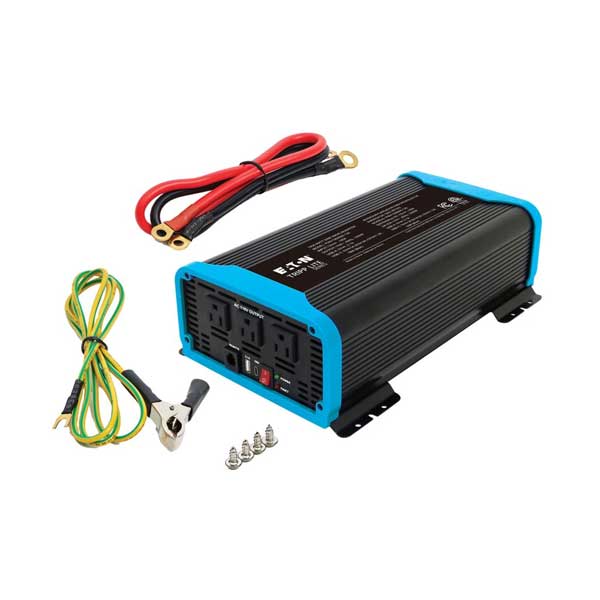

Complete Installation Kit: Includes heavy-duty ring-terminal DC battery cables (1.5 ft) and dedicated grounding hardware for immediate setup.

Specifications:
Continuous Power Output: 300 Watts
Peak Surge Power: 600 Watts
Output Waveform: Pure Sine Wave
Input DC Voltage: 11V–15V DC
AC Receptacles: 2 x NEMA 5-15R
USB Charging Outlets: 1 x USB-A (2.1A), 1 x USB-C (18W)
Cooling System: Temperature-controlled cooling fan
Status Indicators: Dual LEDs (Green = Normal, Red = Fault)
Audible Alarms: Low battery voltage, high voltage, overload, low voltage shutdown, and over-temperature
Certifications: UL Listed, CSA Std. C22.2, FCC Compliant
Warranty: 2-Year Limited Worldwide Warranty
Dimensions (L x W x H) (inches): 6.72 in x 9.11 in x 3.02 in
Weight (lbs): 3.33 lbs
