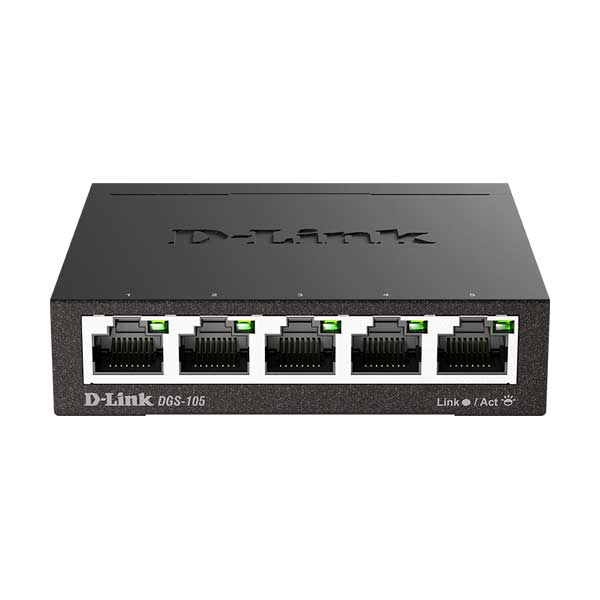

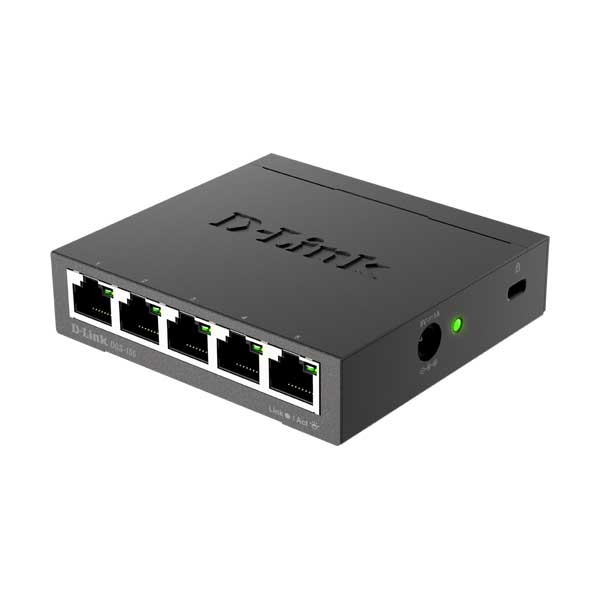

D-Link 5-Port Gigabit Unmanaged Desktop Switch (DGS-105)

The D-Link 5-Port Gigabit Unmanaged Desktop Switch (DGS-105) incorporates D-Link Green Technology to reduce power consumption by up to 80%, utilizing link status and cable length detection. It features Auto MDI/MDIX, removing the need for crossover cables, and supports both full and half-duplex modes for Ethernet and Fast Ethernet speeds. The switch includes IEEE 802.3x flow control to minimize packet loss and a cable diagnostics function to assess cable health. Its fanless design ensures silent operation and enhanced reliability, while the Kensington security slot enables physical protection. IGMP snooping optimizes multicast traffic for demanding applications such as IPTV.

Specifications
Ports: 5 x 10/100/1000Base-T Gigabit Ethernet ports.
Switching Capacity: 10 Gbps.
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet (EEE).
MAC Address Table Size: 2K entries. (Some sources indicate 8K entries).
RAM Buffer: 128KB per device.
Jumbo Frame Support: 9,000 Bytes (9KB).
QoS (Quality of Service): 4 Queues, strict mode, 802.1p support. (Some sources indicate 8 queues per port)
Case Material: Metal.
Installation: Plug-and-play.
Form Factor: Desktop/Wall Mount.
Power Supply: External Adapter.
Dimensions: 3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm). (Some variations exist in reported dimensions, likely due to rounding).
Operating Temperature: 32 to 130 ˚F (30 to 50 ˚C).
Operating Humidity: 10% to 90% RH non-condensing.
Certifications: FCC Class B, CE Class B, RoHS compliant, Energy Star compliant.
Weight: 1.13 lbs (0.51 kg)
UPC: 790069285981
