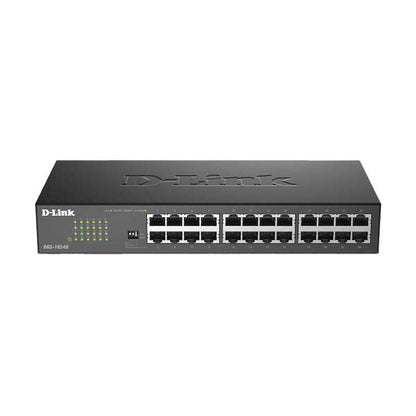

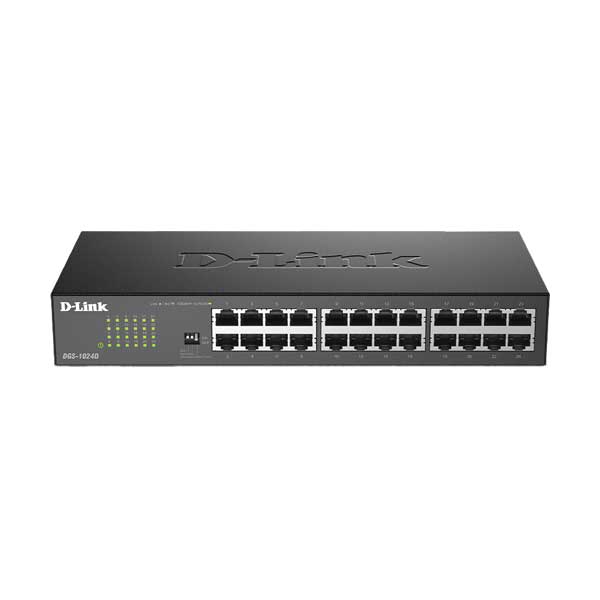

D-Link 24-Port Gigabit Unmanaged Desktop Switch (DGS-1024D)

The D-Link DGS-1024D is a 24-port Gigabit unmanaged desktop switch tailored for SOHO and SMB environments seeking enhanced network speeds. It offers cable diagnostics for troubleshooting and a 3-pin front panel DIP switch to control EEE, Flow Control, Port Isolation, and Storm Control. Each port supports Auto MDI/MDIX crossover and IEEE 802.3x Flow Control. Installation is plug-and-play, while the integrated QoS engine optimizes traffic. Energy efficiency is ensured through IEEE 802.3az EEE, link status detection, and cable length detection to minimize power consumption.

Features:
Cable diagnostics troubleshooting.
3-pin front panel DIP switch for toggling EEE, Flow Control, Port Isolation, and Storm Control.
Auto MDI/MDIX crossover on all ports.
IEEE 802.3x Flow Control.
Plug-and-play installation.
Integrated QoS Engine for traffic optimization.
IEEE 802.3az Energy-Efficient Ethernet (EEE).
Link status detection reduces power usage.
Cable length detection uses energy more efficiently.

Specifications:
Ports: 24 x 10/100/1000Base-T Auto MDI/MDIX ports.
Switching Capacity: 48 Gbps.
Maximum Forwarding Rate: 35.712 Mpps.
MAC Address Table Size: 8K entries.
Jumbo Frame Support: 9600 Bytes.
Packet Buffer Size: 512 KBytes.
Design:
Fanless design for silent operation.
Compact and durable metal housing.
Desktop or rackmountable.
Power Consumption:
Maximum: 13.3 W
Standby: 4.4 W
Green Features:
IEEE 802.3az Energy-Efficient Ethernet (EEE).
Link status detection reduces power usage.
Cable length detection uses energy more efficiently.
Warranty: Limited Lifetime Warranty.
Dimensions: 280 x 180 x 44 mm (11.02 x 7.08 x 1.73 in).
Weight: 1.3 kgs (2.98 lbs).
