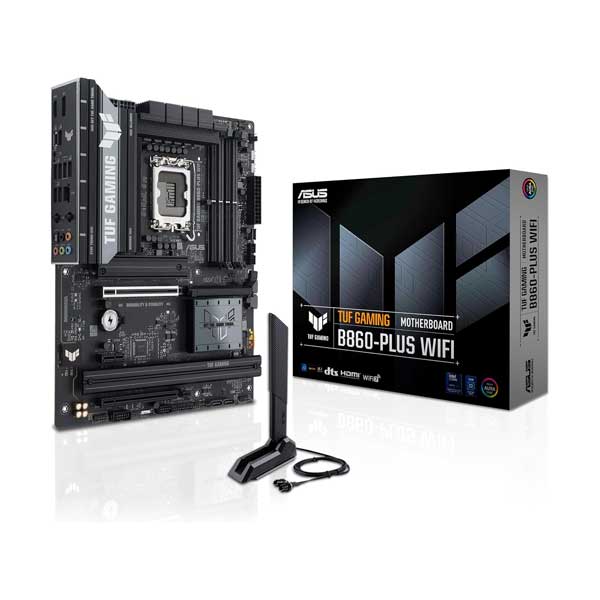

ASUS TUF GAMING B860-PLUS WIFI ATX Gaming Desktop Motherboard - LGA1851
SKU:
TUF GAMING B860-PLUS WIFI
MFR#:
TUF GAMING B860-PLUS WIFI
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Regular price
$219.99
Regular price
Sale price
$219.99
Overview
Description
Description
Specifications
Specifications
.png)
ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
PCIe® 5.0 for Graphics Card
Supports next-gen graphics cards and is robust for handling data-heavy tasksLEARN MORE
Empowering Connectivity
Rear USB 20 Gbps Type-C® with DP alt mode & front USB 10 Gbps Type-C®LEARN MORE
Performance
- Intel® Core™ Ultra Processors (Series 2)
- Expansion Slots
- 1 x PCIe® 5.0 x16 SafeSlot
- 1 x PCIe® 4.0 x16 slot (supports x4 mode)
- 1 x PCIe® 4.0 x1 slot
- 12 (80A) + 1 (80A) + 2 (80A) + 1 (80A) Power Stages
- 4 x DIMM
- DDR5
- Dual Channel
- AEMP III
- 3 x M.2 Slots
- 1 x M.2 2280 PCIe® 5.0 x4
- 1 x M.2 2280/22110 PCIe® 4.0 x4
- 1 x M.2 2242/2260/2280 PCIe® 4.0 x4
Cooling
- VRM Heatsinks
- Two M.2 Heatsinks for
Three M.2 Slots
- CPU / CPU OPT Fan Headers & AIO Pump Header
- Chipset Heatsink
- 4 x Chassis Fan Headers
Gaming Immersion
- Realtek Audio Codec Exclusive DTS Audio Processing
- Audio Shielding
- Rear Optical S/PDIF Out Port
- Premium Audio Capacitors
- Dedicated Audio PCB Layers
- TUF Gaming Audio Cover
- Aura Edge Lighting
- 3 x Addressable Gen 2 RGB Headers

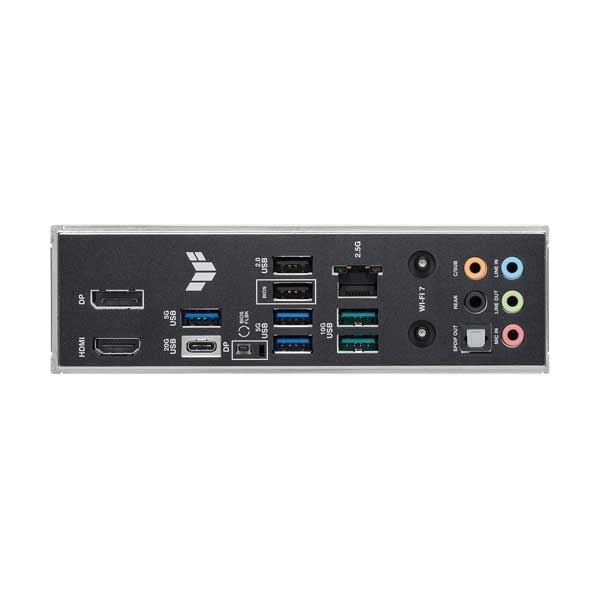

Connectivity
- DisplayPort HDMI™
- 1 x USB 5 Gbps
1 x USB 20 Gbps (with DP Alt mode) - BIOS FlashBack™ Button
- 2 x USB 2.0
2 x USB 5 Gbps - Realtek 2.5 Gb Ethernet
2 x USB 10 Gbps
- Wi-Fi 7
- 1 x Optical S/PDIF Out
5 x Audio Jacks - 1 x USB 10 Gbps Connector
- 1 x USB 5 Gbps Header
- 1 x 2.0 Header
Intelligent
Intelligent Control
.jpg)
0:18
AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.* Availability of ASUS AI Advisor may vary by region.
**AI Advisor functions may vary by platform.
.jpg)
UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.BIOS Q-Dashboard
.jpg)
0:05

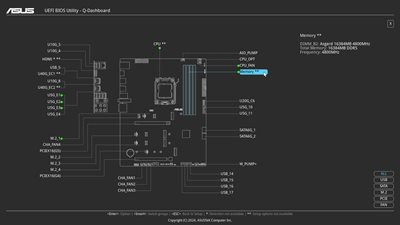

BIOS Q-Dashboard
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.* Video for reference only.
Advanced Mode
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want..gif)
ASUS MyHotkey
This feature provides a fast, convenient way to update the BIOS and boot your OS, enhancing PC upgrades with streamlined efficiency for DIY users.EZ Mode
.jpg)
Quick and Simple Setup
EZ Mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality and one-click application of important settings — all to help you get your rig up and running in no time.Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse..jpg)
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance..jpg)
0:12

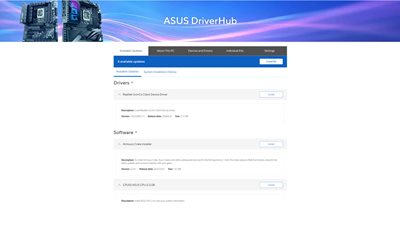

ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently..jpg)
ASUS GlideX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or Wi-Fi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It is compatible with Windows, macOS, Android, and iOS..jpg)
All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Windows..jpg)
Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Armoury Crate
Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that the ASUS community always has access to interesting updates.
.jpg)
.jpg)
.png)
.jpg)
.jpg)
Performance
Premium Power Design
Stable power is crucial for maximizing the performance of Intel® processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12 (80A) + 1 (80A) + 2 (80A) + 1 (80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability, and performance for both current and future Intel® processors.
12
VCCCORE Power
(80A, DrMOS)
VCCCORE Power
(80A, DrMOS)
1
VCCGT Power
(80A, DrMOS)
VCCGT Power
(80A, DrMOS)
2
VCCSA Power
(80A, DrMOS)
VCCSA Power
(80A, DrMOS)
1
VNNAON Power
(80A, DrMOS)
VNNAON Power
(80A, DrMOS)
Six Layered PCB design
Enhanced stability and overclocking.
This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
Enhanced stability and overclocking.
This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
ProCool Power Connectors
Proprietary 8+8 pin connectors improve PSU connection.
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
Proprietary 8+8 pin connectors improve PSU connection.
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
TUF Components
TUF chokes and capacitors offer rock-solid durability and stability.
TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
TUF chokes and capacitors offer rock-solid durability and stability.
TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
Digi+VRM Control
Real-time voltage control.
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Real-time voltage control.
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Memory & Storage
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
.jpg)
.gif)
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.** Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel® Core™ Ultra 9 285K processor and 2 x 16 GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability.Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
M.2 PCIe® 5.0 Support
This motherboard also features one PCIe® 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe™ RAID configurations to take advantage of the latest available speeds.
.png)

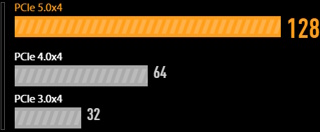

Bandwidth (Gbps)
* Actual transmission speed will be lower than theoretical maximum speed.
Cooling
Cooler by Design
.jpg)
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.* Image for reference only.
Connectivity
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe® 5.0, rear USB 20 Gbps Type-C® with DP Alt mode and front USB 10 Gbps Type-C®.jpg)
.jpg)
PCIe® 5.0 for Graphics Card
PCIe® 5.0 offers twice the data transfer speed of PCIe® 4.0, making it robust enough to handle new data-heavy tasks. PCIe® 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe® bus.Front USB 10 Gbps Type-C®
This motherboard features a USB Type-C® front panel connector for speedy data transfers of up to 10 Gbps..jpg)
Rear USB 20 Gbps Type-C® with DP Alt Mode
This motherboard features a rear USB 20 Gbps Type-C® with DP Alt mode for speedy data transfers of up to 20 Gbps.DIY
Easy PC DIY
.gif)
PCIe® Slot Q-Release
A physical lever unlocks the first PCIe® slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe® card from the motherboard when it’s time to upgrade to a new GPU or other compatible device..gif)
M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap..gif)
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance..jpg)
BIOS FlashBack™
BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button — no CPU or memory needed.Protection
.jpg)
SafeSlot & SafeDIMM
SafeSlot is a reinforced metal sheath integrated with a PCIe® slot to keep a card firmly installed and to ensure the highest possible data speeds. The SafeDIMM sheath is integrated to protect memory modules, empowering you to insert them with speed, accuracy, and confidence..jpg)
ESD Guards
ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.* ESD result is undertaken by individual LANGuard.
Stainless Steel Back I/O Panel
TUF Gaming motherboards feature a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.
3x
Longer Lifespan
Longer Lifespan
72 hr
Salt Fog Testing
Salt Fog Testing
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger..jpg)
Gaming
Ultrafast Networking
Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay..jpg)
Realtek 2.5 Gb Ethernet
On-board Realtek 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1 Gb connections..jpg)
Realtek 2.5 Gb Ethernet
On-board Realtek 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers..jpg)
Wi-Fi 7
Wi-Fi 7 ensures stable connections and low latency..jpg)
Wi-Fi 7
The next-gen Wi-Fi 7* supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.* Wi-Fi 7 features require an onboard Wi-Fi chipset, Wi-Fi AP, and Wi-Fi 7-supported operating systems to support the corresponding features. The 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Please visit the ASUS support website for more information.
AUDIO
.jpg)
7.1 Surround Sound
Realtek 7.1 Channel Audio
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B860 motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.Better Audio Effects
DTS® Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies, and music sound better. It also allows you to customize audio settings..jpg)
.jpg)
.jpg)
.jpg)
Lighting
Outshine The Competition
ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors, and peripherals..jpg)
Outshine The Competition
A well-tuned system deserves a matching aesthetic. The TUF GAMING motherboard features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware..png)
Addressable Gen 2 RGB Headers
Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear..jpg)
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.
