Intel Core Ultra 5 225H 4.3GHz 14-Core Processor
16GB DDR5 5600MHz RAM
500GB M.2 NVMe PCIe Solid State Drive
Integrated Intel Arc 130T Graphics | 2x HDMI 2.1
2x Thunderbolt 4
1x USB-A 3.2 Gen 2 | 1x USB 2.0
Intel 2.5GbE LAN | Wi-Fi 7 | Bluetooth 5.4
Microsoft Windows 11 Professional 64-Bit
2-Year Parts, 1-Year Labor Warranty
Features
AI-Optimized Architecture: Equipped with Series 2 Intel® Core™ Ultra processors featuring a dedicated NPU delivering up to 99 platform TOPS for local AI acceleration.
Quad 4K Display Output: Simultaneous multi-monitor productivity via dual HDMI® 2.1 ports and dual Thunderbolt™ 4 ports (supporting DisplayPort™ 2.1 and USB4).
Tool-Less Chassis Upgrades: Innovative hinged lever-action 2.0 chassis enables effortless, tool-free access to RAM and storage slots.
Next-Gen Wireless Connectivity: Built-in Intel® Wi-Fi 7 BE201 (up to 46 Gbps transfer rates) and Bluetooth® 5.4 with integrated Wi-Fi Proximity Sensing.
Enterprise-Grade Security: Supports Intel® vPro® and Intel® Platform Trust Technology (PTT) for hardware-level key management and secure remote administrative access.
Industrial Durability & Cooling: Rigorously torture-tested with MIL-STD-810H military certification and custom dual heat-pipe thermal engineering for 24/7 silent operation.
Versatile Workstation Functions: Features headless display emulation, virtual display capabilities, and ASUS Power Sync via HDMI® CEC for seamless system integration.
Specifications
Processor: Intel® Core™ Ultra 5 225H (Series 2), cTDP 40W
Graphics: Integrated Intel® Arc™ 130T Graphics (requires dual-channel SO-DIMM configuration)
Memory Support: Unpopulated barebone system; supports up to 96 GB dual-channel DDR5-5600 SO-DIMM (2x slots) or DDR5-6400 CSO-DIMM (2x slots)
Storage Slots:
- Primary Slot: 1x M.2 2280 NVMe™ PCIe® 5.0 x4 (128 GB to 8 TB support)
- Secondary Slot: 1x M.2 2242 NVMe™ PCIe® 4.0 x4 (128 GB to 2 TB support)
Wired Network: Intel® Ethernet Controller I226-V, 2.5 GbE LAN
Wireless Network: Intel® Wi-Fi 7 BE201 + Bluetooth® 5.4
Front I/O Ports:
- 1x USB 3.2 Gen 2x2 Type-C
- 2x USB 3.2 Gen 2 Type-A
- 1x Kensington Lock Slot (side)

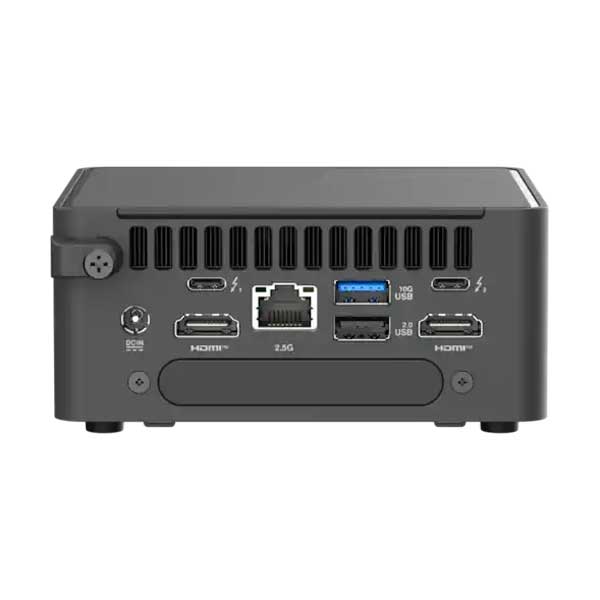

Rear I/O Ports:
- 2x HDMI® 2.1 (TMDS Compatible, 4K@60Hz)
- 2x Thunderbolt™ 4 (supports DisplayPort™ 2.1 and USB4)
- 1x USB 3.2 Gen 2 Type-A
- 1x USB 2.0 Type-A
- 1x RJ45 2.5G LAN
- 1x DC-in Power Connector
Power Supply: 19 V DC, 6.32 A, 120 W Power Adapter
Operating System Support: Windows 11, RedHat Enterprise Linux, Ubuntu 24.04 LTS (No pre-installed OS)
In-Box Accessories: 120W AC Adapter & Power Cord, VESA Mounting Bracket & Screws, Cable Clip, Warranty Card
Dimensions (L x W x H) (inches): 4.6" x 4.4" x 2.13"
Weight (lbs): 1.38 lbs
