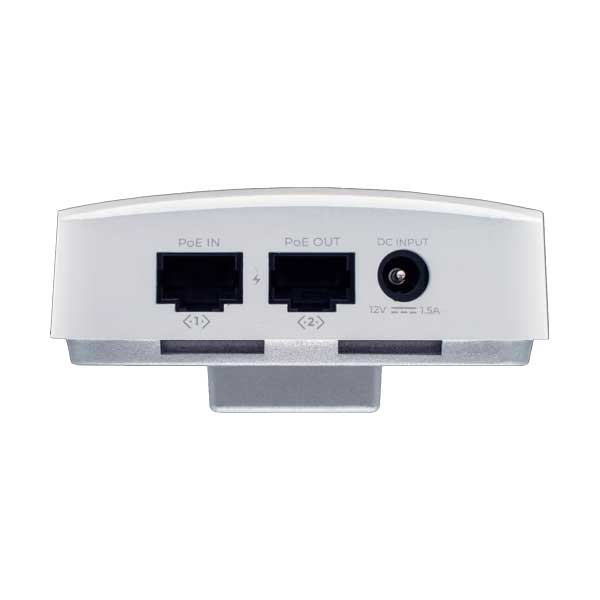

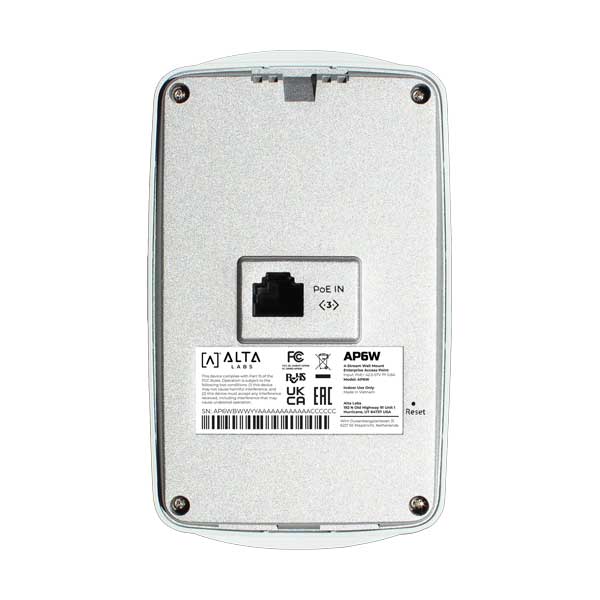

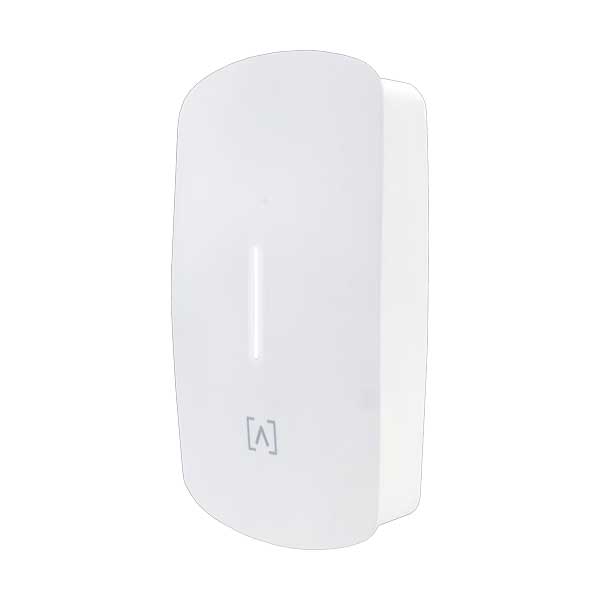

Alta Labs WiFi6 2x2 Wall Mount Enterprise Access Point (AP6W)

The Alta Labs WiFi6 2x2 Wall Mount Enterprise Access Point (AP6W) delivers advanced connectivity with multi-directional PoE passthrough and extended range for reliable performance. Designed for scalable cloud management, it incorporates AltaPass™ multi-password security, a mobile app DPI engine, and WiFi 6 hotspot capabilities. Its features include real-time adjustments, mesh networking, and flexible SSID broadcasting. Ideal for hospitality, MDUs, and commercial or residential environments, the AP6W combines a sleek, unobtrusive design with robust enterprise-grade functionality.

Supported Data Rates
802.11a/g: 6 Mbps to 54 Mbps
802.11b: 1 Mbps to 11 Mbps
802.11n: 6.5 Mbps to 300 Mbps (Up to MCS 15)
802.11ac: 6.5 Mbps to 867 Mbps (Up to MCS 9)
802.11ax: 2.4 GHz: Up to 574 Mbps, 5 GHz: 18 Mbps to 2.4 Gbps (Up to MCS 11)

Network Interface
Ethernet, WiFi, Bluetooth
Management Interface
(3) GbE RJ45 Ports
Button(s)
Reset/Factory Reset
LED
Blue, White
PoE
802.3af/at
Power Supply
PoE+ Enabled Network Switch, 48V, 0.5A PoE Adapter, or a 12VDC
1.5A Power Supply (Optional - Not Included)
PoE Pass Through
Yes
Multi Direction PoE Input
(Back and Bottom)
Yes
Supported Voltage Range
42.5-57V DC
Max. Power Consumption
14.2W
Max. Transmit Power
2.4 GHz: 20 dBm @2NSS, 5 GHz: 20 dBm @2NSS
SU-MIMO
(2) Spatial Stream Single User (SU) MIMO for up to 574 Mbps
Wireless data Rate with HE40 Bandwidth to a 2x2 Wireless Client
Device under the 2.4 GHz Radio

(2) Spatial Stream Single User (SU) MIMO for up to 1,200 Mbps
Wireless Data Rate with VHT80 to a 2x2 Wireless Device under the
5 GHz Radio
MU-MIMO
(2) Spatial Streams Multiple (MU)-MIMO up to 1,200 Mbps Wireless
Data Rate for Transmitting to (2) streams MU-MIMO 11ax Capable
Wireless Client devices under 5 GHz Simultaneously

(2) Spatial Streams Multiple (MU)-MIMO up to 574 Mbps Wireless
Data Rate for Transmitting to (2) Streams MU-MIMO 11ax Capable
Wireless Client Devices under 2.4 GHz Simultaneously
Throughput Rate
2.4 GHz: Up to 574 Mbps, 5 GHz: Up to 2.4 Gbps
Antenna Gain
2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi
Mounting
Wall
Operating Temperature
0 to 40° C (32 to 104° F)
Operating Humidity
5 to 90% Noncondensing
Certifications
CE, FCC, IC (Visit Alta.inc for a full list of certifications)
Dimensions
156.1 x 90 x 43.9 mm (6.15 x 3.54 x 1.73")
Weight
0.312 kg (0.68 lbs)
Mount Material
Top Cover: Polycarbonate, Bottom Cover: Aluminum
Mount Material
Polycarbonate
Weight: 0.68 lbs
UPC: 845882005466

Features:
Multi-Direction Input
PoE Passthrough
Superior Range and Performance
Scalable Cloud-Based Management
AltaPass™ Multi-Password Technology
Mobile App
DPI Engine
High Performance WiFi 6
Hotspot Functionality
On-The-Fly Changes and Scanning
Mesh Connectivity
SSID Broadcasting Flexibility
