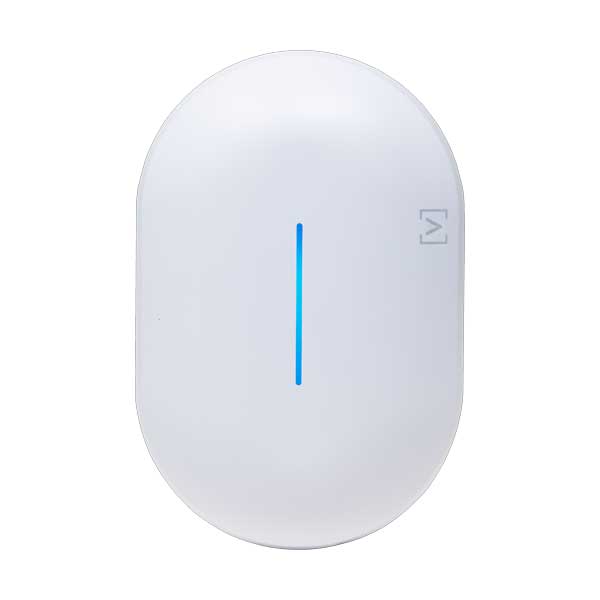

ALTA LABS AP6 Professional WiFi 6 Access Point - 4x4 MU-MIMO - PoE+ (AP6-PRO)

The ALTA LABS AP6 Professional WiFi 6 Access Point (AP6-PRO) offers superior performance with a high capacity 6.3Gbps wireless connection and 4x4 MU-MIMO antennas for extended range. Incorporating features found in WiFi 7, such as 4096 QAM, it boasts a combined WiFi capacity of 6.3 Gbps. With four 5 GHz antennas and seamless roaming capabilities, this IP54 rated Access Point provides superior range and performance. The cloud-based management interface and Deep Packet Inspection engine make it easy to monitor and configure the network. Its compact and sleek design, along with versatile mounting options, allow for seamless integration in various environments. The AP6-PRO also offers advanced features such as multi-password technology, on-the-fly changes and scanning, and wireless network color coding. With per-client settings and the ability to create customizable hotspots, this Access Point is perfect for corporate, commercial, and residential use.

Features
• High Performance 6.3Gbps Wireless Access Point
• Seamless Roaming, PoE+, 4096 QAM
• IP54 Rated WiFi Access Point
• 4x4 MU-MIMO Antennas for Extended Range
• WiFi 6 with WiFi 7 Benefits: Incorporates 4096 QAM, a feature typically found in WiFi 7, contributing to a combined WiFi capacity of 6.3 Gbps.
• Superior Range and Performance: Features four 5 GHz antennas and 4x4 MU-MIMO for enhanced throughput and extended range compared to 2x2 APs. Supports seamless roaming with 802.11k, v, and r standards.
• Scalable Cloud-Based Management: Offers an intuitive and easy-to-use cloud-based management interface and mobile app for monitoring and configuration from anywhere.
• Advanced Filtering (DPI Engine): Built-in Deep Packet Inspection engine allows restricting access to websites, applications, or application types without additional hardware.
• AltaPass Multi-Password Technology: Enables the use of different WiFi passwords to separate network traffic and manage connectivity.
• On-The-Fly Changes and Scanning: Allows configuration changes and environment scanning without requiring a network reboot.
• SSID Broadcasting Flexibility: Provides options for hiding SSIDs and continuing broadcasting during scheduled off events for administrative flexibility.
• IP54 Rated: Offers protection against dust and water spray, making it suitable for indoor and outdoor installations under eaves or overhangs.

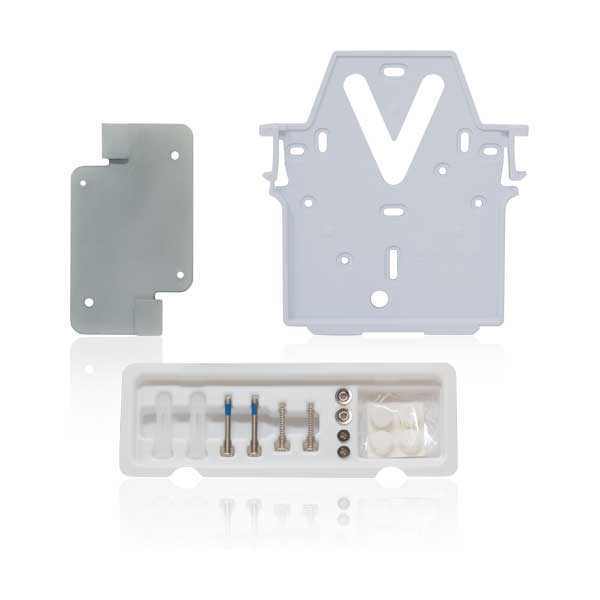

• Elevated Design & Experience: Features a compact and sleek aesthetic design with versatile mounting hardware, including proprietary QuickMount™ technology.
• Painless Hotspot Setup: Built-in functionality to create customizable local hotspots.
• Wireless Network Color Coding: Patent pending functionality for assigning groups to SSIDs and APs.
• Seamless Per-Client Settings: Allows applying specific settings like VLAN, device type, rate limit, and hotspot/schedule exceptions per client.

Specifications
• Dimensions: 190mm (7.5”) x 125mm (4.9”) x 32mm (1.25”)
• Weight: 0.4 kg (0.9 lbs)
• Weatherproofing: IP54
• Network Interface: Ethernet, WiFi, Bluetooth
• Management Interface: (1) GbE RJ45 Port
• Power Method: PoE+ (PoE+ enabled network switch 48V, 0.5A or optional PoE adapter)
• Supported Voltage Range: 42.5 - 57V DC
• Maximum Power Consumption: 25W
• Maximum Transmit Power: 2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS
• MIMO: 2.4 GHz: 2 x 2, 5 GHz: 4 x 4
• Throughput Rate: 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13)
• Antenna Gain: 2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.8 dBi
• Mounting: Wall, ceiling, drop-ceiling, table top
• Operating Temperature: -30 to 60° C (-22 to 140° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
• WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6)
• Roaming: 802.11r/k/v
• Wireless Security: WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3)
• Multi-BSSID: Supported
• VLAN: 802.1Q
• Advanced QoS: 802.11e
• Guest Traffic Isolation: Supported
• Concurrent Clients: 300+
• Zero Wait DFS: Yes
• Intelligent WiFi Scheduling: Yes
• Supported Data Rates:
• 802.11a/g: 6 Mbps to 54 Mbps
• 802.11b: 1 Mbps to 11 Mbps
• 802.11n: 6.5 Mbps to 600 Mbps (Up to MCS 31)
• 802.11ac: 6.5 Mbps to 3.4 Gbps (Up to MCS 9)
• 802.11ax: 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13)
