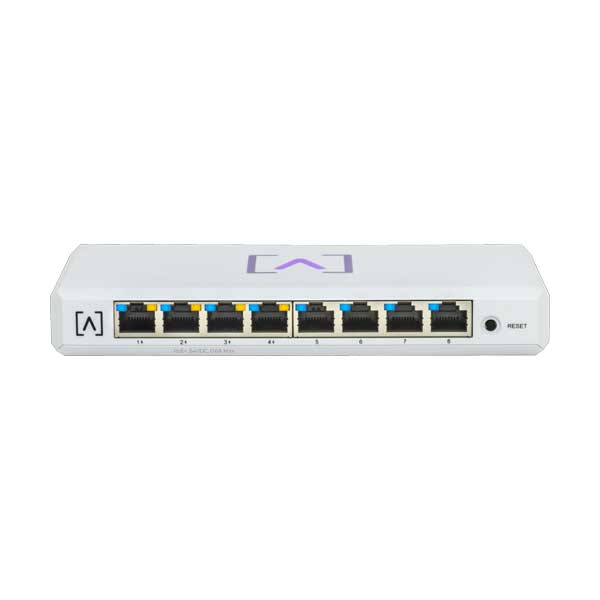

ALTA LABS 8-Port 60W PoE+ Multi-Gigabit Managed Switch (S8-POE)

The ALTA LABS 8-Port 60W PoE+ Multi-Gigabit Managed Switch (S8-POE) boasts a total of eight ports offering speeds of 10/100/1000 Mbps. Four of these ports support 802.3at PoE+, allowing for a maximum PoE budget of 60 Watts (with up to 30 watts per port). These ports are also compatible with 802.3af PoE. Additionally, the switch features four non-PoE ports, as well as Bluetooth functionality for effortless setup through the Alta Labs mobile app. Cloud-based management can be accessed through the app or web browser, and the switch offers support for egress and ingress rate limiting, IGMP Snooping, 802.1X authentication, and network loop detection. With its compact design, the S8‑PoE can be conveniently placed on a desktop or mounted on a wall, making it a versatile choice for any network setup.

Features:
• Eight 10/100/1000 Mbps ports.
• Four ports support 802.3at PoE+ with a total PoE budget of 60 Watts (up to 30 Watts per port), and are backwards compatible with 802.3af PoE.
• Four non-PoE ports.
• Bluetooth functionality for seamless setup using the Alta Labs mobile app.
• Cloud-based management interface accessible via mobile app or web browser.
• Support for egress and ingress rate limiting.
• IGMP Snooping for optimizing network performance.
• 802.1X authentication support.
• Network loop detection.

Specifications
• Dimensions: 25.7 x 91 x 180 mm (1 x 3.6 x 7.1")
• Weight: 0.38 kg (0.83 lbs)
• Material: Injection Molded Plastic with a Matte finish
• Color: White
• Switching Capacity: 16 Gbps
• Nonblocking Throughput: 8 Gbps
• Forwarding Rate: 11.9 Gbps
• PoE Budget/Max: 60 Watts
• PoE Supply: 30 Watts per port
• LEDS: PoE (Orange), Network (Orange: 10/100 Mbps, Blue: 1000 Mbps)
• Packet Buffer: 4.1 Mbit
• Mac Table Size: 8 K
• Energy Efficient Ethernet: Yes
• Management: Factory Reset Button, Bluetooth (2.4 GHz, BLE)
• Power: Idle Consumption: 3.4 Watts, Max (w/o PoE): 8 Watts, Max (Full PoE): 68 Watts
• Output: PoE+, 54VDC, 0.6A Max
• Power Supply: Universal AC, 100 - 240VAC 50-60Hz External
• RJ45 Port Surge Protection: 12kV for ESD - Contact, 25kV for ESD - Air
• Mounting: Locking Wallmount
• Operating Temperature: -5 to 50° C (23 to 122° F)
• Operating Humidity: 10 to 90% Noncondensing
• IP Rating: None
• EMI Rating: EMI Class-B with 3dB margin
• Cooling Fan: No (Fanless Cooling)
• Certifications: CE, FCC, IC
