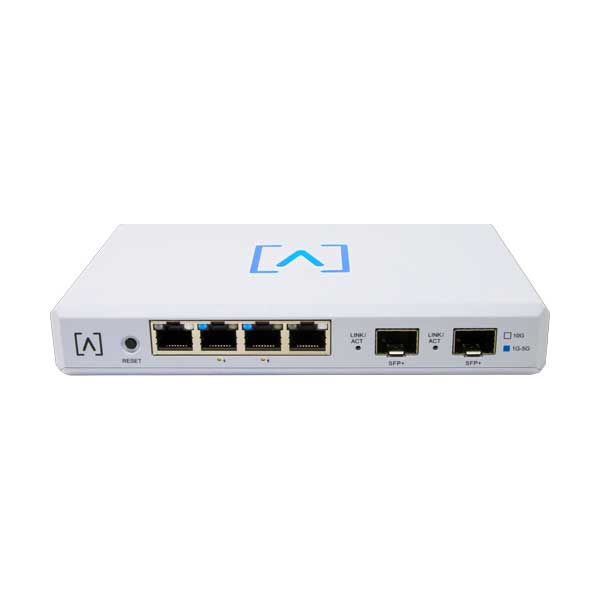

ALTA LABS 4-Port High Performance 10Gbps PoE+ Router with SFP+ Ports (ROUTE10)

The ALTA LABS 4-Port ROUTE10 features advanced connectivity options and high performance capabilities, making it ideal for demanding network environments. With a Quad-Core Qualcomm Network Accelerator and two 10 Gbps SFP+ ports, this router can handle high data rates of up to 37.5 Million Packets per second and an actual total throughput of 25 Gbps combined upload/download. Its four 2.5 Gbps RJ45 Ethernet ports, two of which support Power over Ethernet (PoE+) for powering compatible devices, and compact design make it versatile for home, SMB, and large-scale use. The Route10 also offers flexible management options, including cloud-based management, a local hardware controller, or downloadable software. It can be easily set up through Bluetooth using the Alta Networks mobile app and supports various WAN configurations and advanced networking features such as VLAN, QoS tagging, NAT configuration, and UPnP. For enhanced security, the Route10 has a powerful Deep Packet Inspection.

Features:
• Four 2.5 Gbps RJ45 Ports (2 with PoE+)
• Two Hardware-Accelerated 10 Gbps SFP+ Ports
• Quad-Core Qualcomm Network Accelerator (2.2 GHz)
• Power over Ethernet (PoE+) on ports 2 & 3 (802.3at and 802.3af compatible) with a 40W PoE budget.
• Bluetooth Setup via Alta Networks mobile app
• Static IP, DHCP, and PPPoE WAN Support
• Multiple VLAN and Subnet Support (802.1Q)
• Hardware-Accelerated VPN Server (IPsec Site to Site, L2TP+IPSec, WireGuard, OpenVPN, IKEv2 Remote Access)
• Deep Packet Inspection (DPI) Engine for content filtering
• Intrusion Detection and Prevention Systems (IDS/IPS) at 10 Gbps
• WAN Failover and Load-Balancing
• Real-time Statistics Reporting
• Compact and Sleek Form Factor
• Optional Rack Mount Accessory available

Specifications:
• Dimensions: 180 x 110 x 29.8 mm (7.09 x 4.33 x 1.17")
• Weight: 0.46 kg (1.01 lbs)
• Enclosure Material: Top cover: polycarbonate, Bottom cover: milled aluminum
• Material Finish: Matte
• Color: White
• Mount Material: Injection Molded Plastic (Locking Wallmount, Desktop)
• Network Interface: Ethernet, Bluetooth
• Management Interface: (4) Autosensing 2500/1000/100/10 Mbps RJ45 Ports, (2) 10 Gbps/1.25 Gbps SFP+ Ports
• Processor: Quad-core Qualcomm 2.2 GHz Network Accelerator
• Button: Reset/Factory Reset
• Power Supply: Universal AC, 100 - 240VAC 50-60Hz External
• Maximum Input Power Consumption: 70W
• Idle Power Consumption: 5W (no connections), 9W (all ports connected)
• PoE Budget: 40W
• Per-Port PoE: (2) 802.3at POE+ (54VDC, 0.6A Max)
• PoE Ports: 2
• Bluetooth Version: BLE
• Total Bluetooth Power: 5 dBm EIRP
• Bluetooth Gain: 3 dBi
• MAC Table Size: 4k
• Operating Temperature: -5 to 50° C (23 to 122° F) (with SFP+ modules: 45°C with one 2W SFP+, 40°C with two 2W SFP+)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
• RJ45 Port Surge Protection: 12kV for ESD - Contact, 25kV for ESD - Air
• Software Features: VLAN (802.1Q), Seamless Per-Client Settings, Multiple Hardware-Accelerated VPN Servers, Actual Total Throughput (25 Gbps Combined), RADIUS Authentication, Deep-Packet Inspection, Intrusion Detection and Prevention Systems (at 10 Gbps), WAN Failover and Load-Balancing.
