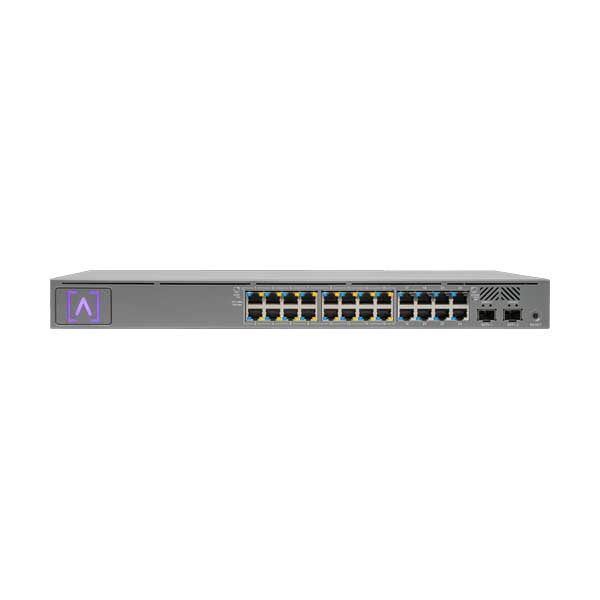

ALTA LABS 24-Port Managed Gigabit 240W PoE+ Ethernet Switch (S24-POE)

The ALTA LABS 24-Port Managed Gigabit 240W PoE+ Ethernet Switch (S24-POE) offers various features for efficient network management. These features include Power Over Ethernet (PoE+), SFP/SFP+ high performance connectivity, and Bluetooth setup through the Alta Labs mobile app. The switch also supports advanced features like VLAN stacking (Q-in-Q) and egress/ingress rate limiting. With its sturdy SGCC metallic gray enclosure and cooling fan, the switch is designed for rack or wall mounting. The cloud-based management platform allows for centralized control and monitoring, and includes features such as a customizable dashboard and real-time status updates. Installation is made easy with automatic firmware updates and a mobile app for setup. Overall, this switch is perfect for a variety of environments, from small offices to enterprise networks, providing robust Gigabit connectivity and PoE+ capabilities for compatible devices.

Features:
• Power Over Ethernet (PoE+)
• SFP/SFP+ High Performance Connectivity
• Bluetooth Setup
• Mobile App Management
• Scalable Cloud-Based Management
• VLAN Stacking (Q-in-Q)
• Egress and Ingress Rate Limiting
• IGMP Snooping
• 802.1X Authentication
• Network Loop Detection
• Customizable Dashboard
• Status Snapshots
• Device Cards
• Site Manager
• Mounting Flexibility (Rackmount, Wallmount)
• Automatic Firmware Updates

Specifications:
• Dimensions: 44 x 254 x 441.5 mm (1.7 x 10 x 17.4")
• Weight: 3.6 kg (7.9 lbs)
• Material Type: SGCC
• Material Finish: Powder coat - Matte
• Color: Metallic gray
• Interface Ports: (24) 10/100/1000 Mbps RJ45
• SFP/SFP+: (2) SFP+
• Switching Capacity: 88 Gbps
• Non-blocking Throughput: 44 Gbps
• Forwarding Rate: 65.5 Gbps
• PoE Budget/Max: 240 Watts
• PoE Supply: 30 Watts per port
• Per Port PoE: (16) 802.3at PoE+
• Non-PoE Ports: (8) RJ45 (Ports 17-24 are listed as Non-PoE in some documentation, while ports 1-16 are PoE+. The specification "Non-PoE Ports: (10)" appears in the datasheet but contradicts the port count and PoE capabilities, the 8 non-PoE ports seems more accurate based on the description of 24 ports total with 16 PoE+.)
• PoE LED: Orange
• Network LED: Orange: 10/100 Mbps, Blue: 1000 Mbps
• SFP/SFP+ LED: Blue: Link/Activity (1, 2.5, or 5 Gbps), White: Link/Activity (10 Gbps)
• Packet Buffer: 12 Mbit
• Mac Table Size: 16 K
• Energy Efficient Ethernet: Yes
• Management: Factory reset button, Cloud-managed
• Bluetooth: Yes (2.4 GHz, BLE)
• Total Power (Bluetooth): 7 dBm EIRP
• Gain (Bluetooth): 2 dBi
• Idle Power Consumption: 15 Watts
• Max Power Consumption w/o PoE: 53 Watts
• Max Power Consumption Full PoE: 295 Watts
• Output: PoE+, 54VDC, 0.6A Max.
• Power Supply: Universal AC, 100 - 240VAC 50-60Hz Internal
• RJ45 Port Surge Protection: 12kV for ESD - contact, 25kV for ESD - Air
• Mounting: Rackmount, Wallmount
• Operating Temperature: -5 to 50° C (23 to 122° F)
• Operating Humidity: 10 to 90% Noncondensing
• IP Rating: None
• EMI Rating: EMI Class-A with 3dB margin
• Cooling Fan: Yes
• Certifications: CE, FCC, IC
