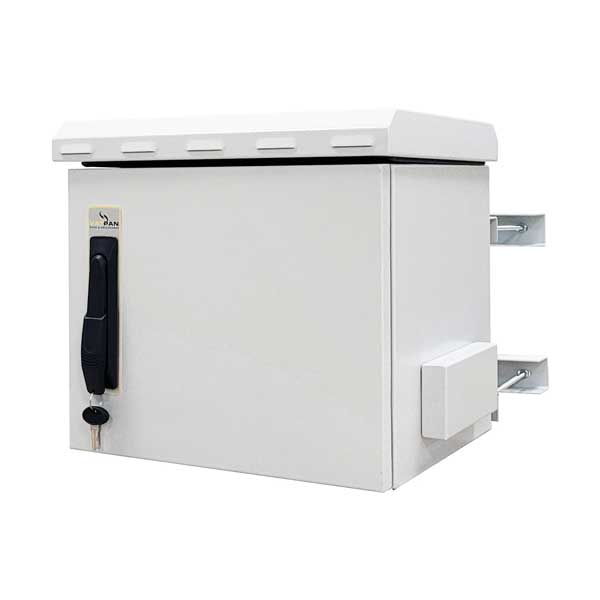

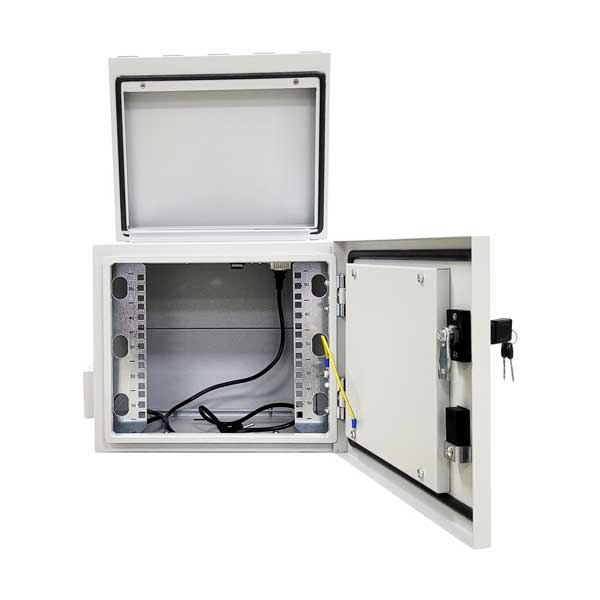

5U 10-inch Outdoor Double Walled Mini Pole Rack Cabinet (STV-HC-5U325-ip66)

The 10" 5U Outdoor Mini Pole Rack Cabinet (STV-HC-5U325-ip66) is designed to safeguard important network equipment from the harsh elements found in outdoor settings. It is a compact solution for storing routers, switches, DVRs, UPS power supplies and more in small scale outdoor installations or remote sites. With a 1.2mm sheet thickness and 1.5mm thick galvanized steel frame, this cabinet offers double wall construction for enhanced protection and insulation. It features a RAL 7035 epoxy polyester powder paint finish and a watertight polyurethane gasket, ensuring an IP66 rating for dust and water resistance. Additionally, it can be mounted on poles or walls and offers optional installation of 1 or 2 fans for added cooling. Expertly designed and durable, this mini rack cabinet is perfect for limited spaces without compromising on quality.

Features:
• Sheet Thickness: 1.2mm
• Construction: 1.5mm thick galvanized steel frame
• Design: Double walled for added protection and insulation
• Material Finish: RAL 7035 epoxy polyester powder paint
• Protection Rating: IP66 for dust and water resistance
• Mounting: Suitable for pole or wall mounting
• Optional Features: Installation of 1 or 2 fans available
• Sealing: Watertight seal with a polyurethane cast gasket

Specifications:
• Width: 371mm (14.61"), Depth: 325mm (12.8"), Height: 358mm (14.09")
• Inner Dimensions: Inner Height: 310mm (12"), Outer Height: 358mm (14.09")
• Unassembled Dimensions: Width: 300mm (12"), Height: 350mm (13.78"), Depth: 371mm (14.61")
• Weight: 18kg (approx. 40 lbs)
• Color: RAL 7035 Light Gray
