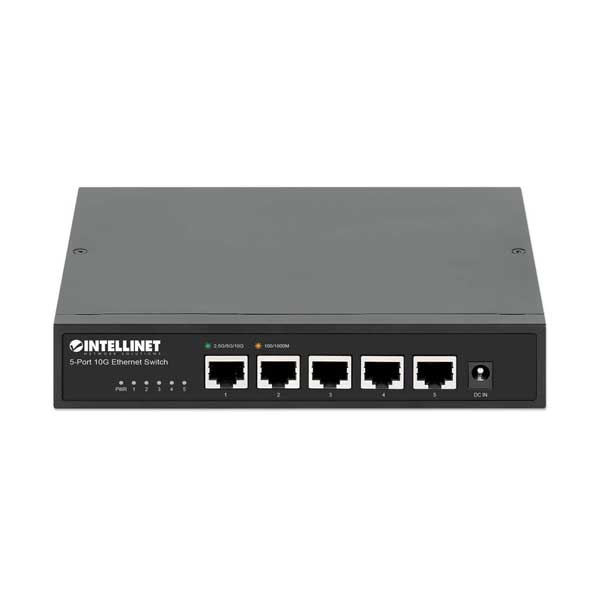

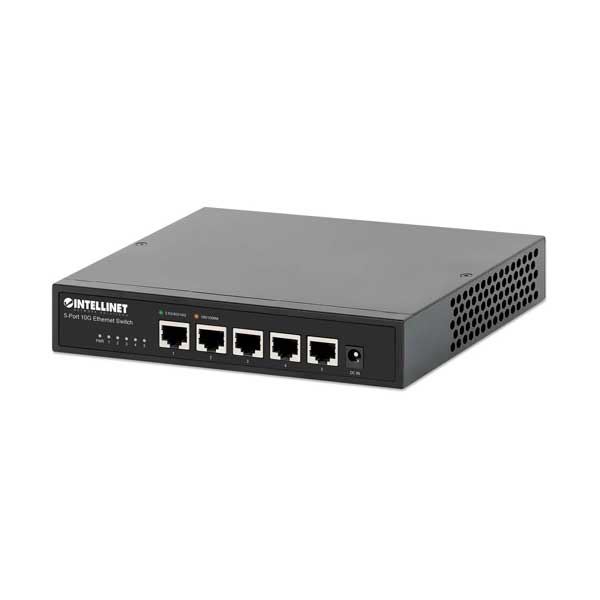

Intellinet 5-Port 10G Ethernet Switch (562201)

The Intellinet 5-Port 10G Ethernet Switch (562201) is a high-performance unmanaged switch tailored for professionals and enterprises needing ultra-fast, dependable network connections. It offers five 10GBASE-T RJ45 ports with auto-sensing speeds ranging from 100 Mbps to 10 Gbps, ensuring compatibility with both legacy and modern devices like 10G servers, NAS units, and Wi-Fi 6/7 access points. Featuring a 100 Gbps switching capacity and store-and-forward architecture, it delivers efficient data handling for demanding tasks such as 8K streaming, cloud services, IoT, VR, and large data transfers. Its compact, durable metal chassis and fanless design support quiet operation and flexible desktop or wall mounting.

Specifications:
Standards:
IEEE 802.3an (10GBASE-T Ethernet)
IEEE 802.3bz (2.5/5GBASE-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (Flow control for full-duplex mode)
Media Support:
100Base-TX: Cat5/5e/6/6a UTP/STP RJ45
1000Base-T: Cat5e/6/6a UTP/STP RJ45
2.5G/5GBase-T: Cat5e/Cat6/6a UTP/STP RJ45
10GBase-T: Cat6a UTP/STP RJ45
MAC Address Table: 16k entries
Buffer Memory: 12 Mbits
Forwarding Rate: 14.88 Mpps
Backplane Speed / Switch Fabric: 100 Gbps
Switch Architecture: Store and Forward
Certifications: FCC, CE, RoHS, REACH, UKCA, NDAA, TAA
MTBF (Mean Time Between Failures): 521,600 hours at 25°C (77°F)
LEDs: Power, Link/Act
Power Adapter:
Input: 90.0 - 264.0 VAC, 47 - 63 Hz
Output: DC, 12.0 V, 3.0 A
Physical Specifications:
Dimensions (L x W x H): 145 x 180 x 34 mm (5.71 x 7.09 x 1.34 in.)
Operating Temperature: 0 - 40°C (32 - 104°F)
Storage Temperature: -40 - 70°C (-4 - 194°F)
Operating Humidity: 10 - 90% RH, non-condensing
Storage Humidity: 5 - 90% RH, non-condensing
Package Contents:
5-Port 10 GbE Ethernet Switch
Power adapter
Four rubber feet
Instructions
Item Weight:
Net weight: 966 g (2.13 lbs.)
Gross weight: 1.31 kg (2.89 lbs.)
