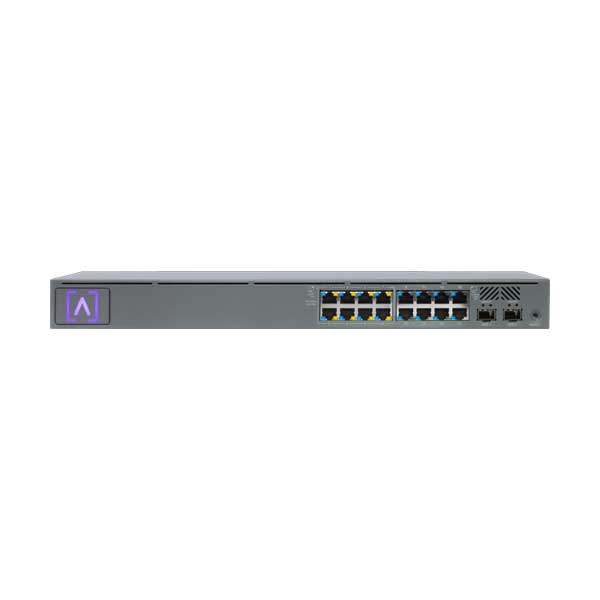

ALTA LABS 16-Port Managed Gigabit 120W PoE+ Ethernet Switch (S16-POE)

Introducing the ALTA LABS S16-POE, a state-of-the-art managed Gigabit Ethernet switch that boasts 16 powerful ports, including 8 supporting 802.3at PoE+ with an impressive 120W budget (30W per port). With two SFP ports for high-speed connectivity of up to 1 Gbps, this switch also offers convenient Bluetooth setup and management through a mobile app or cloud-based interface. Easily customizable and energy-efficient, this rack mountable switch is ideal for managing a variety of network tasks, including VLAN stacking, rate limiting, IGMP snooping, and 802.1X authentication. Don't miss out on the Alta Labs S16-POE and its cutting-edge features.

Features:
• Power Over Ethernet (8 ports support 802.3at PoE+ with 120W total budget)
• SFP High Performance Connectivity (2 SFP ports for 1 Gbps)
• Bluetooth Setup
• Mobile App
• Egress and Ingress Rate Limiting
• IGMP Snooping
• 802.1X Authentication
• Network Loop Detection
• Site Manager
• Scalable Cloud-Based Management
• VLAN Stacking
• Customizable Dashboard
• Status Snapshots
• Device Cards
• Mounting Options (Rackmount, Wallmount - rack ears and Rackstud DUO studs/nuts included)
• Energy Efficient Ethernet
• Factory Reset Button
• Supports 2.4 GHz Band for Bluetooth Setup (BLE)
• Internal Universal AC Power Supply

Specifications:
• Dimensions: 44 x 254 x 441.5 mm (1.7 x 10 x 17.4")
• Weight: 3.6 kg (7.9 lbs)
• Material Type: SGCC
• Material Finish: Powder Coat - Matte
• Color: Metallic Gray
• Interface Ports: (16) 10/100/1000 Mbps
• SFP/SFP+: (2) SFP
• Switching Capacity: 36 Gbps
• Non‑blocking Throughput: 18 Gbps
• Forwarding Rate: 26.8 Gbps
• PoE Budget/Max: 120 Watts
• PoE Supply: 30 Watts per Port
• Per Port PoE: (8) 802.3at PoE+
• Non‑PoE Ports: (10)
• LEDS: PoE (Orange), Network (Orange: 10/100 Mbps, Blue: 1000 Mbps), SFP/SFP+ (Blue: Link/Activity - 1000 Mbps)
• Packet Buffer: 4.1 Mbit
• MAC Table Size: 8 K
• Management: Factory Reset Button, Bluetooth Setup
• Bluetooth: Version BLE, Total Power 7 dBm EIRP, Gain 2 dBi
• Idle Power Consumption: 6.5 Watts
• Max Power Consumption w/o PoE: 23 Watts
• Max Power Consumption Full PoE: 143 Watts
• Output: PoE+, 54VDC, 0.6A Max
• Power Supply: Universal AC, 100 - 240VAC 50-60Hz Internal
• RJ45 Port Surge Protection: 12kV for ESD - Contact, 25kV for ESD - Air
• Operating Temperature: -5 to 50° C (23 to 122° F)
• Operating Humidity: 10 to 90% Noncondensing
• IP Rating: None
• EMI Rating: EMI Class-A with 3dB Margin
• Cooling: No (Fanless Cooling)
• Certifications: CE, FCC, IC
