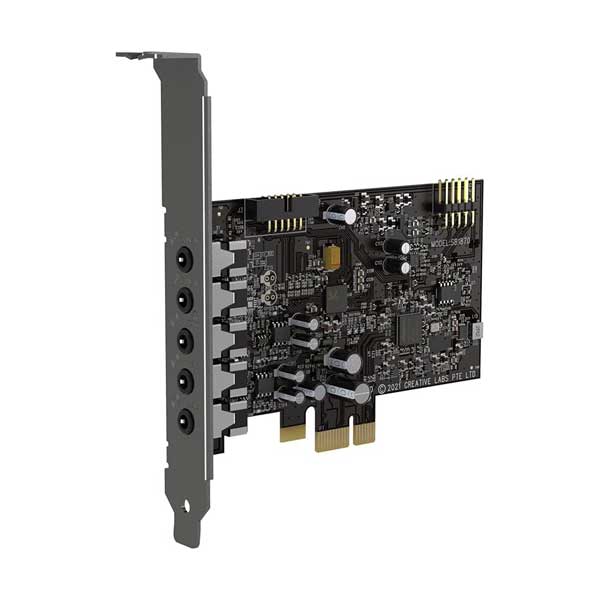

Creative Labs Sound Blaster Audigy Fx V2 Sound Card (70SB187000000)

The Creative Sound Blaster Audigy Fx V2 (model 70SB187000000) is a PCIe internal sound card that significantly enhances audio quality beyond typical motherboard sound. It delivers detailed 24-bit/192kHz playback with a 120 dB signal-to-noise ratio, supporting immersive 5.1 surround sound ideal for movies and gaming. Its built-in headphone amplifier drives high-impedance headphones up to 600Ω with no loss in fidelity. The included SmartComms Kit improves communication by automatically muting the microphone and reducing background noise. Additional features include Scout Mode for clearer in-game audio cues and optional upgradeability to 7.1 surround sound and DSD256 playback. Compact and versatile, it fits various PC builds and offers customizable audio profiles via the Creative app.

Features
High-Resolution Audio: Supports 24-bit/192kHz audio playback with a 120 dB SNR for pristine sound quality.
Cinematic Surround Sound: Delivers immersive 5.1 channel surround sound for both speakers and virtual surround sound for headphones.
SmartComms Kit: Includes a suite of intelligent communication features such as VoiceDetect (auto-mute) and NoiseClean (two-way noise cancellation).
Built-in Headphone Amplifier: Drives studio-grade headphones with up to 600Ω impedance without quality loss.
Scout Mode: A gaming feature that enhances in-game audio cues like footsteps and weapon switches to give a competitive edge.
Upgradeability: Can be upgraded with an optional daughterboard (Sound Blaster Audigy Fx V2 DBPro) to add DSD256 playback and 7.1 discrete surround sound.
Customizable Audio: The Creative app provides access to the Sound Blaster Acoustic Engine, which allows for custom EQ profiles and audio enhancements.
Compact Form Factor: Designed in a half-height/half-length form factor for compatibility with various PC configurations and includes interchangeable mounting brackets.

Specifications
Interface: PCI Express x1
Audio Channels: 5.1 Channel Surround (upgradable to 7.1 with optional daughterboard)
Playback Resolution: Up to 24-bit/192kHz
Signal-to-Noise Ratio (SNR): 120 dB
Headphone Impedance Support: 32–600Ω
Connectivity:
1x 1/8" (3.5 mm) Microphone Input
1x 1/8" (3.5 mm) Line Input
1x 1/8" (3.5 mm) Headphone Output / Front L/R
1x 1/8" (3.5 mm) Rear Output
1x 1/8" (3.5 mm) Center/Subwoofer Output
Form Factor: Half Height/Half Length Plug-in Card
Operating System: Windows 10 or later
Weight: 0.46 lbs
