Features
Hybrid Coax & IP Flexibility: Connect up to 8 analog cameras via BNC inputs and 4 IP cameras simultaneously, with the option to convert all analog channels to support up to 12 IP cameras total.
Universal Adaptive Signal Access: Interface seamlessly with TVI, AHD, CVI, and traditional CVBS analog camera formats without requiring manual signal configuration.
Smart Onboard AI Analytics: Minimize false alarms using recorder-side Ultra Motion Detection (8 channels), Smart Intrusion Prevention (4 channels), and Face Detection (1 channel) focused on human and vehicle targets.
Ultra-HD 4K HDMI Output: Display live feeds and recorded footage with clarity on local monitors using simultaneous 4K HDMI and 1080p VGA outputs.
High-Capacity Storage Architecture: Install up to a 16TB surveillance-grade SATA hard drive to maintain extended retention schedules for continuous and event-based video recording.
Audio Over Coaxial Cable: Streamline audio integration with 8-channel one-way audio transmission over existing coaxial cabling when paired with compatible UNV TVI and CVI cameras.
Two-Way Intercom Support: Enable real-time audio interaction through 1-channel two-way audio support when deployed with compatible IP or specialized analog front-end cameras.
Efficient Video Compression: Maximize bandwidth throughput and drive storage efficiency using H.265 and H.264 video compression formats.
NDAA Compliance: Meet government and enterprise procurement standards with full National Defense Authorization Act compliance.
Specifications

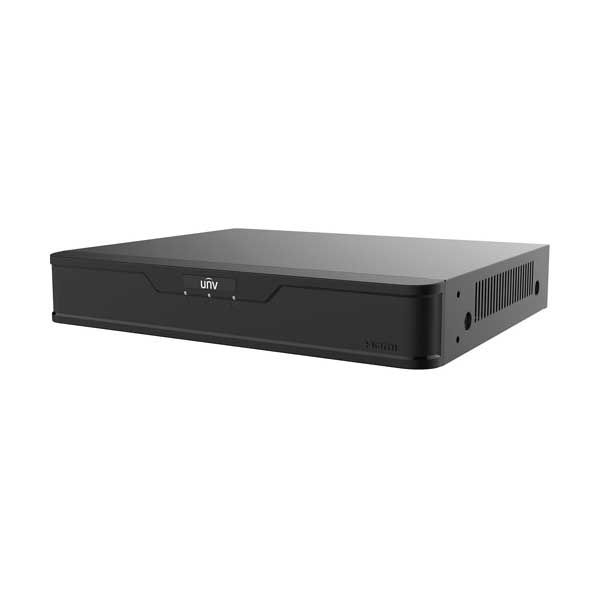

Form Factor: 1U Chassis
Analog Video Inputs: 8 x BNC interfaces
Adaptive Analog Formats:
TVI: 8MP@15/12fps, 3K@20fps, 5MP@20/12fps, 4MP@30/25/15fps, 1080p@30/25fps, 720p@30/25fps
AHD: 8MP@15fps, 5MP@20/12fps, 4MP@30/25/15fps, 1080p@30/25fps, 720p@30/25fps
CVI: 8MP@15/12fps, 5MP@25/20fps, 4MP@30/25fps, 1080p@30/25fps, 720p@30/25fps
CVBS: Supported
IP Video Inputs: 4 channels by default (up to 12 channels total via analog-to-IP conversion)
Built-in PoE: None (IP cameras require external network switch/power)
Video Compression Formats: H.265, H.264
Recording Resolutions & Frame Rates: 8MP Lite@8fps, 3K Lite@12fps, 5MP@6fps, 5MP Lite@12fps, 4MP@15fps, 1080p@15fps, 720p@30fps
Analog Decoding Capability: 8 x 8MP Lite@8fps, 8 x 3K Lite@12fps, 8 x 5MP@6fps, 8 x 5MP Lite@12fps, 8 x 4MP@15fps, 8 x 1080p@15fps, 8 x 720p@30fps
IP Decoding Capability: 1 x 8MP@30fps, 1 x 6MP@30fps, 1 x 5MP@30fps, 2 x 4MP@30fps, 2 x 3MP@30fps, 4 x 1080p@30fps, 8 x 720p@30fps
Local Simultaneous Playback: 8 channels
Video Outputs:
1 x HDMI (up to 4K: 3840 x 2160 @ 30Hz; 1920 x 1080 @ 60/50Hz, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 @ 60Hz)
1 x VGA (up to 1920 x 1080 @ 60/50Hz)
1 x CVBS / BNC output
Audio Interfaces: 1 x RCA input, 1 x RCA output; 8-channel Audio over Coax (TVI/CVI); 1-channel Two-Way Audio
Hard Drive Storage: 1 x SATA interface, supporting up to 16TB capacity
Network Bandwidth: 40 Mbps incoming (up to 56 Mbps with converted channels) / 64 Mbps outgoing
Network Interface: 1 x RJ45 10M/100M self-adaptive Ethernet
Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, ONVIF (Profile S)
Auxiliary Interfaces: 2 x USB 2.0 (Rear), 1 x RS485 (Half-duplex for PTZ)
Alarm Interfaces: 4 x Alarm Inputs, 1 x Alarm Output
Power Supply: 12V DC / 2A
Power Consumption: ≤ 8W (without HDD)
Operating Temperature: -10°C to +55°C (+14°F to +131°F)
Operating Humidity: ≤ 90% RH (non-condensing)
Certifications: NDAA Compliant, CE, FCC, UL, RoHS, WEEE
Dimensions (L x W x H): 10.24 x 8.90 x 1.83 inches
Weight: ≤ 2.01 lbs (without HDD)
