Features:
Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clock:
Extreme Performance: 2587 MHz (MSI Center)
Boost: 2572 MHz
STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications:
Graphics Processing Unit: NVIDIA GeForce RTX 5060 Ti, based on the NVIDIA Blackwell architecture.
Interface: PCI Express® Gen 5 x16 (uses x8).
Core Clocks: Up to 2587 MHz (Extreme Performance via MSI Center).
CUDA® Cores: 4608 Units.
Memory: 8GB GDDR7 with a 128-bit memory bus.
Memory Speed: 28 Gbps.

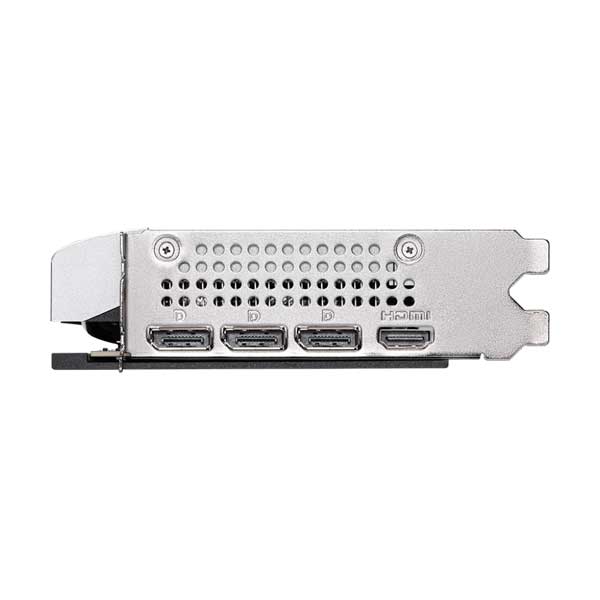

Output: Includes 3 DisplayPort (v2.1b) and 1 HDMI™ (HDMI™ 2.1b).
Power Consumption: 180 W, with an 8-pin power connector.
Recommended PSU: 600 W.
Card Dimensions (mm): 227 x 126 x 41 mm.
Weight: 573 g.
Supported APIs: DirectX 12 Ultimate, OpenGL 4.6.
Maximum Displays: 4.
G-SYNC® Technology: Yes.
Digital Maximum Resolution: 7680 x 4320.
Cooling System: VENTUS 2X PLUS features STORMFORCE Fan, heat pipes, and a reinforced backplate with vents.
Software: MSI Center and Afterburner are available.
DLSS: Supports DLSS 4.
