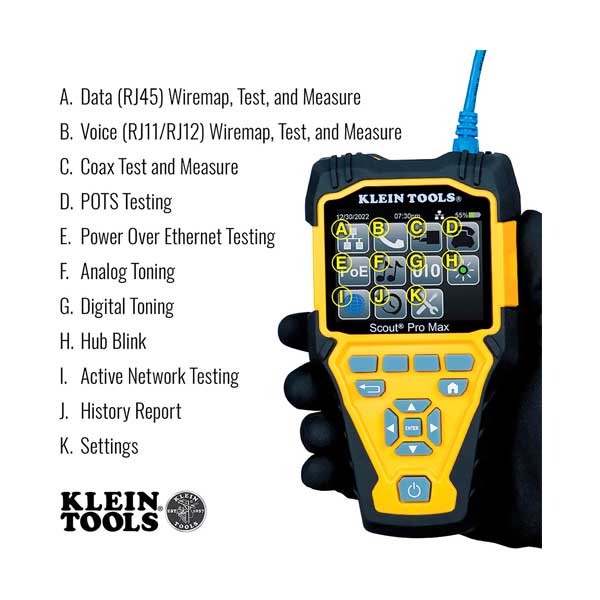

Klein Tools Scout® Pro Max Network Cable Tester With Remote Set| VDV501-770

The Klein Tools VDV501-770 Scout® Pro Max is a professional-grade network cable tester designed for comprehensive diagnostics across voice, data, video, and coaxial systems. Equipped with advanced Time Domain Reflectometry (TDR) technology, it measures cable length up to 2,000 feet and pinpoints faults with precision. The full-color backlit display, 10 Gbps speed detection, and PoE testing capabilities make it ideal for enterprise network installations. Store up to 200 test reports on-board and export via USB-C. Includes 40 location-mapping remotes—20 LanMap™ and 20 CoaxMap™—to efficiently trace connections across complex patch panels. Built tough with 6.6-foot drop protection and intuitive controls for dimly lit server rooms and job sites.

Specifications
Tester Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
Supported Cable Standards: CAT6 (Shielded/Unshielded), RJ11, RJ12, RJ45, F-Connector CoaxialMeasurement Technology: Time Domain Reflectometry (TDR)Length Measurement Range: Up to 2,000 ft (610 m)
Measurement Accuracy: ± (2% + 3 ft / 1 m) with known Velocity of Propagation (VoP)
Speed Detection: Network connection capabilities up to 10 Gbps
Display: Full-Color Backlit LCD
Memory Capacity: Internal storage for up to 200 test results
Drop Protection: 6.6 ft (2 m)
Remote Support: Supports up to 41 total remotes (includes 20 LanMap™ and 20 CoaxMap™ remotes)
Tone Generation: 5 Cadences (Analog & Digital; requires probe Cat. No. VDV500-223)
Power Source: 3 x AA Alkaline Batteries (Tester) and 1 x CR2032 (Remote)
Battery Life: 15 hours active testing; 1 year standby
Housing Material: Impact-Resistant Plastic and Metal

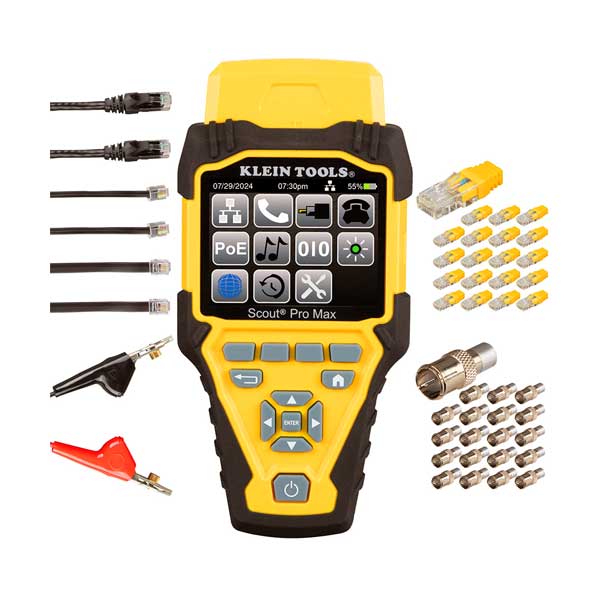

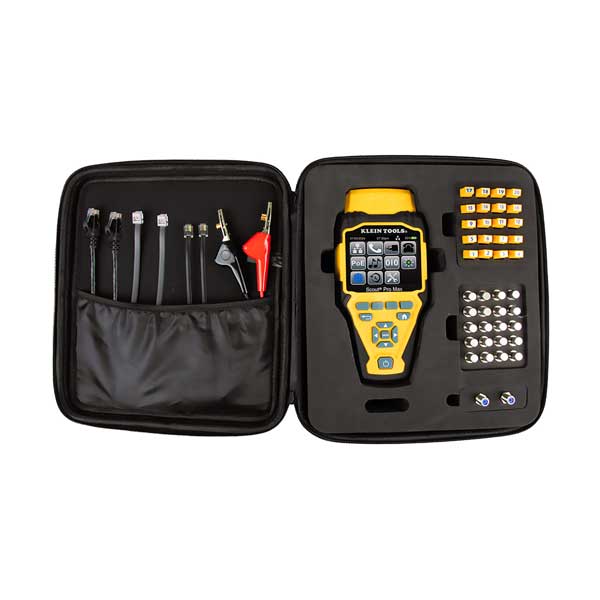

Included in the Box
Scout® Pro Max Network Cable Tester
20 x RJ45 LanMap™ Location ID Remotes
20 x F-Connector CoaxMap™ Location ID Remotes
2 x RJ45 CAT6 to RJ45 CAT6 Patch Cables
2 x RJ12 to RJ12 Modular Cables
2 x RJ11 to RJ11 Modular Cables
Female Coax-F to Angled-Bed-of-Nails Test Lead
Female F-Barrel Connector
USB-C to USB-A Data Transfer Cable
3 x AA Alkaline Batteries
1 x CR2032 Lithium Button Cell Battery
