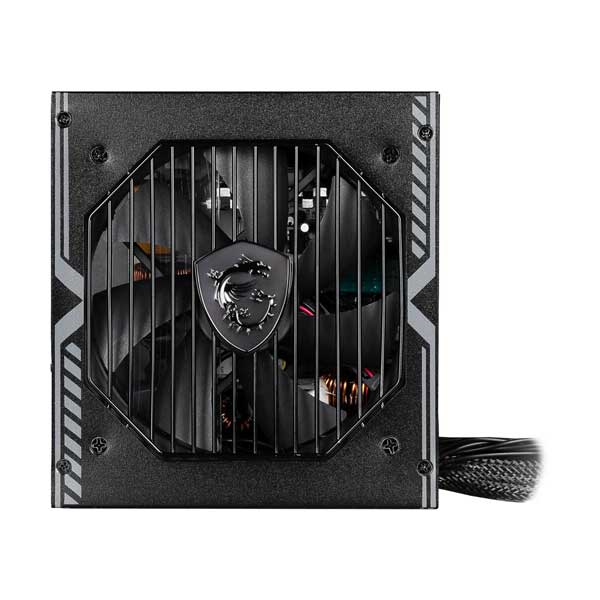

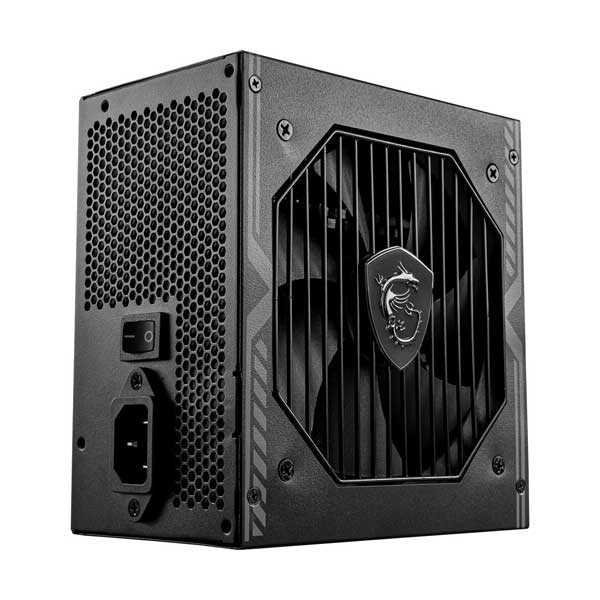

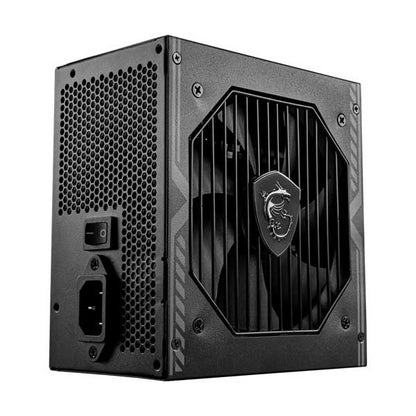

MSI MAG A750BN PCIE5 750W 80 PLUS Bronze Non-Modular Power Supply

The MSI MAG A750BN PCIE5 is a 750W 80 PLUS Bronze certified power supply designed for stable, efficient power delivery in low- to mid-range builds. Featuring a non-modular design with sleeved cables, it offers comprehensive connectivity, including a native PCIe 5.0 16-pin 12VHPWR connector for NVIDIA 40-series GPUs up to 300W. Its single +12V rail delivers reliable power across various configurations. Engineered with DC to DC circuitry and a quiet 120mm cooling fan, it ensures consistency and low noise. Compact and robust, it supports operation up to 40°C with multiple protections for system safety.

Features
PCIe 5.0 Ready: Includes a native 16-pin PCIe connector that can deliver up to 300W of power to compatible RTX 4070 series graphics cards (Note: Not compatible with the RTX 4070 Ti SUPRIM X 12G).
DC to DC Circuit Design: Offers reduced output voltage instability for more stable power delivery.
Quiet Cooling: A 120mm sleeve-bearing fan minimizes noise while providing efficient heat dissipation.
High-Temperature Operation: Engineered for reliability, allowing for safe and sustained operation at maximum load in temperatures up to 40°C.
Compact Size: The ATX form factor is 140mm long, making it easy to install in most PC cases and leaving more room for cable management.
Extensive Connectivity: A broad range of connectors provides support for multiple components.
1 x 24 pin ATX
2 x 4+4 pin EPS (CPU)
1 x 16-pin PCIe 5.0 (12VHPWR)
2 x 6+2 pin PCIe
5 x SATA
2 x Molex
1 x FDD

Specifications
Wattage: 750 Watts.
Efficiency: 80 PLUS Bronze certified (up to 85% efficiency).
Modular: Non-modular design.
PFC: Active Power Factor Correction (PFC).
Form Factor: ATX.
Fan: 120mm sleeve bearing fan.
Input Voltage: 100–240V AC.
Dimensions (D x W x H): 140mm x 150mm x 86mm (5.51 x 5.9 x 3.38 inches).
Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP).
Weight: 4.37 lbs
Warranty: 5 years
