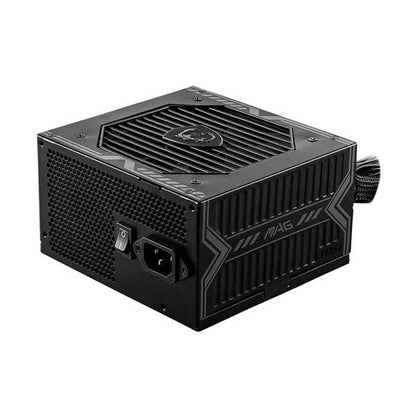

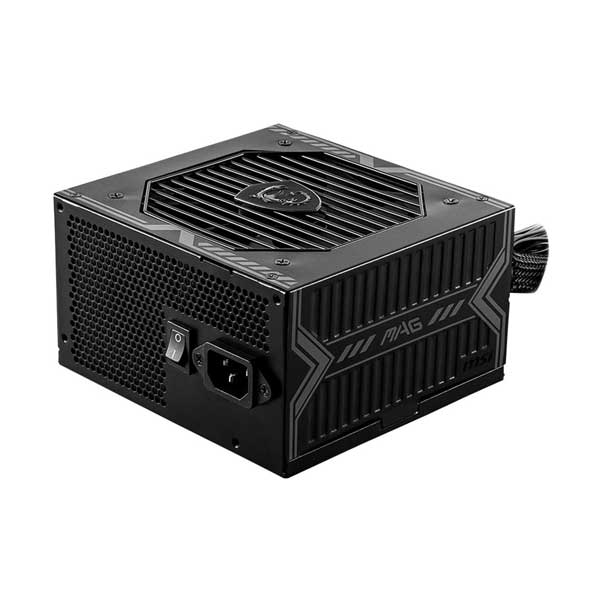

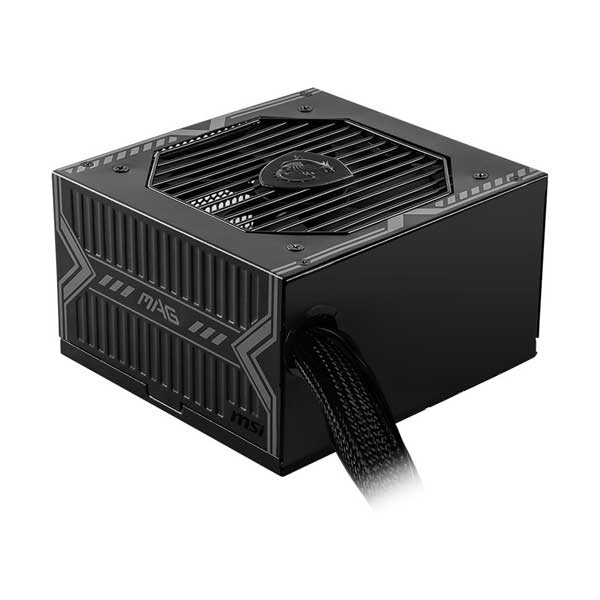

MSI MAG A650BN 650 Watt 80 Plus Bronze ATX Non-Modular Power Supply

The MSI MAG A650BN is a 650W ATX power supply featuring 80 PLUS Bronze certification for efficient energy use with minimal waste. Its DC to DC circuit design ensures stable voltage output, enhancing system reliability. Equipped with industrial-grade safeguards—including Over-Current, Over-Voltage, Over-Power, Over-Temperature, and Short-Circuit protections—it prioritizes component safety. A quiet 120mm sleeve-bearing fan delivers efficient cooling while minimizing noise. The unit supports active power factor correction to optimize electrical performance, and its non-modular layout offers straightforward connectivity. This power supply is engineered for dependable, long-term operation.

Features
80 PLUS Bronze certified: Provides high efficiency with less energy waste.
DC to DC circuit design: Enhances voltage stability for a more reliable power delivery.
Industrial-level protection: Includes protection mechanisms such as Over-Current Protection (OCP), Over-Voltage Protection (OVP), Over-Power Protection (OPP), Over-Temperature Protection (OTP), and Short-Circuit Protection (SCP).
Low-noise fan: A 120mm sleeve bearing fan provides effective cooling while keeping noise levels down.
Active PFC design: Allows for a high power factor and less reactive power.
5-year limited warranty: MSI provides a limited warranty for the unit.

Specifications
Wattage: 650W
Efficiency: 80 PLUS Bronze certified (85% efficiency)
Form Factor: ATX
PFC: Active
Modular: Non-modular
Fan: 120mm low-noise sleeve-bearing fan
Input Voltage: 100-240Vac
Input Frequency: 50/60 Hz
Dimensions (WxHxD): 150mm x 86mm x 140mm
Output Connectors:
ATX: 1x 24-pin (20+4)
EPS (CPU): 1x 8-pin (4+4)
PCI-E: 2x 8-pin (6+2)
SATA: 5x
Molex: 2x
FDD: 1x
Weight: 4.38 lbs
UPC: 824142258460
