Vertical Cable 1RMU Optical Fiber Rack-Mount Patch Enclosure | LGX | 3-Position | 267-RES01-1C1

Compact 1RMU fiber enclosure designed for high-density optical fiber distribution and patching. Accommodates up to three LGX adapter plates and terminates up to 72 fibers in a standard 19-inch rack footprint. Features a dual-direction retractable work stage for comfortable access during splicing and maintenance, dual protective doors (clear plastic front and metal rear), and rugged 16-gauge powder-coated steel construction. Integrated bend-radius protection, cable management anchor points, and grommeted entry ports ensure safe fiber routing. Supports up to two 24-fiber splice trays and is EIA-ECA-310-E compliant with adjustable mounting depth for universal rack compatibility. Ideal for data centers, telecom closets, and industrial networks requiring reliable, space-efficient fiber management.

Features
High-Density LGX Capacity: Accommodates up to three standard LGX adapter plates to support up to 72 optical fiber terminations in a compact 1U chassis.
Dual-Access Retractable Stage: Slides forward and backward for comfortable, unobstructed access during fiber splicing, connector cleaning, and maintenance.
Dual-Door Protective Design: Features a clear plastic hinged front door for quick visual port inspection and a durable hinged metal rear door for back-of-rack security (both fully removable).
Comprehensive Cable Management: Integrates grommeted cable entry knockouts, perforated anchor plates, and strength-element tie points to prevent strain on delicate patch leads.
Built-In Bend Radius Protection: Includes dedicated internal routing rings and spools that safeguard delicate fiber cores against microbends and signal loss.
Flexible Splice Expansion: Accommodates up to two 24-fiber splice trays alongside compact or standard plug-and-play cassettes.
Fast, Versatile Mounting: Engineered per EIA-ECA-310-E standards with two-level depth adjustment to fit standard 19-inch server racks and cabinets.

Specifications
Rack Space: 1 RMU (19-inch standard rack-mount, EIA-ECA-310-E compliant)
Adapter Footprint: 3 LGX-compatible adapter plate positions
Maximum Fiber Capacity: Up to 72 fibers
Splice Tray Capacity: Accommodates up to two 24-fiber splice trays
Chassis Material: 0.06 in. (1.5 mm) / 16-GA metal
Finish: Electrostatically applied black powder coating
Mounting Depth Adjustment: Two depth-level settings
Access Doors: Front clear plastic (hinged/removable); Rear metal (hinged/removable)
Removable Covers: Front and rear top covers secured with screw joints
Cable Strain Relief: Grommeted entry ports, perforated anchor plates, and screw-joint strength element anchor points
Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)
Operating Humidity: ≤ 95% RH non-condensing
Compatible Accessories:

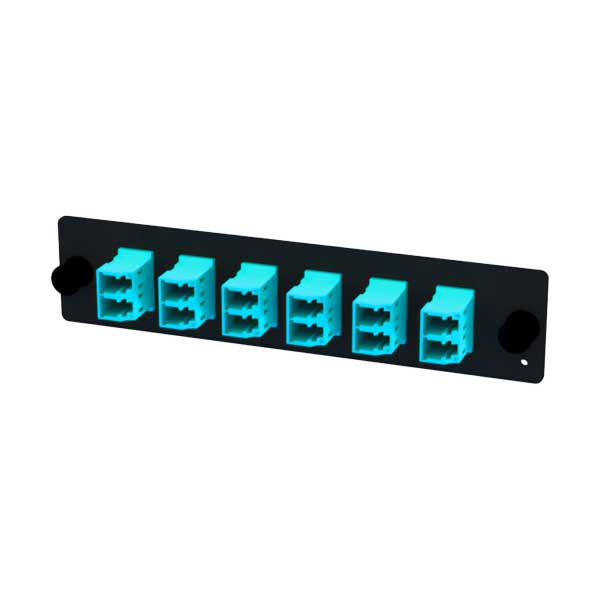

- 264-LAP Series LGX Adapter Plates
- 265-CAS01-1B200 Compact Cassettes
- 265-CAS01-2B200 Standard Cassettes
- 265-CAS10-F06A2 Cassettes
Physical Dimensions & Weight
Dimensions (L x W x H): 14.00 in. (Depth) x 19.00 in. (Flange Width) x 1.75 in. (Height)
Chassis Frame Width: 17.00 in. (433 mm)
Weight: 14.52 lbs.
