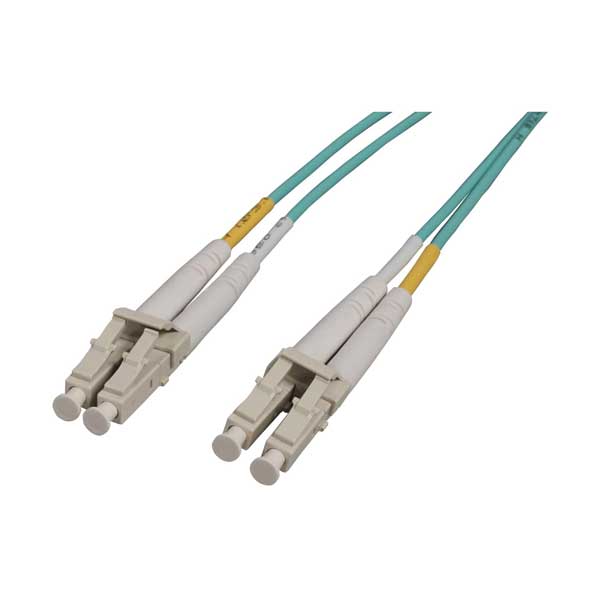

Intellinet 3m 2.0mm Duplex OFNR OM3 Multimode LC to LC UPC Fiber Optic Patch Cable - Aqua (751865)

The Intellinet 3m 2.0mm Duplex OFNR OM3 Multimode LC to LC UPC Fiber Optic Patch Cable in Aqua is designed for reliable connectivity in telecom rooms, data centers, and entrance facilities. It uses UPC connectors that minimize return loss with superior surface finish. The OM3 multimode fiber supports high-bandwidth, low-loss transmission ideal for 40G Ethernet and similar high-speed networks. Its bend-insensitive construction helps maintain signal integrity during installation and use. Manufactured from Corning ultra-pure glass fiber, this cable ensures performance excellence and longevity, backed by a lifetime warranty and included test report.

Features
Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
OM3 Multimode Fiber: Utilizes OM3 multimode fiber, offering high bandwidth and excellent performance for short to medium-range, high-speed data transmission in enterprise and data center networks.
Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.
Each cable ships with the test report included
Lifetime Warranty

Specifications
Connector type: LC UPC Duplex to LC UPC Duplex
Fiber count: 2 Fibers
Bend Radius: 45 mm
Fiber mode: Multi Mode OM3 50/125μm
Wavelength: 850/1310nm
Polarity: A (Tx) to B (Rx)
Cable outer diameter (OD): 2.0mm
Cable jacket: Riser (OFNR)
Ferrule material: Ceramic (zirconia)
Insertion loss: typical ≤0.2dB
Return loss: ≥20dB
Attenuation @ 850 / 1300 nm (dB/km): ≤ 3,2 / ≤ 0,8
Connector durability: 1000 insertion - extraction cycles min.
Operation temperature range: -20°C to +75°C
