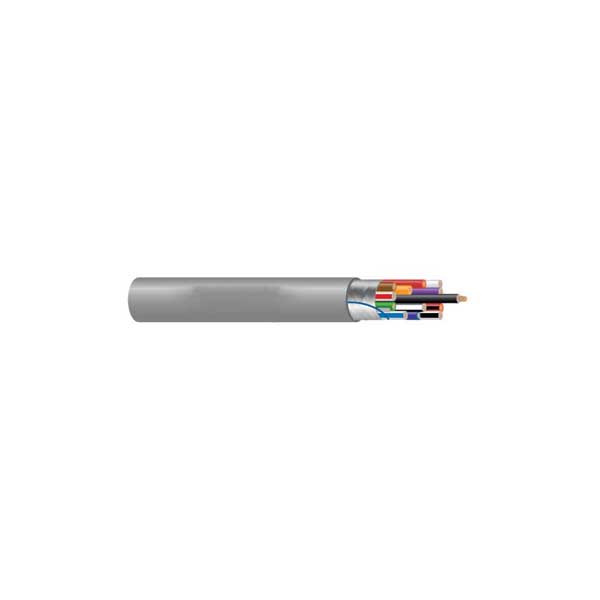

Tappan Wire & Cable 6/Conductor 7/Strand 18AWG 300V CL3R/ FPLR/ CMR/ CMG Shielded PVC Cable - 1,000ft Gray (R40611-1A)

The Tappan Wire & Cable 6/Conductor 7/Strand 18AWG 300V Shielded PVC Cable (R40611-1A) is a low-voltage riser cable designed for various applications. It features 6 18 AWG stranded copper conductors and is shielded with aluminum foil and a tinned copper drain wire for signal interference protection. This cable is compliant with NEC articles for power-limited and communication circuits and has a CL3R/CMR rating. The gray PVC jacket, ripcord for easy jacket removal, and overall aluminum/polyester foil shielding make it a versatile and reliable choice. Additional features include UL-listing and RoHS compliance, as well as a voltage rating of 300 VAC and a temperature rating of 60°C. Perfect for applications such as security systems, audio systems, intercoms, and more. Specifications: 6 conductors, 18 AWG, 7 stranded, bare copper

Features
Multi-conductor shielded construction with a riser (CL3R/CMR) rating.
Shielding consists of aluminum foil, polyester reinforced tape, and a stranded tinned copper drain wire.
Includes a ripcord for easy jacket removal.
Features a gray PVC jacket.
UL-listed for power-limited and communication circuits per NEC Articles 725 and 800.
Passes the UL 1666 Vertical Riser flame test.
Can be used in applications such as security systems, sound and audio, intercoms, public address systems, and alarm and access control circuits.

Specifications
Conductor Count: 6
Conductor Size: 18 AWG
Conductor Stranding: 7 strands
Conductor Material: Bare stranded copper
Insulation Material: PVC
Jacket Material: PVC
Jacket Color: Gray
Shielding: Overall aluminum/polyester foil shield with a tinned copper drain wire
Voltage Rating: 300 VAC
Temperature Rating: 60°C
Standard Length: 1,000 feet
Approvals:
UL 444, 13
CMR/CL3R
RoHS compliant
Resistance: 6.92 ohms D.C. per 1,000 ft at 68°F max
Nominal Outer Diameter: 0.23 inches
Weight: 48lbs/1000ft
