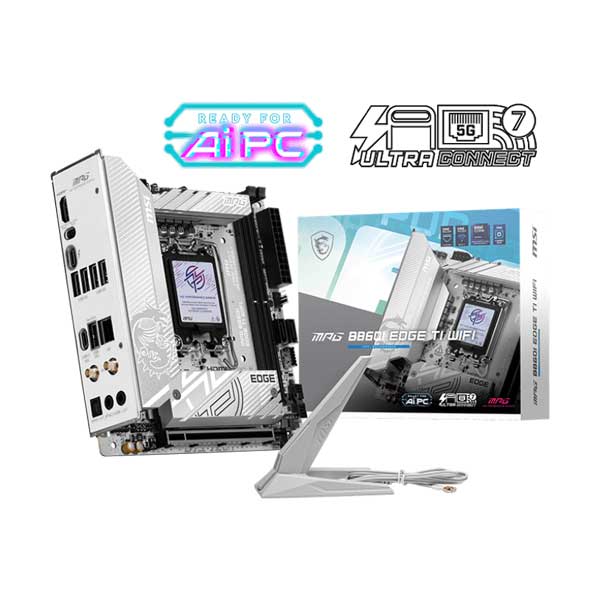

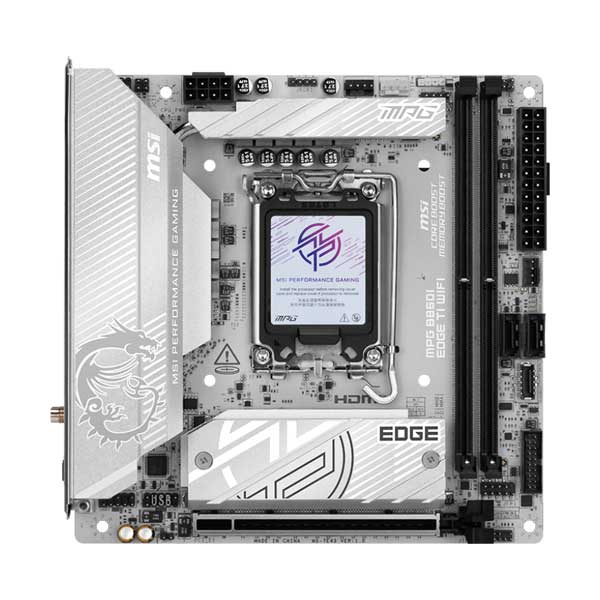

MSI MPG B860I EDGE TI WIFI Gaming Desktop Motherboard - Intel B860 Chipset - Mini ITX

The MSI MPG B860I EDGE TI WIFI is a compact mini-ITX motherboard designed for gaming enthusiasts and demanding users. Powered by the Intel B860 chipset, it supports Intel Core Ultra Series 2 (Arrow Lake) processors via the LGA 1851 socket. This board features a robust 8+1+1+1 phase power design, PCIe 5.0 x16 expansion, and dual M.2 slots for ultra-fast storage. Advanced connectivity is provided through Thunderbolt 4 ports, Killer Wi-Fi 7, and 5G LAN. It supports DDR5 memory exceeding 8600 MT/s (OC) and includes a sleek white aesthetic, making it an excellent choice for compact, high-performance builds.

Features
Support for Intel Core Ultra Processors: Designed for Intel Core Ultra Series 2 (Arrow Lake) processors with an LGA 1851 socket.
Lightning-fast Connectivity: Includes Thunderbolt 4, Killer 5G LAN, and the latest Wi-Fi 7 for a superior networking experience.
High-speed Storage: Features both PCIe 5.0 and PCIe 4.0 M.2 slots for blazingly fast SSD performance.
Robust Power Delivery: Built with a DIRECT 8+1+1+1 power phase design to ensure stable and reliable performance.
Modern Aesthetics: Designed with a striking white finish.
Advanced Memory Support: Supports high-speed DDR5 memory, including speeds over 8600+(OC).
Compact Form Factor: The mini-ITX size is ideal for small form factor (SFF) PC builds without compromising performance.

Specifications
Form Factor: Mini-ITX
Socket: LGA 1851
Chipset: Intel B860
CPU Support: Intel Core Ultra Processors (Series 2)
Memory: 2x DDR5 UDIMM slots, max 128GB, up to 8600+ MT/s (OC)
Expansion Slots: 1x PCIe 5.0 x16 slot
Storage: 2x M.2 slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4/SATA), 2x SATA 6Gb/s ports
LAN: Intel Killer E5000B 5G LAN
Wireless: Intel Killer BE1750x Wi-Fi 7 and Bluetooth 5.4

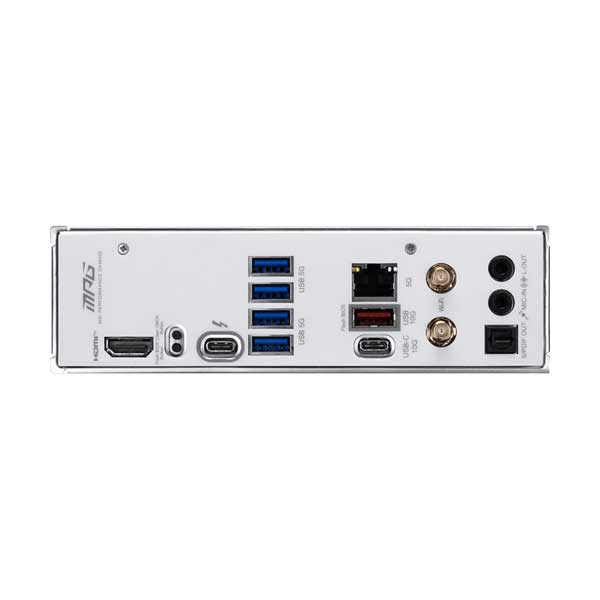

Rear Ports: Thunderbolt 4 (USB4), HDMI 2.1, 5Gbps and 10Gbps USB Type-A/C, 5G LAN, Wi-Fi/Bluetooth, Audio connectors, Clear CMOS button, Flash BIOS button
Audio: Realtek ALC897 Codec, 7.1-Channel HD Audio
