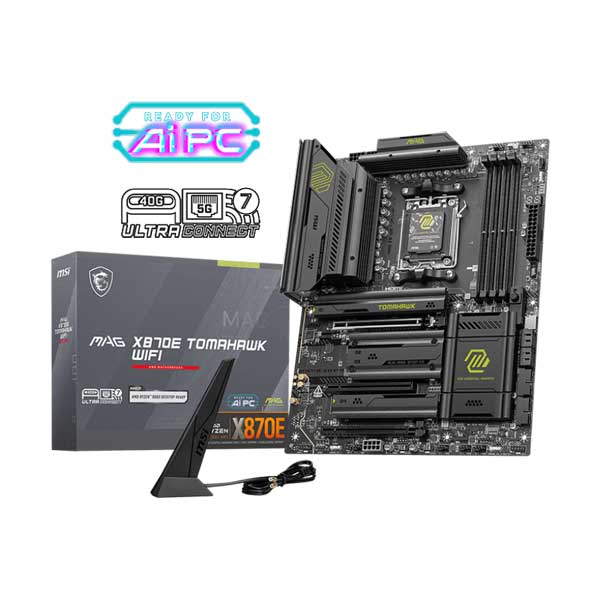

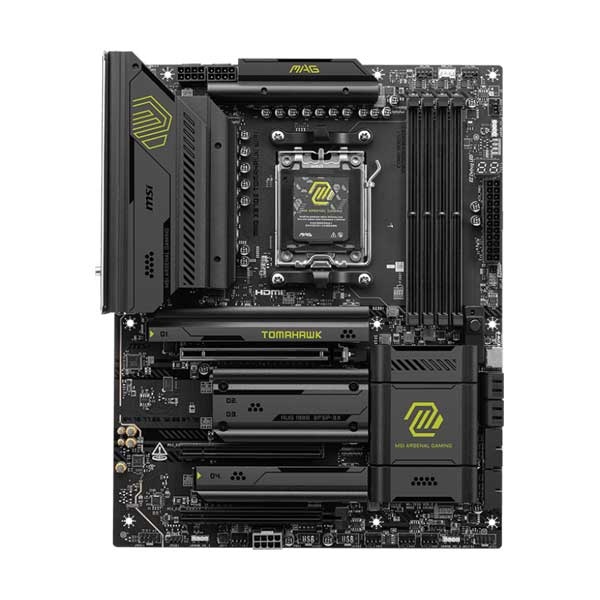

MSI MAG X870E TOMAHAWK WIFI 7 Motherboard | AMD AM5 | 5G LAN | Dual USB4

The MSI MAG X870E TOMAHAWK WIFI 7 is built for high-performance computing on the AMD AM5 platform. Its 14+2+1 Duet Rail Power System with 80A Smart Power Stages delivers stable power to the latest Ryzen processors, while quad M.2 slots—including two PCIe 5.0 drives—accommodate next-generation storage speeds. DDR5 memory support up to 8400+ MT/s ensures rapid data access for demanding workloads. Dual USB4 ports provide 40Gbps connectivity with 8K display capability, complemented by Wi-Fi 7 technology offering 5.8Gbps wireless speeds and 5G LAN for wired performance. The EZ DIY design simplifies assembly with tool-less M.2 installation and magnetic antenna placement. Audio Boost 5 with Realtek ALC4080 codec delivers immersive 7.1-channel sound, while the extended heatsink design maintains optimal thermal performance under load.

Features

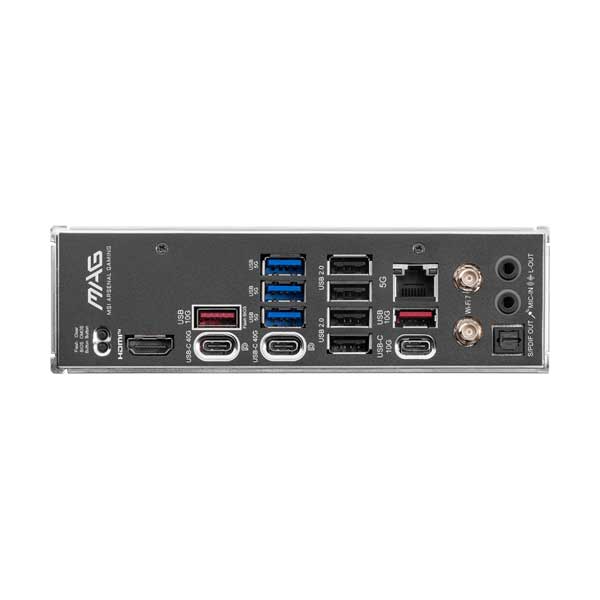

Lightning USB 40G: Dual built-in USB4 ports providing up to 40Gbps transmission speeds and 8K display support.
Wi-Fi 7 Solution: The latest wireless standard featuring 320MHz channels and speeds up to 5.8Gbps.
EZ DIY Design: Includes EZ PCIe Release, tool-less EZ M.2 Shield Frozr II, and a magnetic EZ Antenna for a seamless building experience.
5G LAN: Premium onboard networking for high-speed, low-latency data transmission.
Audio Boost 5: High-definition 7.1-channel audio powered by the Realtek ALC4080 codec for immersive sound.

Specifications
Chipset: AMD X870E
Socket: AMD AM5 (Supports Ryzen 9000/8000/7000 Series)
Memory: 4x DDR5 Slots, Max 256GB, Supports up to 8400+ MT/s (OC)
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 3.0 x1
Storage: 2x M.2 Gen5 x4, 2x M.2 Gen4 x4, 4x SATA 6Gb/s ports
Form Factor: ATX (304.8mm x 243.84mm)
Weight: 4.96 lbs
