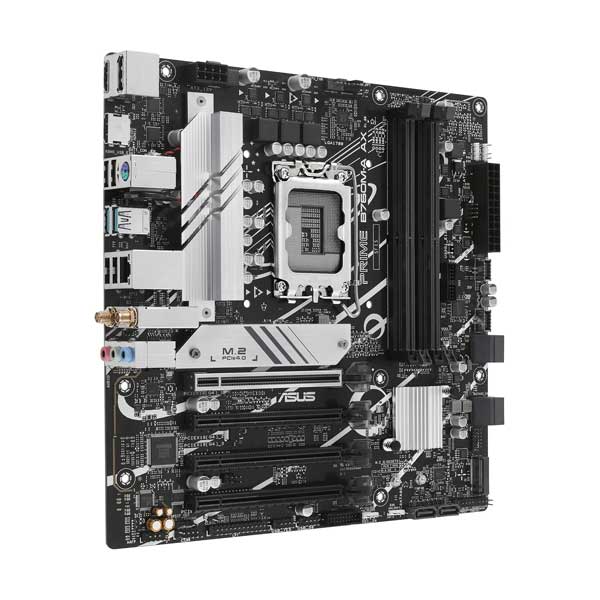

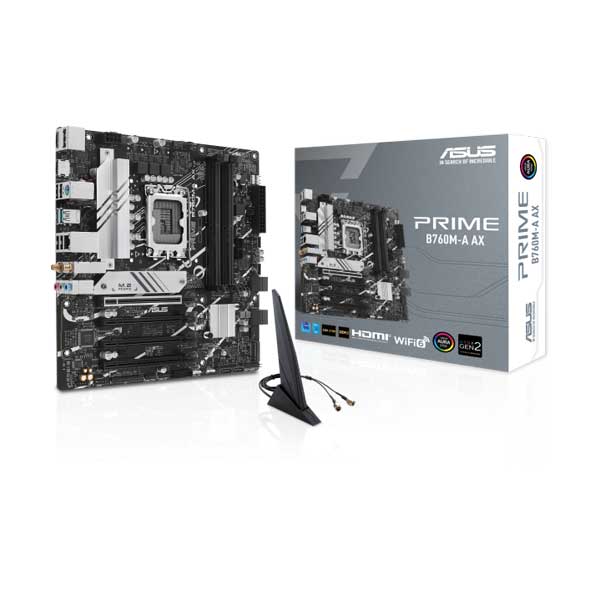

ASUS PRIME B760M-A AX Intel LGA 1700 Micro-ATX Motherboard

The ASUS PRIME B760M-A AX is a micro-ATX motherboard designed to support Intel’s 12th, 13th, and 14th Gen processors via the LGA 1700 socket. It caters to both everyday users and PC builders by providing a durable power design, efficient cooling solutions, and advanced tuning features. This board offers high-speed connectivity with PCIe 4.0, dual M.2 slots for fast storage, and integrated Wi-Fi 6. It also incorporates ASUS’s OptiMem II technology to enhance DDR5 memory stability and overclocking capacity. Additional features include Aura Sync RGB lighting, comprehensive hardware protection, and extensive I/O options for versatile system builds.

Features:
Intel LGA 1700 Socket: Ready for 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron processors.
Ultrafast Connectivity: Includes PCIe 4.0 support, two M.2 slots (up to 64 Gbps), Realtek 2.5Gb Ethernet, Wi-Fi 6, and a front USB 3.2 Gen 1 Type-C port.
Comprehensive Cooling: Features VRM, M.2, and PCH heatsinks, plus hybrid fan headers and Fan Xpert 2+ software for intelligent fan control.
Enhanced Memory: Equipped with ASUS Enhanced Memory Profile II (AEMP II) and OptiMem II for improved DDR5 memory stability and overclocking.
Aura Sync RGB Lighting: Includes onboard Addressable Gen 2 headers and an Aura RGB header, allowing for synchronized lighting effects with other compatible hardware.
ASUS 5X Protection III: Multiple hardware safeguards, including DIGI+ VRM, LANGuard, and overvoltage protection, ensure long-term durability.

Specifications:
Form Factor: micro-ATX (9.6 x 9.6 inches / 24.4 x 24.4 cm)
Chipset: Intel B760
CPU Socket: LGA 1700
Memory: 4 x DIMM slots, max. 128GB, DDR5 memory up to 7200+(OC) MHz
Storage: 2 x M.2 slots (PCIe 4.0 x4 mode) and 6 x SATA 6Gb/s ports
Expansion Slots: 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (x4 mode), and 2 x PCIe 4.0 x16 slots (x1 mode)
Wireless: Wi-Fi 6 (802.11ax) and Bluetooth v5.2
LAN: 1 x Realtek 2.5Gb Ethernet
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

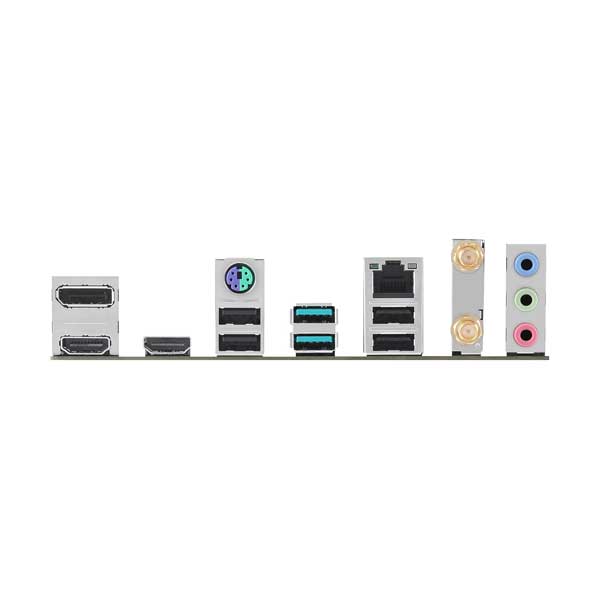

Back I/O Ports:
2 x USB 3.2 Gen 2 Type-A ports
4 x USB 2.0 Type-A ports
2 x HDMI ports
1 x DisplayPort
1 x PS/2 keyboard/mouse combo port
1 x Realtek 2.5Gb Ethernet port
1 x Wi-Fi Module
3 x Audio jacks
Weight: 2 lbs (0.907 kg)
