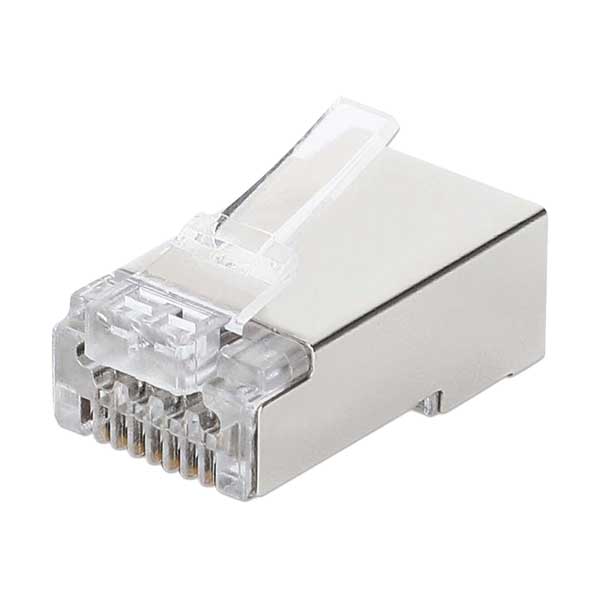

Intellinet CAT6a FastCrimp 10G Shielded RJ45 Modular Plugs - 100-Pack (791366)

Intellinet Network Solutions introduces their innovative CAT6a FastCrimp 10G Shielded RJ45 Modular Plugs - 100-Pack (791366). This product is perfect for quickly and easily terminating RJ45 cables, with its intuitive design allowing for clean connections and ease of use. Made from premium materials, this plug is compliant with industry standards and boasts gold-plated contacts for corrosion-free connections. Its three-prong terminal ensures compatibility with both solid and stranded wire, while its color-coding aligns with T568A and T568B standards. Get the perfect crimp every time with Intellinet's FastCrimp Modular Plug Crimping Tool (#790352). With a lifetime warranty and convenient jar packaging, this product is a must-have for any professional installer.

Features:
• Makes terminations fast and easy by feeding the wires through the plug and out the front
• Cat6a STP 360° shielded premium RJ45 plug for 10G and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Compliant with ANSI/TIA-568-D, ISO/IEC 11801 and IEC 60603-7-51
• Three-prong terminal for solid and stranded wire with 23 AWG
• Gold-plated contacts for corrosion-free connections
• Suitable for extreme operating temperatures of -40 to 185ºF (-40 to 85ºC)
• Compatible and color-coded with T568A and T568B
• Fits round cable
• Standard 8P8C design, compatible with all network RJ45 connections
• Use with Intellinet FastCrimp Modular Plug Crimping Tool (#790352)
• Jar packaging for convenient stock-keeping
• Lifetime warranty

Standards and Certifications
• RoHS
• REACH
• ISO/IEC 11801
• IEC 60603-7-51
• Cat5 (ANSI/TIA/EIA-568-D)
• Cat5e (TIA/EIA-568-D)
• Cat6 (ANSI/TIA-568-D)
• Cat6a (ANSI/TIA-568-D)

Specifications:
• Supports transfer speeds up to 10 Gbps
• Max. operating frequency: 500 MHz
• Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Insertion force: 30N max.
• Insulator: polycarbonate
• Contact plating: 15 micro-inch gold
• IDC: brass
• Insulation resistance: ≥ 500 MOhm
• Dielectric withstanding voltage: 500 V AC
• Termination resistance: ≤35 MOhm
• Current rating: 1.5 A, 125 V AC
• Operating temperature: -40 to 185°F (-40 to 85°C)
• Storage temperature: -40 to 185°F (-40 to 85°C)
• Operating humidity (non-condensing): 10 - 90% RH
• Dimensions per plug (L x W x H): 0.5 x 0.9 x 0.5 in. (11.6 x 22.6 x 12.8 mm)
• Net weight total: 0.53 lbs. (240 g)
• Gross weight total: 0.57 lbs. (260 g)
