LTS LTN8716D-P16N Platinum Professional Plus Level 16 Channel 4K NVR 1U

SKU: LTN8716D-P16N
MFR#:
LTN8716D-P16N
$439.95
$439.95

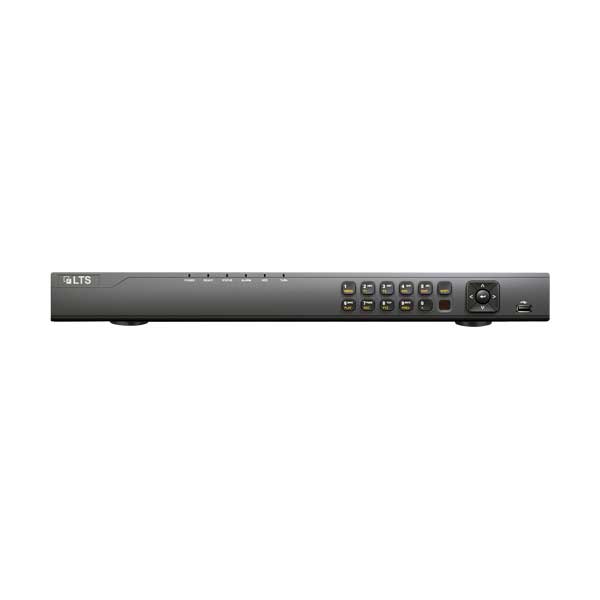

LT SecurityLTS LTN8708K-P8 8MP 8 Channel NVR
LTN8708K - P8 - Altex Computers & Electronics
PN1A - 16X16 - 2NH/4TB - Altex Computers & Electronics
InVidTechInVidTech PN1A-16X16-2NH/4TB 16-Channel 8MP 4K NVR with 4TB Storage
LTN8716D - P16N - Altex Computers & Electronics
$439.95
$439.95
The LT Security LTN8716D-P16N provides comprehensive video surveillance capabilities with up to 16-ch IP camera inputs, H.265+/H.264+ compression, and MD2.0/VCA Human and Vehicle Detection. Its incoming bandwidth of up to 160 Mbps and up to 12 MP decoding capacity ensure a reliable, high-quality recording. With the facial recognition and smart search/playback features, you can quickly and accurately identify the important details.
Specifications
Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance: 1-ch human face capture
Face Picture Comparison: 4-ch face picture comparison alarm
Motion Detection 2.0 Human/Vehicle Analysis: 16-ch
IP Video Input: 16-ch
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 160 Mbps
HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode: HDMI/VGA independent output
CVBS Output: N/A
Audio Output: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio: 1-ch, RCA (Linear, 1 KΩ)
Decoding Format: H.265/H.265+/H.264+/H.264
Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 16-ch
Decoding Capability: NVR MD2.0/VCA on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) / NVR MD2.0/VCA off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
Remote Connection: 128
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP,HTTP, HTTPS
Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 80 W
Standard: IEEE 802.3af/at
SATA: 2 SATA interfaces
Capacity: Up to 10 TB capacity for each HDD
USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out: 4/1
Power Supply: 48 VDC, 2.5 A
Consumption: ≤ 15 W (without HDD and PoE off)
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
Weight: ≤ 3 kg (without HDD, 6.6 lb.)
Certification

FCC: Part 15 Subpart B, ANSI C63.4-2014
CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
